Solis S6-GC100K 100 kW three-phase grid-tied inverter, USB version without AFCI, with 10 MPPTs / 20 PV inputs, 160 to 1,000 V MPPT range, 180 V start-up voltage and IP66 protection. Includes an integrated DC switch and Type II surge protection on the DC and AC sides. Maximum input current of 42 A / 36 A depending on the input group. Dimensions: 1,014×567×345 mm. Weight: 96 kg. Warranty: 5 years. Solis code: 024301110034.

Solis S5-GR3P15K 15 kW three-phase grid-tied inverter with 2 MPPTs / 4 PV inputs, 160 to 1,000 V MPPT range, 180 V start-up voltage, maximum current of 32 A per MPPT and IP66 protection. Dimensions: 310×563×219 mm. Weight: 19.5 kg. Warranty: 5 years. Includes DC switch, MOV surge protection and 4-pin connection. Solis code: 021903230023.

Solis-S5-GC40K-DC (4 MPPT)

1100V three-phase inverter
Maximum input current: 32A
Certified 0 injection
Overvoltage, short circuit, output overcurrent and DC reverse polarity protection
Standard 5-year warranty extendable up to 20 years

Solis S5-GR3P10K 10 kW three-phase grid-tied inverter with 2 MPPTs / 2 PV inputs, 160 to 1,000 V MPPT range, 180 V start-up voltage, maximum current of 16 A per MPPT and IP66 protection. Dimensions: 310×563×219 mm. Weight: 17.6 kg. Warranty: 5 years. Includes DC switch, MOV surge protection and 4-pin connection. Solis code: 021903230020.

Connector: MC4
EVO2
Cable Length:
-1.40M/+1.40M

Maximum Voltage: 1500 V
Cable diameter: 5.5 - 9mm
Cable Section: 4 -6 mm2

Maximum Voltage: 1500 V
Cable diameter: 5.5 - 9mm
Cable Section: 4 -6 mm2

• Maximum precision of 1% in power measurement for exact control of consumption, generation and energy optimization
• Plug & play integration with Sigenergy systems via Modbus, without additional configuration
• Real-time monitoring with data refresh every 100ms for instant response
• Versatile installation: direct connection up to 100A or with external current transformers (CT)

Sigen Power Sensor integrates seamlessly with Sigenergy devices, with no configuration required.
This power sensor is part of SigenStor's 5-in-1 energy storage system.
Sigenergy's ESS seamlessly integrates the PV inverter, battery power conversion system (PCS), EV DC charger for electric vehicles, battery pack and energy management system (EMS).

Sigen Power Sensor integrates seamlessly with Sigenergy devices, with no configuration required.
This power sensor is part of SigenStor's 5-in-1 energy storage system.
Sigenergy's ESS seamlessly integrates PV inverter, battery power conversion system (PCS), DC EV charger for electric vehicles, battery pack and energy management system (EMS).

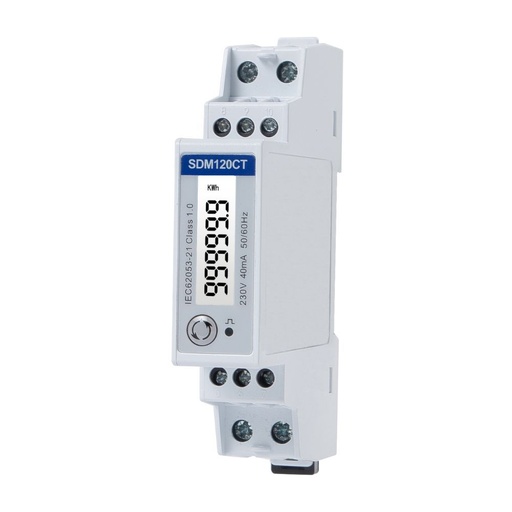

• 1% accuracy in power detection for exact control
• 100A single-phase direct connection with built-in CT
• Modbus RTU communication via RS485
• Supports export/import limitations and prepared for AI evolution

Trina 410 W TSM-DEG15MC.20(II)-Cablu BIFACIAL 30 cm.

Sigen Sensor TP-DH-Direct (1426000003)

Stops power losses
Prevents the PID effect
Measures insulation resistance.
IP56
MC4 connection
Output for 2 MPPT, chains up to 1000V with common positive

IP65
1000V DC 250A DC Switch
1000V DC 30A DC fuse holder
1000V DC 20A DC fuse
1000V DC 40kA DC SPD

Openable transformers measuring 1000/5

Modbus three-phase current meter

SMARTSOLAR MPPT 250/100-TR VE.CAN

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / UAC1.0 / 1.0 kVDC 1.5 / 1.5 kV
Weather and UV resistance

Compatible with Victron and Huawei L1
