Radiation

Radiación

Para este tipo de factor se han desarrollado sensores que registran con precisión las desviaciones entre la producción  de potencia posible y real y proporcionar cifras importantes en cuanto a la calidad de toda la planta fotovoltaica. El dispositivo en el momento que detecta una desviación del valor de referencia con la producción actual, se genera un mensaje de error.

Consúltanos para poder darte el soporte e información adecuado de acuerdo a cada una de tus necesidades, con los sensores de alta calidad e incomparable servicio con los que contamos en nuestra tienda web.

Odoo • Texto e imagen


Si-RS485TC-2T-V-MB (IMT) irradiation sensor
With external voltage supply 12 to 28 VDC, 3 m cable, integrated microprocessor, active temperature compensation, integrated temperature measurement on RS485 interface, with sockets for an external temperature sensor (Pt1000) and an external wind speed sensor (connectors not included), protocol: MODBUS

Llega en 1 semana!

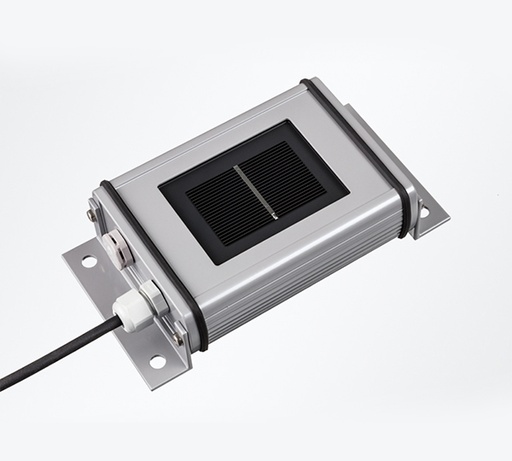

SI-RS485TC-2T-MB (IMT) irradiation sensor
With external 12 to 28 VDC power supply, 3 m connection cable, integrated microprocessor, active temperature compensation, integrated measurement of calibrated solar cell temperature and an RS485 interface, protocol: MODBUS, with permanently connected external ambient temperature sensor (Pt1000, cable length 3 m)
Only 1 Units left in stock.

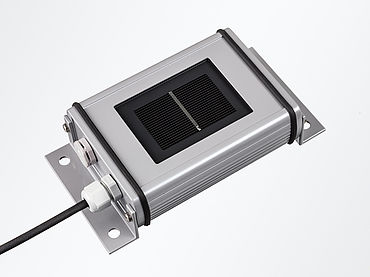

SI-I-420TC-T (IMT) irradiation sensor
Analog irradiance sensor with 4-20 mA output compatible with photovoltaic system monitoring systems such as SMA (via Moxa), SolarMax, etc.:

Llega en 1 semana!

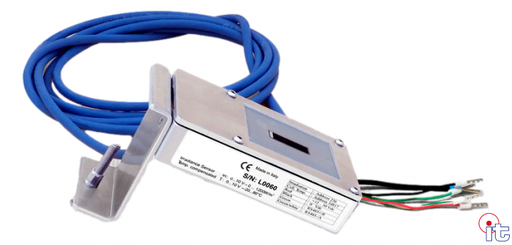

LM5-485 PRO irradiation sensor
Digital Radiation Sensor with LAMINATED solar cell with SOLAR GLASS and with the same elements as the PV module. Output in RS485 Modbus, Output: Non-temperature compensated irradiation, Cell temperature. Complete with mounting bracket. Summary. ±5.5% (±2.5% at STC); Temperature precision. ± 2 ° C. Cable 2.5m. Loose pins.

Llega en 1 semana!

Irradiation sensor Si-RS485-TC-T-MB (Meteocontrol)
The SI-RS485TC-T is used to record the intensity of solar irradiance.
In addition, it can also record the temperature of the measuring cell module.

Supply voltage:
24 V DC (12...28 V DC)
Current consumption:
typical 35 mA
Galvanic isolation:
1000 V between power supply and RS485 bus
Current measurement shunt:
0.1Ω (TK = 30ppm/K)
Measuring range:
0… 1400 W/m²
cable length: 3m

Llega en 1 semana!
