With external voltage supply 12 to 28 VDC, 3 m cable, integrated microprocessor, active temperature compensation, integrated temperature measurement on RS485 interface, with sockets for an external temperature sensor (Pt1000) and an external wind speed sensor (connectors not included), protocol: MODBUS

With external 12 to 28 VDC power supply, 3 m connection cable, integrated microprocessor, active temperature compensation, integrated measurement of calibrated solar cell temperature and an RS485 interface, protocol: MODBUS, with permanently connected external ambient temperature sensor (Pt1000, cable length 3 m)

Analog irradiance sensor with 4-20 mA output compatible with photovoltaic system monitoring systems such as SMA (via Moxa), SolarMax, etc.:

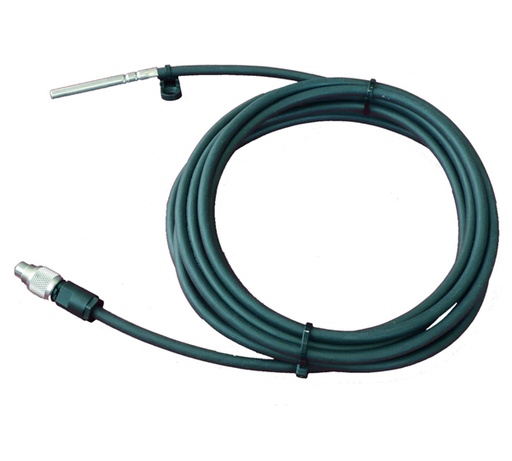

Ambient temperature sensor to connect to Si-RS485TC-2T-v, Pt1000 class A, incl. 3 m cable and plug-in connector (IP67)

Digital Radiation Sensor with LAMINATED solar cell with SOLAR GLASS and with the same elements as the PV module. Output in RS485 Modbus, Output: Non-temperature compensated irradiation, Cell temperature. Complete with mounting bracket. Summary. ±5.5% (±2.5% at STC); Temperature precision. ± 2 ° C. Cable 2.5m. Loose pins.

The SI-RS485TC-T is used to record the intensity of solar irradiance.
In addition, it can also record the temperature of the measuring cell module.

Supply voltage:
24 V DC (12...28 V DC)
Current consumption:
typical 35 mA
Galvanic isolation:
1000 V between power supply and RS485 bus
Current measurement shunt:
0.1Ω (TK = 30ppm/K)
Measuring range:
0… 1400 W/m²
cable length: 3m

Modbus irradiance sensors are designed for professional use in industrial, commercial and photovoltaic plants.

The irradiance sensor works as a concentrator for several sensors. All measured weather data is transmitted to the data loggers and receiving units via a 2-wire RS485 bus with Modbus RTU protocol.

- Class A compliance.
- Quick and easy installation.
- Similar structure with photovoltaic panels.
- Free software update.
- Compatible with SunSpec (for Modbus RTU).
- Remote configuration service.
- 5 years warranty.

It is a two-axis static ultrasonic anemometer used to make accurate measurements of wind speed and direction under all environmental conditions. It is capable of measuring wind speeds of up to 85 m/s without losing precision.

It has a heating option for quick defrosting. A model with an anodized aluminum alloy casing with anti-corrosion coating is available. This feature allows the instrument to be used even in particularly aggressive environments. The anemometer meets the requirements of MIL-STD-810G Method 509.6 (salt spray corrosion test). Its high immunity to electromagnetic interference makes it suitable for measurements in electrically noisy environments.

All measured weather data is transferred to the data loggers and receiving units via a 2-wire RS485 bus with Modbus RTU protocol. This sensor is also equipped with two analog outputs for wind speed and direction, factory configurable within 4-20 mA (standard), 0…1 V, 0…5 V or 0…10 V (to be specified when ordering).
