What differentiates the Trina references in the catalogue?
Format, power, finish, construction, electrical parameters and mechanical conditions vary. Always compare the full code and its current data sheet.
Trina
Technical brand selection
How to choose a Trina panel for each project
The Trina catalogue includes references with different formats, power ratings, finishes and configurations. Professional selection must start from the full code and review dimensions, weight, Vmpp, Voc, Impp, Isc, temperature coefficients, loads, clamping zones, connectors, strings, mounting, documentation and logistics.
Visible references and familiesVertex SDEG15MC.20NEG18R.28 / .25DE19 / DE19RNEG19RC.20NEG21C.20
Over 20 years of experienceProfessional catalogue and supportValidation against the exact reference
Comparison of visible Trina families
| Family or reference | Selection use | Validate before quoting |
|---|---|---|

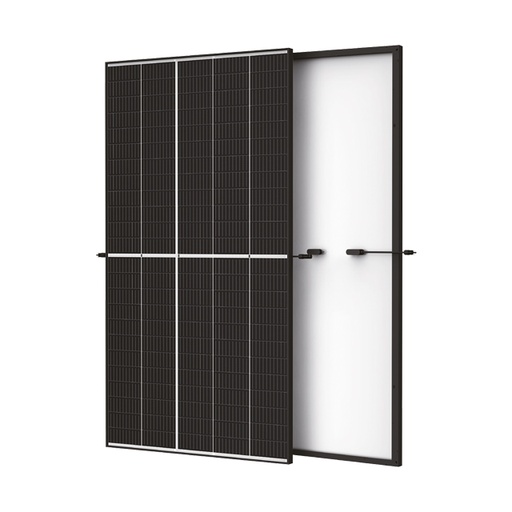

| Family or referenceVertex S · TSM-DE09R.08 | Selection useCompact black-frame reference in the current catalogue. | Validate before quotingDimensions, weight, Vmpp, Voc, Impp, Isc, clamping and finish of the exact model. |

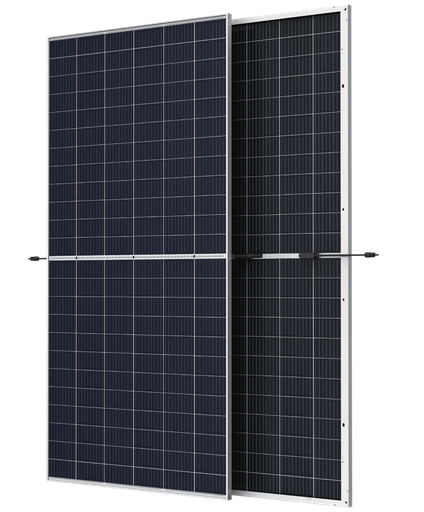

| Family or referenceTSM-DEG15MC.20(II) | Selection useReference identified as bifacial in its current public name. | Validate before quotingExact data sheet, rear-side design, cabling, connectors, loads and installation conditions. |

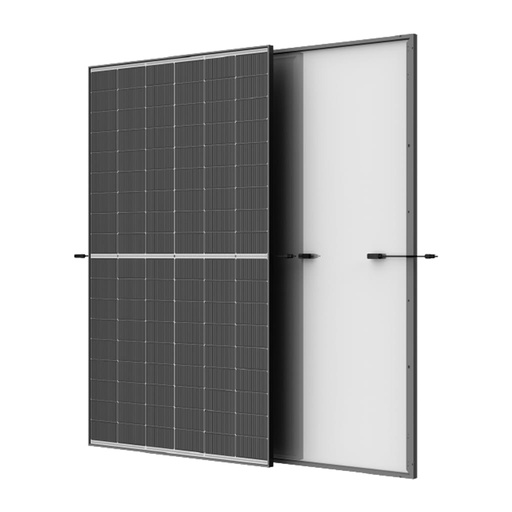

| Family or referenceNEG18R.28 / NEG18R.25 | Selection useSeveral power ratings and finishes appear in the catalogue, including Full Black. | Validate before quotingFull suffix, power, dimensions, current, finish, packaging and current document. |
| Family or referenceDE19 / DE19R | Selection useDistinct references that must be selected by full model, not by power alone. | Validate before quotingFormat, weight, electrical parameters, loads, connectors, mounting and logistics. |

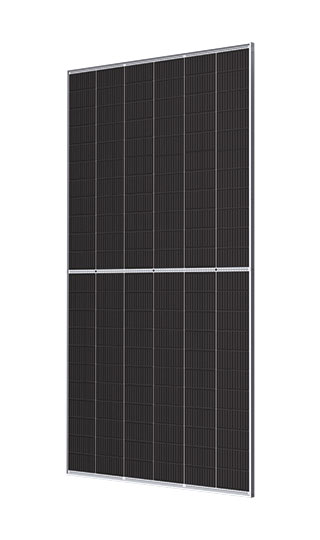

| Family or referenceNEG19RC.20 | Selection useLarge-format bifacial references in the current catalogue. | Validate before quotingMPPT current, string length, handling, loads, albedo and connectors. |

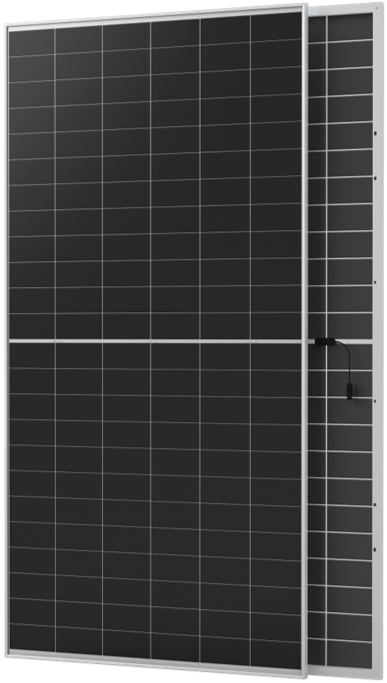

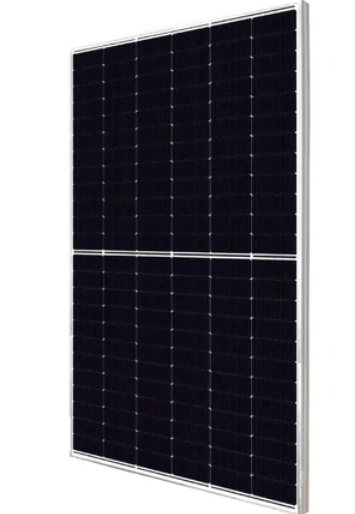

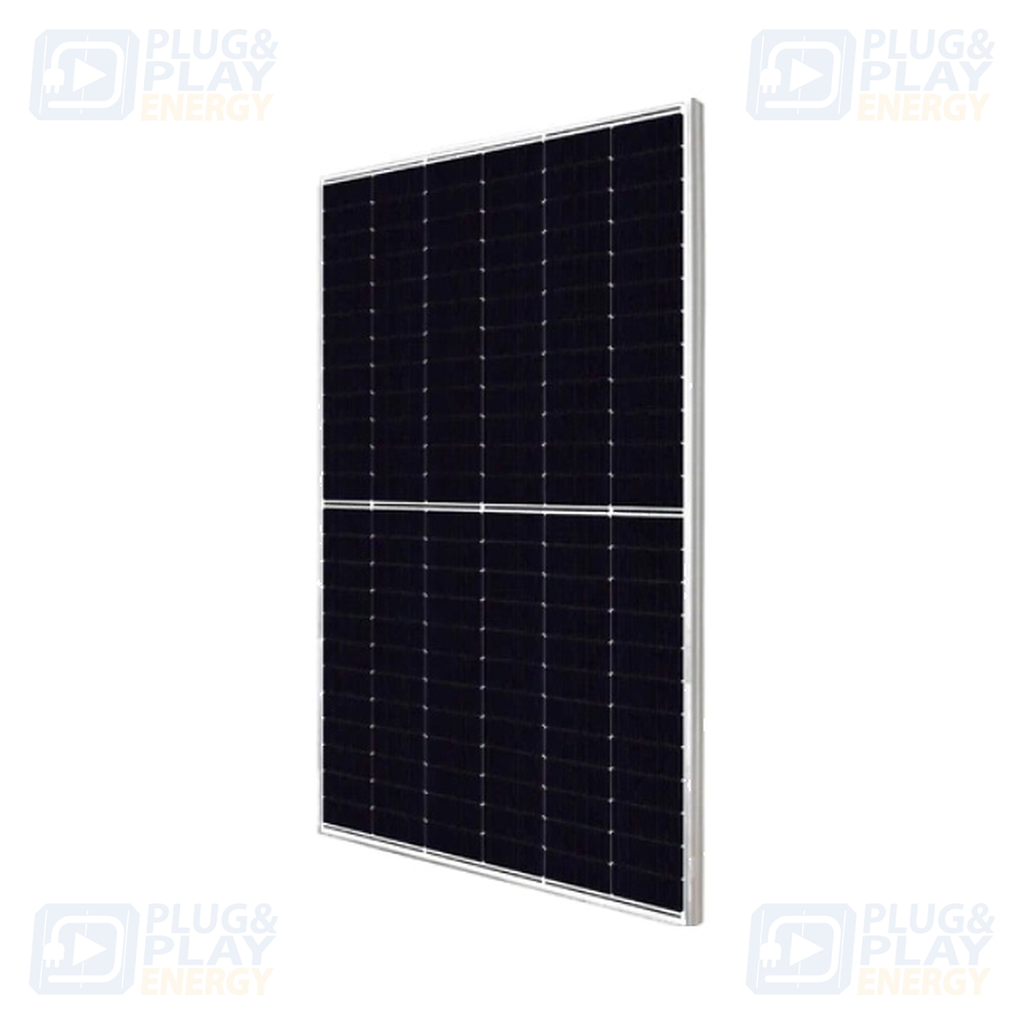

| Family or referenceTSM-NEG21C.20 | Selection useHigh-power reference identified as N-type bifacial in the catalogue. | Validate before quotingFormat and weight, loads, transport, lifting, mounting, voltage, current and string design. |
Are two Trina panels with similar power interchangeable?
It must not be assumed. Dimensions, voltage, current, connectors, clamping zones, bifaciality and warranty conditions may differ.
How is a string designed with Trina modules?
Using temperature-corrected Voc and Vmpp, Impp and Isc, inverter voltage and current limits, MPPT window and site extremes.
Does bifaciality guarantee a specific gain?
No. It depends on albedo, height, spacing, rear shading, mounting, geometry and actual array operation.
What must be checked when using higher-current modules?
Input and MPPT current limits, parallel strings, connectors, cabling, protection and margins defined by the inverter manufacturer.
What data does PnP need to recommend a Trina reference?
Application, area, location, target power, inverter, string design, mounting, dimension or weight limits, finish, logistics and lead time.
Validate the Trina reference before finalising the quote
We help cross-check the data sheet, strings, inverter, mounting, loads and logistics.
Updated 12 September 2026. The families cited come from the current public catalogue; final selection is validated against the current reference and documentation.
