Tu tienda de energía solar fotovoltaica

Sigen Battery 8 kWh with LED

Whether for home or business, its unique modular and stackable design allows it to be truly scalable on demand and flexible in configuration.

For commercial applications, you can connect multiple SigenStors in parallel to meet your capacity needs.

1-6 stackable battery modules

Capacity range from 5-48 KWh per stack

High energy density 110wh/kg

The eBick Ultra 175 is Cegasa's answer to installers looking for a pre-installed, self-managing, plug-and-play battery.
It is ideal for replacing lead-acid batteries in existing installations, as well as for new self-consumption and off-grid
off-grid and self-consumption installations with requirements between 13 and 54 KWh.
The eBick Ultra 175, offering an IP30 degree of protection, is stackable up to 2 heights and up to 8 parallel connections in controlled conditions for communication.

Tensión 48 V (45….53,5 Vdc)
Potencia disponible 90% (3,2kW)
Descarga recomendada 37 A (1,7 kW)
Descarga máxima 74 A (3,5 kW)
Conexión Can-Bus y RS485
Compatible con Victron y Solis
> 6000 ciclos de vida @ 25ºC (15 años)
Dimensiones: 442mm x 420mm x 132mm
Peso: 32 kg.

Huawei BMS (LUNA2000-5KW-C0 - DC/DC Module)
Advanced management system that is responsible for monitoring and controlling the batteries of the power module

Backup Box-B0 Huawei

Rated voltage: 220V / 230V
AC output voltage range: 198V - 253V
Maximum output current: 22.7
Protection: IP65

Huawei Luna Wall Mounting Bracket
Wall mounting kit for Huawei LUNA2000

Backup Box-B1 Huawei

Rated voltage: 220V / 230V
AC output voltage range: 198V - 253V
Maximum output current: 22.7
Protection: IP65

The TCC-CAN control module for Cegasa's eBick Ultra 175 modular battery.
The BMS, through CAN communication, allows sending the most relevant battery data such as SOC, temperature, alarms, current and voltage both in charge and discharge, among others. In addition, with the eViewer App, via Bluetooth connection, it allows to visualize the module parameters such as battery SOC, cycles and bus voltage, among others.

Batería de alto voltaje
10 años de garantía

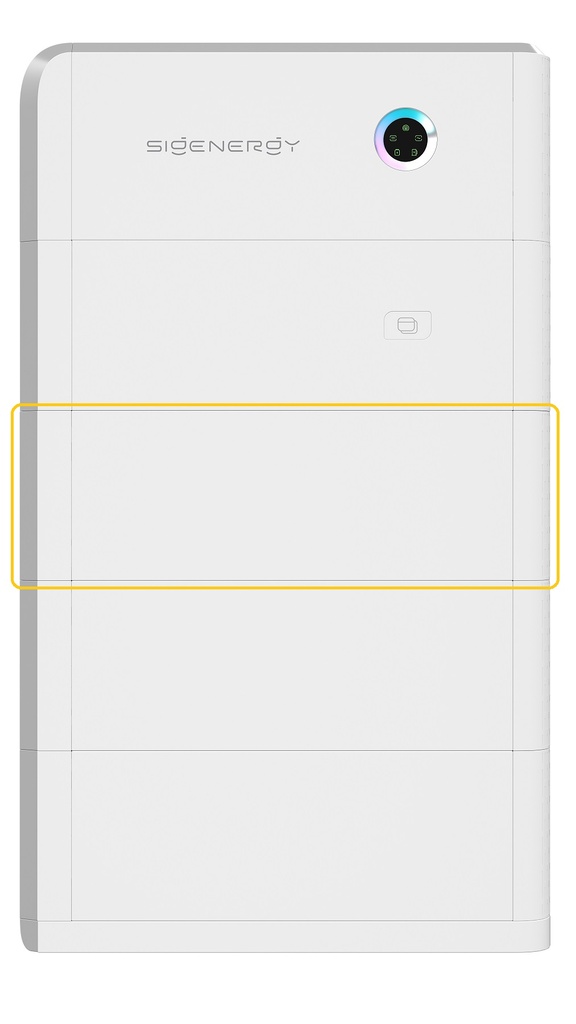

The SigenStor battery is part of the SigenStor 5-in-1 energy storage system. Sigenergy's ESS seamlessly integrates the PV inverter, battery power conversion system (PCS), EV DC charger for electric vehicles, battery pack and energy management system (EMS).

The battery system has a modular and stackable design and can be connected in parallel to meet different capacity needs.
AI-assisted energy planning, safety protection, VPP scheduling and service support.

KEY FEATURES:
1 to 6 batteries per stack (max. 30 kWh).
Maximum discharge/charge power of 3750W
High capacity 280 Ah, low voltage, long-lasting battery cells
Battery status visible in mySigen application
Quick start-up in 5 minutes
Quick connectors for fast installation
IP66 protection rating
Product warranty: 10 years (see Warranty Terms and Conditions)
Any combination of BAT5 and BAT8 used with a SigenStor EC is possible
It is not possible to mix Sigenergy batteries with other manufacturers' batteries.

Huawei BATERÍA 5kWh

Maximum power output. 2.5kw
Rated voltage (single phase system): 360V
Rated voltage (single phase system): 600V
Cell Technology: Lithium-Ferrophosphate(LiFePO4)
Protection: IP66
10 year warranty

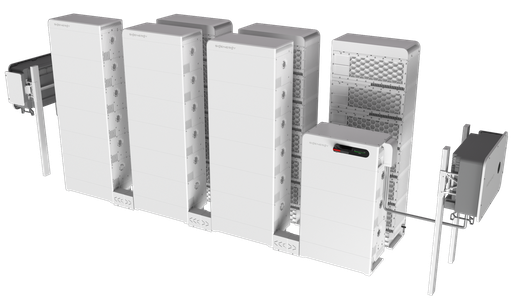

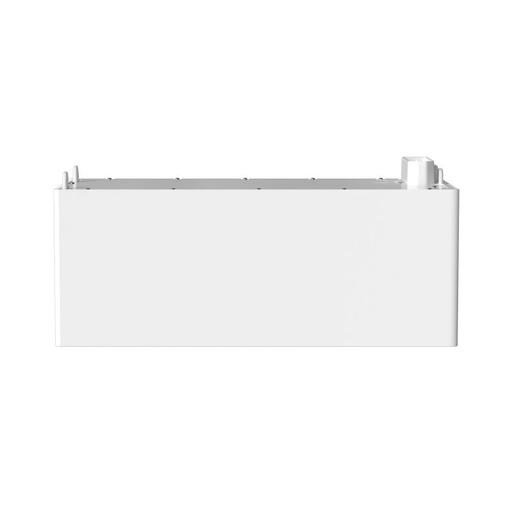

SigenStack Battery 12.0 kWh

SigenStack Battery Controller M1 - 0.5C
Este es el controlador principal para los módulos de batería en la serie SigenStack. Su función es regular y optimizar el rendimiento del sistema de almacenamiento de energía en cada torre, permitiendo una gestión eficiente de la energía almacenada. La capacidad máxima que se puede instalar en cada controlador de torre es de 252 kWh.

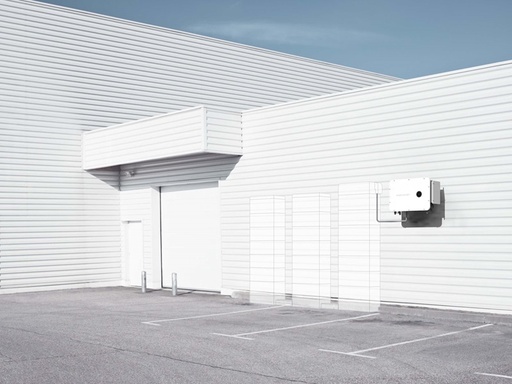

La cubierta de SigenStack sirve como una protección para los módulos de batería dentro de la torre. Su función principal es salvaguardar los módulos de elementos externos como polvo, humedad, y condiciones ambientales adversas, ayudando a prolongar la vida útil del sistema y mantener la seguridad de la instalación.
