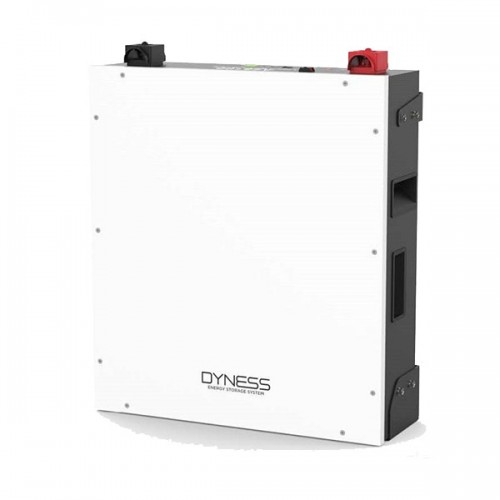

Dyness DL5.0C (5kWh)

https://pnp.energy/web/image/product.template/6024/image_1920?unique=35754b0 Dyness P&P3937

• Energía nominal: 5,12 kWh. • Química: LiFePO4. • Profundidad de descarga: 90 %. • Expansión: hasta 50 unidades en paralelo (256 kWh). • Comunicación: CAN/RS485/RS232. • Protección: IP20. • Vida útil: ≥6.000 ciclos según las condiciones de la ficha técnica. • Garantía: 10 años según las condiciones del fabricante. • Peso neto: 49,9 kg.

Not Available For Sale

  • Power (Wn)
  • Batería
  • Inverter / solar panel / Battery
  • warranty

This combination does not exist.

Contact Us
Power (Wn): 5 kWh
Batería: Litio
Inverter / solar panel / Battery: Batería
warranty: 10 años
Technical guide

Compatibility and configuration

Data for sizing the Dyness DL5.0C low-voltage battery and checking inverter compatibility.

Energy and discharge
5.12 kWh nominal · 90% depth of discharge
Voltage
51.2 V nominal · 44.8 to 57.6 V range
Current
50 A recommended · 75 A peak charge · 100 A discharge
Scalability
Up to 50 units in parallel · 256 kWh
Compatible inverters
SMA, Victron, Ingeteam, Solis, GoodWe, Growatt and other models in the official list
Communication
CAN · RS485 · RS232
Protection and temperature
IP20 · discharge from -20 to 55 °C
Cycle life and warranty
≥6,000 cycles · 10 years under manufacturer conditions
Weight
49.9 kg net

Technical frequently asked questions

Which inverters are compatible with the DL5.0C?

The official list includes specific models from SMA, Victron, Ingeteam, Solis, GoodWe, Growatt, Deye and other brands. The exact model and communication must be checked before installation.

How many batteries can be connected in parallel?

The data sheet allows up to 50 units in parallel, equivalent to 256 kWh nominal.

What capacity and cycle life are stated?

It states 5.12 kWh nominal, 90% depth of discharge and at least 6,000 cycles under the data sheet test conditions.

Official sources published on this product page: data sheet · compatible inverter list · installation manual · warranty. Specifications are subject to the conditions in the linked documents.
