SPF 1/1 string, MC4 type connector, protection fuses, 40kA 8/20, cartridge (1000Vdc), box with 6 IP65 modules

SPF 2/1-40/1000/15 (122) - Photovoltaic protection panel
for 2 inputs + 1 outputs.
1000Vdc, 15A per input, with fuse, fuse base and
1000vdc 30A disconnector. Surge protection
1000vdc 40A. Enclosure of 12 modules in ABS. Connectors
stuffing box.

SPF 3/1-40/1000/15 (122) - Photovoltaic protection panel
for 3 inputs + 1 outputs. 1000Vdc, 15A per input, with
fuse, fuse base and disconnector. 12 envelope
ABS modules with cable glands.

The ISB is designed to protect photovoltaic installations installed on roofs
in case of emergency or fire, offering maximum safety for firefighters and
the electrical installation.
Its design makes it easy to install even in existing installations.
Maximum current up to 40 A.
Maximum voltage up to 1500 VDC.
Includes automatic shut-off temperature sensor.
According to EN 60947-3, EN 61643-11.

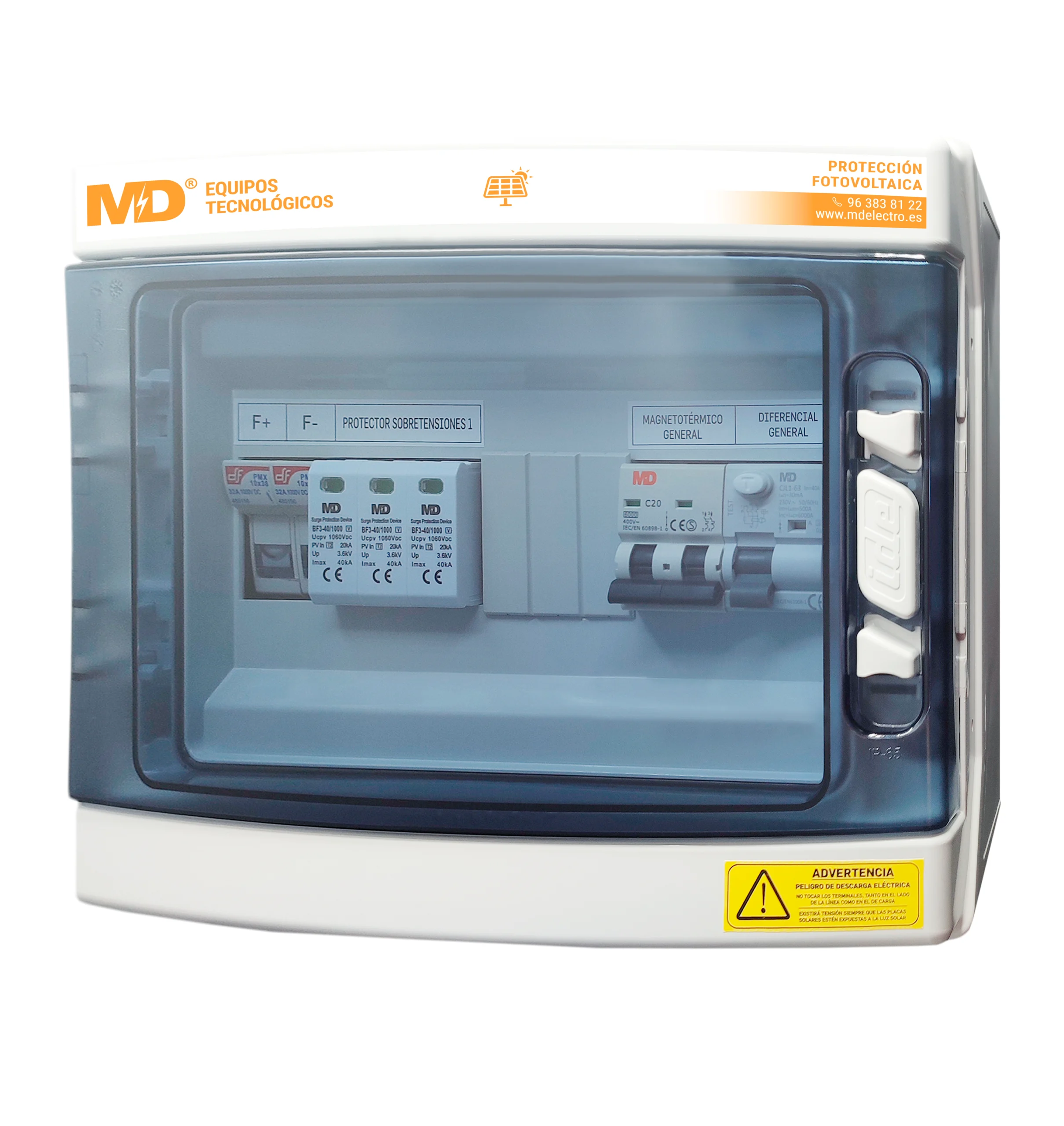

Photovoltaic protection panel for 10 inputs +
10 exits. 1000Vdc, 15A per input, with fuse and base
of fuse. Enclosure of 4x18 modules in ABS. with
MC4

Photovoltaic protection panel for 3 MPPT out of a total of 6
string (2 per MPPT) fuses 20A 10x38 1000vdc with
50A disconnector and BF3 surge protection
40/1000, IP66 polyester cable gland and cabinet
600x400x250 with opaque door and 180 opening. Assembled and
prewired.

Photovoltaic protection panel for 8 MPPT of a total of
16 string (2 per MPPT) fuses 20A 10x38 1000vdc with
50A disconnector and BF3 surge protection
40/1000, IP66 polyester cable gland and cabinet
800X600X250 with opaque door and 180 opening. Assembled and
prewired

Photovoltaic protection panel for 10 MPPT of a total of
20 string (2 per MPPT) fuses 20A 10x38 1000vdc with
50A disconnector and BF3 surge protection
40/1000, IP66 polyester cable gland and cabinet
1000x800x300 with opaque door and 180 opening. Assembled and
prewired.

2P single-phase differential switch. In=30mA (40A) Class B (smooth pulsating alternating leakage currents up to 1kHz). With automatic reset.

2P single-phase differential switch. In=100mA (40A) Class A (alternating leakage currents or p). With automatic reset.

2P single-phase differential switch. In=30mA (40A) Class B (smooth pulsating alternating leakage currents up to 1kHz).

DF - DC fuse base 1kV unipolar 10x38

switch
2P single-phase differential. In=30mA (40A) Class A (currents
alternating or pulsating leakage with continuous component
applied abruptly or of increasing value). Superimmunized.

Differential Switch Type A-SI 4P 40A 30mA - (superimmunized)

Box of 18 IP65 ABS modules composed of Class A Differential 4P 40A 30mA + Magnetothermal 4P 32A + Surge Protection. Assembled and pre-wired.

Box of 18 modules in ABS IP65 composed of Class A Differential 4P 40A 30mA + Magnetothermal 4P 40A + Surge Protection. Assembled and pre-wired.

Panel with 18 modules in ABS IP65 composed of Class A Differential 4P 63A 30mA + Magnetothermal 4P 63A + Magnetothermal 4P 40A and Surge Protection. Assembled and pre-wired.

[MD01000] SPF 1/1-40/1000/15(221) - Photovoltaic protection panel for 1 input + 1 output
• 1000Vdc, 15A per input, with fuse and fuse base. Enclosure of 6 modules in ABS. MC4 connectors.

Measurements (H×W×D): 246×310×148 mm
Weight: 2.5kg
Technical source: MD Technological Equipment - Technical sheet SPF 1/1-40/1000/15(221) + AC2-16/SP

CHINT Connecta WiFi control module for managing up to 32 NB2/NB2LE resettable RCBOs. Sold separately; it enables remote control of compatible RCBOs.
Manufacturer reference: EL01GWU
CHINT code: EL01GLN00_00
EAN13: 8058776750249
Packaging: caja 500 ud / emb. 1 ud
