Like the MultiPlus, the VICTRON ENERGY Quattro is also a device composed of an inverter and a charger. Additionally, it supports two AC inputs and automatically connects to the active input. Its many features include a pure sine wave inverter, variable load, hybrid PowerAssist technology, plus multiple features for integration into different systems, such as three-phase or split-phase systems.

Distribuitor Lynx (M8)

Sigen Gateway HomeMax TP (Three-phase) for 12 inverters

• 3 circuit breaker positions reserved for SigenStor or other loads
• 0ms switch to backup mode, worry-free power usage
• Ready for generator, heat pump or other controllable loads
• Supports whole home backups and partial home backups
• 350 ms reverse power flow protection of grid and generator
• Uninterrupted power supply through PV+ESS/grid/generator

Victron cable used to communicate the BMV battery regulators and monitors with the Victron GX monitoring devices.

Fuse holder for MEGA-fuse.

5000VA 48V 230V IP22 (Includes 70A charger)

MEGA fuse 125A/58V

Use the MK3-USB to connect the following products to a computer for configuration: Multi, MultiGrid, MultiPlus, MultiPlus-II, Quattro, Inverter (only models with VE.Bus communication port), ECOmulti, EasySolar, EasyPlus.

• Rated AC output power: 110 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

• 3 kW single-phase hybrid inverter: Ideal for medium-sized homes or autonomous systems
• Full integration: Compatible with solar panels, SigenStor batteries and generators
• Automatic backup: Instant (0 ms) switch to backup mode for critical loads
• Robust design: Metal casing, no fans, silent operation (≤25 dB)

● Compact and silent design (25 dB)
● 2 MPPT with high efficiency and flexibility
● IP66 protection and wide thermal range
● Compatible with SigenStor batteries and smart integration

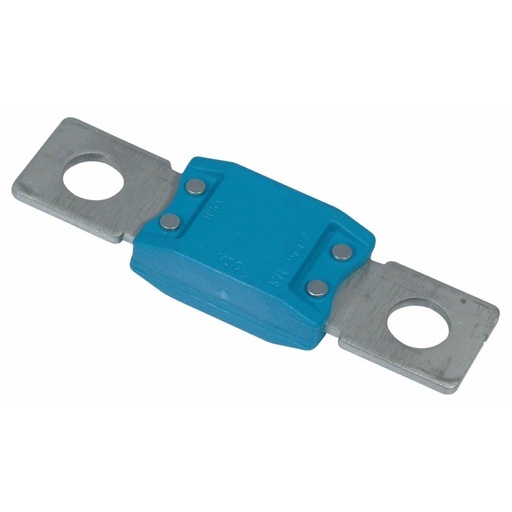

The Victron MEGA-Fuse 250A/58V fuse has been designed for isolated photovoltaic installations.
It is compatible with Victron's MEGA fuse holders, with installations of 48 and with a maximum supported intensity of 250A.

• Rated AC output power: 125kW (400V, 50/60Hz)
• Number of MPPT: 8 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Rated AC output power: 6 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

• Rated AC output power: 50kW (400V, 50Hz)
• Number of MPPT: 4 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Rated AC output power: 60kW (400V, 50Hz)
• Number of MPPT: 5 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Rated AC output power: 8 kVA (380/400 V, 50/60 Hz)
• Number of MPPT: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

3000VA 48V 230V IP22 (Includes 35A charger)

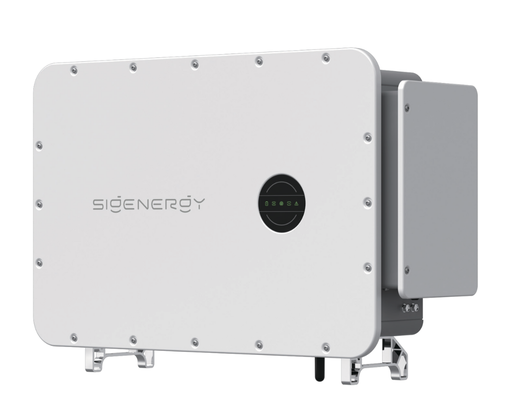

Sigen PV Inverter
Models: 50M1, 60M1, 80M1, 100M1, 110M1

DC input
Max photovoltaic energy CC: 90,000 - 198,000 Wp
Max voltage DC input: 1,100 V
MPPT number: 4 - 8 (depending on model)
Protection

Safety Protection Function: Includes arc fault circuit breaker, DC reverse polarity protection, residual current monitoring, DC/AC type II surge protection, islanding protection, insulation monitoring, and AC overcurrent/overvoltage/short circuit protection.
General data

Measurements (width × height × depth): 918 / 640 / 340 mm
Weight: 68 - 75kg
Operating temperature range: -30 ~ 60 °C
IP protection grade: IP66
Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

• High capacity: Supports up to 9 inverters.
• Storage Compatible: Works with SigenStor, generators and EVs.
• Security: Reverse flow 350 ms and backup 0 ms.
• Uninterrupted power: Continuous supply via PV + ESS / grid / generator.
