Photovoltaic protection panel for 3 inputs + 3 outputs. 1000Vdc, 15A per input, with fuse and fuse base. Enclosure with 18 modules in ABS. MC4 connectors.

Photovoltaic protection panel for 4 inputs + 4 outputs. 1000Vdc, 15A per input, with fuse and fuse base. Enclosure of 2x12 modules in ABS. MC4 connectors.

Photovoltaic protection panel for 8 inputs + 8 outputs. 1000Vdc, 15A per input, with fuse and fuse base. Envelope of 3x18 modules. With MC4 connectors.

Mounted anti combiner type photovoltaic protection panel
in a 600X400X250 IP65 polyester cabinet composed of
input by 200A NH1 type fuses + Fuse Bases,
outputs using 20A 1000vdc fuses with protection of
surges. Cable gland, assembled and pre-wired

Electric vehicle charging protection panel according to ITC-BT-52.
2 Poles, 32A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection panel according to ITC-BT-52.
2 Poles, 40A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection table according to ITC-BT-52.
4 Poles. 32A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection panel according to ITC-BT-52.
4 Poles. 40A, POP 50:550 permanent and transient overvoltage protection.

1000Vdc, 15A per input, with
fuse and fuse base + surges 40kA 1000vdc.
Enclosure of 3x18 modules. Box without drilling and with
stuffing box inside.

Differential Switch. RCCB 2P 40A 30mA type A (VE Charger suggestion)

[MD00138] BV2M-40/240 - Single-phase surge protectors Type 2
• Maximum service voltage Uc = 275 V. Protection level [N-T] Up = 1.2 kV. Maximum discharge current (8/20) Imax = 40 kA. Mounting on DIN rail, pluggable, width 1 module (18mm).

Measurements (H×W×D): 90×18×68 mm
Weight: 0.13kg
Technical source: MD Technological Equipment - BV2M-40/240 technical sheet

Photovoltaic protection panel with 7 inputs and 7 outputs of 1000vdc with 16A disconnector, 20A fuses in 10x38 and type II surge protection 40kA, 1000vdc. per string, double-insulated polyester hybrid envelope and transparent polycarbonate cover with 720x540x201 gasket, with cable gland, assembled and pre-wired.

Protection box
photovoltaic with 16 inputs and 16 outputs, mounted on a plate
800x600x300mm IP66 polyester cabinet with door
opaque Composed of 32 fuse bases and fuses
10x38 15A 1kV + surge protection BF3-
40/1000vdc with bulkhead, assembled and pre-wired.

Custom photovoltaic protection panel with 9 inputs of which 3 are double and 6 outputs with disconnector, fuse bases and 10x38 1000vdc 16A fuses in IDE IP65 3x18 enclosure in ABS, with wall grommets and cable gland for ground, assembled and pre-wired.

Combiner type photovoltaic protection panel

Custom-made with 13 inputs and 1 output with 1500 VDC 400A disconnector, + fuse bases and 14x85 1500vdc 16A fuses in IP66 polyester cabinet 747x536x300mm with opaque door, with wall grommet and cable gland for ground, assembled and pre-wired.

Electric vehicle charging protection panel according to ITC-BT-52.
2 Poles, 32A, POP 50:550 permanent and transient overvoltage protection.
Resettable automatic

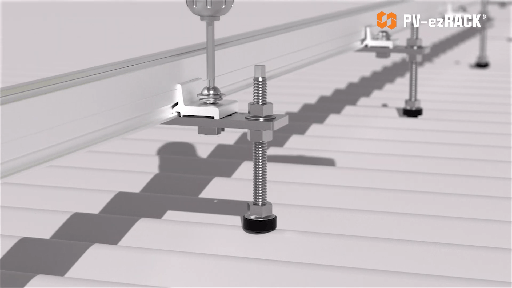

Coplanar kit for 2 vertically installed modules of 60 and 72 cells, with a frame between 30 and 42 mm.

The kit includes:

Light Guide 2.4 m
OneEnd final plate set
OneMid center plate set
Protection cap for Light guide
Self-tapping rod set M10x250

SPF 1/1 string, MC4 type connector, protection fuses, 40kA 8/20, cartridge (1000Vdc), box with 6 IP65 modules

SPF 2/1-40/1000/15 (122) - Photovoltaic protection panel
for 2 inputs + 1 outputs.
1000Vdc, 15A per input, with fuse, fuse base and
1000vdc 30A disconnector. Surge protection
1000vdc 40A. Enclosure of 12 modules in ABS. Connectors
stuffing box.

SPF 3/1-40/1000/15 (122) - Photovoltaic protection panel
for 3 inputs + 1 outputs. 1000Vdc, 15A per input, with
fuse, fuse base and disconnector. 12 envelope
ABS modules with cable glands.
