Observations:
Photovoltaic inverters and PCS are available from different manufacturers.
Notes:
Project needs: They need a timer to charge or discharge the batteries. The programmer would cause the batteries to be charged at their maximum power, but always limited to the energy they obtain from the photovoltaic (you never want to consume energy from the grid). This time programmer should be able to be manipulated through a website/mobile application. Monitoring is included
Solution proposal: Renlogger in the plant. (Technical room). They have internet connection there (equipment included in the offer). In Renlogger we would set up: GWTCP to collect information from investors
(photovoltaic and bidirectional) On the GWTCP we integrated a specific regulator according to its needs with time control that would send the orders to the bidirectional inverters according to the time and the power produced. Web server with a basic interface (responsive to be able to manage it from your mobile) that allows you to adjust the regulator parameters (and perhaps see instantaneous data from the plant at all times).

Circutor Network Analyzer CVM-E3-MINI-MC-485-IC ref. M56454.

Dummy Sigenenergy EVAC x mufa de încărcare + suport

Dummy Sigenergy Floor Mount Kit

CONTOR PRO380-CT Dummy Solar-Log

Dummy Solar-Log Base 100

Dummy Solar-Log Sensor Box Professional Plus

Releu inteligent simulat Solar-Log

Dummy Sigenergy Wall Mounting Kit

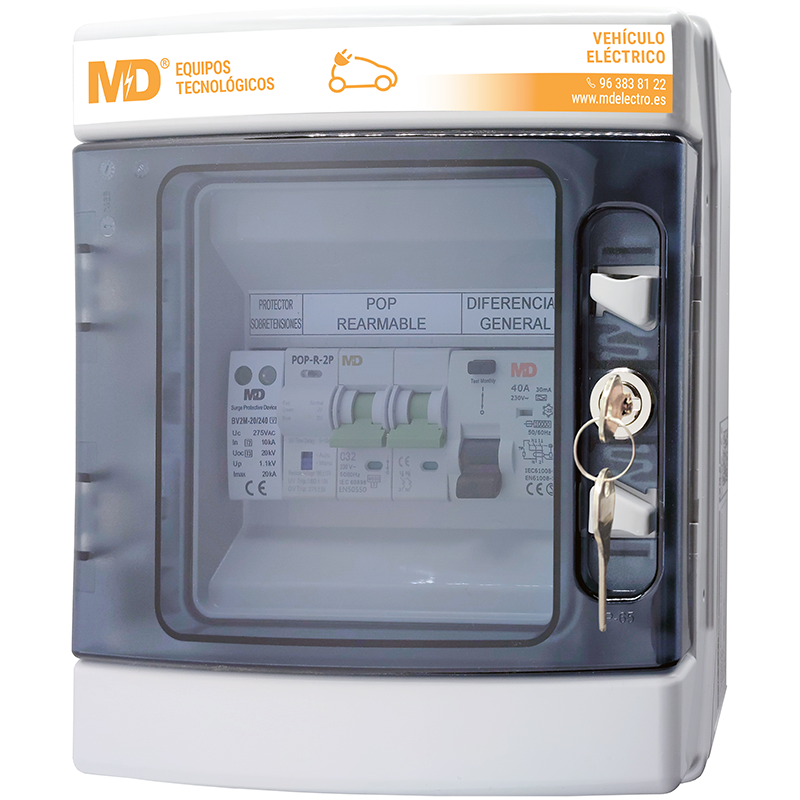

Electric vehicle charging protection panel according to ITC-BT-52.
2 Poles, 32A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection panel according to ITC-BT-52.
2 Poles, 40A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection table according to ITC-BT-52.
4 Poles. 32A, POP 50:550 permanent and transient overvoltage protection.

Electric vehicle charging protection panel according to ITC-BT-52.
4 Poles. 40A, POP 50:550 permanent and transient overvoltage protection.

• Sigen EV DC 12.5kW VE Charger: Includes 7.5m CCS2 cable for fast and safe charging.
• Max. 12.5kW stable bidirectional charging.
• Ultra-wide range: Full compatibility with VE (150-1000V) and CCS2 connector.
• IP66 protection, maintenance free.

EBick plinth with wheels that allows modules to be stacked up to 3 heights.
Recommended for small spaces where use is not possible
of pallet truck.

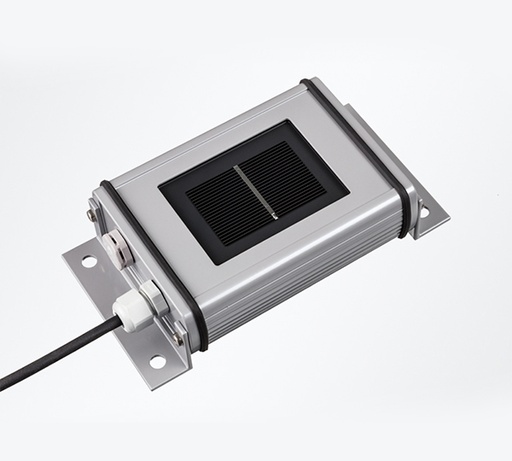

Modbus irradiance sensors are designed for professional use in industrial, commercial and photovoltaic plants.

The irradiance sensor works as a concentrator for several sensors. All measured weather data is transmitted to the data loggers and receiving units via a 2-wire RS485 bus with Modbus RTU protocol.

- Class A compliance.
- Quick and easy installation.
- Similar structure with photovoltaic panels.
- Free software update.
- Compatible with SunSpec (for Modbus RTU).
- Remote configuration service.
- 5 years warranty.

1000Vdc, 15A per input, with
fuse and fuse base + surges 40kA 1000vdc.
Enclosure of 3x18 modules. Box without drilling and with
stuffing box inside.

Differential Switch. RCCB 2P 40A 30mA type A (VE Charger suggestion)

[MD00138] BV2M-40/240 - Single-phase surge protectors Type 2
• Maximum service voltage Uc = 275 V. Protection level [N-T] Up = 1.2 kV. Maximum discharge current (8/20) Imax = 40 kA. Mounting on DIN rail, pluggable, width 1 module (18mm).

Measurements (H×W×D): 90×18×68 mm
Weight: 0.13kg
Technical source: MD Technological Equipment - BV2M-40/240 technical sheet

Photovoltaic protection panel with 7 inputs and 7 outputs of 1000vdc with 16A disconnector, 20A fuses in 10x38 and type II surge protection 40kA, 1000vdc. per string, double-insulated polyester hybrid envelope and transparent polycarbonate cover with 720x540x201 gasket, with cable gland, assembled and pre-wired.
