Like the MultiPlus, the VICTRON ENERGY Quattro is also a device composed of an inverter and a charger. Additionally, it supports two AC inputs and automatically connects to the active input. Its many features include a pure sine wave inverter, variable load, hybrid PowerAssist technology, plus multiple features for integration into different systems, such as three-phase or split-phase systems.

Sigen Gateway HomeMax TP (Three-phase) for 12 inverters

• 3 circuit breaker positions reserved for SigenStor or other loads
• 0ms switch to backup mode, worry-free power usage
• Ready for generator, heat pump or other controllable loads
• Supports whole home backups and partial home backups
• 350 ms reverse power flow protection of grid and generator
• Uninterrupted power supply through PV+ESS/grid/generator

*SEPARATE POWER SUPPLY

The Solar-Log Base 100, for installations up to 100.99 kWp, provides us with various functions:

-Compatibility:

Compatible with the vast majority of inverters on the market

-Smart Energy: more self-sufficiency than ever

Registration and presentation of self-consumption control and visualization of individual devices for the optimization of self-consumption together with compatible devices for load management

-Universal 0 Injection – Ensures Compliance with Legal Requirements

Certified active power management for the Spanish market.

25kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

Bidirectional three-phase meter.
Rated voltage 230 V/400 V
Frequency 50 Hz/±5%
Rated current/limit per phase conductor 5 A/63 A (>63 A combined with external current transformers)
Starting current <25mA
Connection section 10 mm² to 16 mm² 1) (for 63 A protection)

With external voltage supply 12 to 28 VDC, 3 m cable, integrated microprocessor, active temperature compensation, integrated temperature measurement on RS485 interface, with sockets for an external temperature sensor (Pt1000) and an external wind speed sensor (connectors not included), protocol: MODBUS

Use the MK3-USB to connect the following products to a computer for configuration: Multi, MultiGrid, MultiPlus, MultiPlus-II, Quattro, Inverter (only models with VE.Bus communication port), ECOmulti, EasySolar, EasyPlus.

Victron 275A disconnector

• Wireless up to 200m: Long-range and stable HaLow WiFi communication
• Universal: Compatible with all Sigen sensors (single/three-phase)
• Dual RS485/Wireless: Flexible wired or wireless connection
• Easy installation: DIN rail mounting and mains power

Compact equipment for decentralized systems and large-scale photovoltaic systems due to its high power density. Output voltage 690V

“Active cooling” with speed-controlled fans ensure optimal
optimal cooling with lower energy consumption, maximizes production
due to temperature reduction

Max power of PV generator: 360 kWp
Max input voltage 1500V
Max input current/Max short circuit current: 180 A/325 A
Number of MPP followers: 1
Certificate for Spain and Portugal
5 year warranty

Stops power losses
Prevents the PID effect
Measures insulation resistance.
IP56
MC4 connection
Output for 1 MPPT, chains up to 1000V with common negative
1 relay output

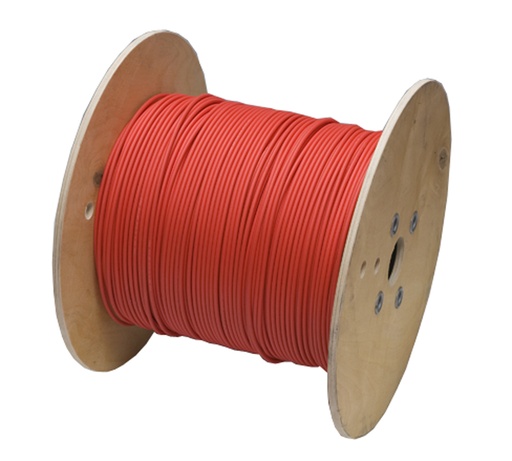

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / U AC1.0 / 1.0 kV DC 1.5 / 1.5 kV
Weather and UV resistance

The BENNING PV 2 is a professional measurement device designed for the safe, precise and efficient verification of photovoltaic installations, both in direct current (DC) and alternating current (AC). Ideal for installers, maintenance technicians and EPC companies, this device allows essential testing according to IEC 62446.

What is it for?
This instrument is essential for:

Verify the performance and safety of photovoltaic strings and inverters.

Measure voltage and current in open circuit (Voc, Isc).

Detect insulation faults between conductors and ground (insulation test up to 1000 V DC).

Check the polarity, continuity and general condition of the panels.

Carry out post-installation technical audits or preventive maintenance.

Typical applications
Residential, commercial and industrial solar installations.

Verification of strings before connection to the inverter.

Certification of new systems in accordance with regulations.

Diagnosis of poor performance or failures in the field.

Key advantages:
Fast and accurate measurement at the touch of a button.

Compatible with modules up to 1000 V DC.

Data storage and download function to PC for reports.

Includes a test box and secure connection cables.

Portable, robust design and ready for outdoor use.

• Bidirectional 12.5kW: V2X technology to charge the EV and power your home or the grid.
• Ultra-wide range: Full compatibility with VE (150-1000V) and CCS2 connector.
• Cooling: Intelligent air cooling.
• IP66 and zero maintenance: Robust design for outdoors and remote control via app.

Double crystal module with TOPCon N-Type technology and 500W power.
MC4-EVO2 connectors and 1400mm cable for vertical and horizontal installation.
Black frame and 25-year product warranty.
Measurements 1961 x 1134 x 30 mm.
Pallet: 36 panels
Container: 864 panels

ATS-4P63 - AUTOMATIC TRANSFER SWITCH (ATS), 4P, 63A

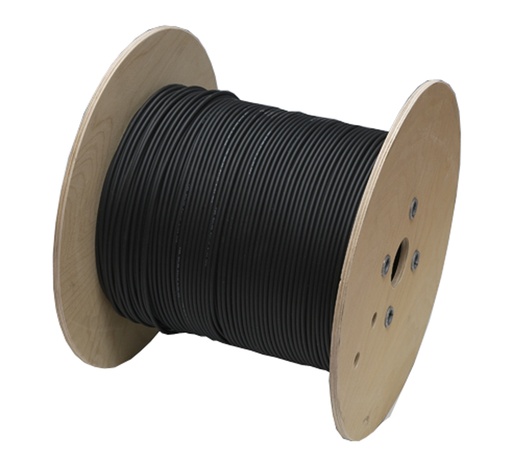

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / U AC1.0 / 1.0 kV DC 1.5 / 1.5 kV
Weather and UV resistance

• High capacity: Supports up to 9 inverters.
• Storage Compatible: Works with SigenStor, generators and EVs.
• Security: Reverse flow 350 ms and backup 0 ms.
• Uninterrupted power: Continuous supply via PV + ESS / grid / generator.

Power supply for Cluster Controller, Data Manager, Gateway or Inverter Manager.

Interface to connect Victron products to the computer.
