• Dynamic charging 11 kW with integrated RCD.
• Automatic power adjustment to avoid overloads.
• IP65 wall or pole mounting, Type 2 AC connector.

K2-Light Guide 2.25 m (01V) SolidRail

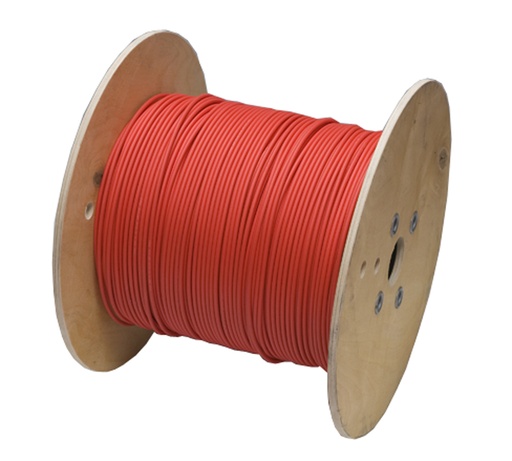

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / UAC1.0 / 1.0 kVDC 1.5 / 1.5 kV
Weather and UV resistance

Photovoltaic protection panel for 2 inputs + 2 outputs. 1000Vdc, 15A per input, with fuse and fuse base. Enclosure of 12 modules in ABS. MC4 connectors.

Three-phase junction adaptor

SigenStack Battery Controller M1 - 1C
This is the main controller for the battery modules in the SigenStack series. Its function is to regulate and optimize the performance of the energy storage system in each tower, allowing efficient management of the stored energy. The maximum capacity that can be installed on each tower controller is 252 kWh.

• SigenStack Tower Master Controller – coordinates and manages all battery modules
• Optimizes charging, discharging and balance between modules for efficiency and useful life
• Maximum capacity managed per tower: 252kWh

Voltage 48 V (45….53.5 Vdc)
Available power 90% (3.2kW)
Recommended discharge 37 A (1.7 kW)
Maximum discharge 74 A (3.5 kW)
Can-Bus and RS485 connection
Compatible with Victron and Solis
> 6000 life cycles @ 25ºC (15 years)
Dimensions: 442mm x 420mm x 132mm
Weight: 32kg.

RENLOGGER-C For data management and exploitation
Complementary communications system, with direct integration with all Real Energy System products. The RENLOGGER allows us direct communication with the deepest programming levels of the various PLCs in the PRISMA range. It integrates 1 Ethernet port, 3 USB ports and 1 USBC port in the same device. The RENLOGGER is a computer specifically prepared to serve as a support system for automata. The final objective is to serve as a bidirectional communication gateway with the automaton chip itself.
Features Multifunction device with the ability to: - Manage multiple devices in real time. - Double TCP/IP communication. - Router server - DHCP communications via Wifi and Lan - Direct routing to VPN - Wifi configurable as client or AP. - Fanless. - Preconfigured for scheduling communications. - Adjusted according to the characteristics of the automaton to be complemented. - Applicable to all types of installations. - Provides: Modbus/TCP Server for monitoring. - Possibility of connecting screen and keyboard The communication capabilities allow virtually the control of any device (*) with communication capacity that has the ports enabled. Includes the software and accessories necessary for installation.

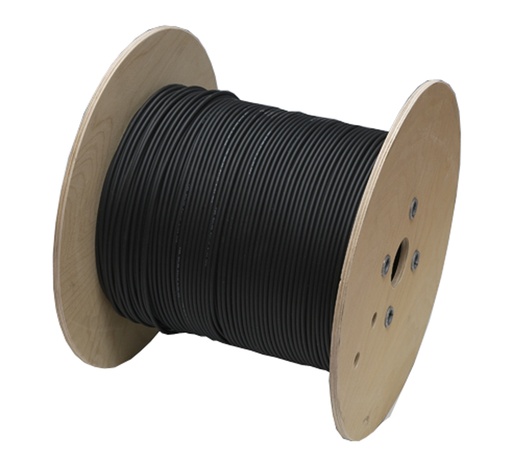

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / UAC1.0 / 1.0 kVDC 1.5 / 1.5 kV
Weather and UV resistance

SingleRail 36 - 2.4m

A power meter transmits the power measurement quantity to the SolarLog for analysis. It serves as a consumption meter, showing a comparison of the power produced and consumed. It can be configured to operate with the SolarLog in three different modes:
- Measurement of energy consumption for optimal use of the generated power.
- Measure the total amount of energy that has been poured into the grid.
- Measurement of energy production of inverters that are not managed directly by SolarLog.

Like the MultiPlus, the VICTRON ENERGY Quattro is also a device composed of an inverter and a charger. Additionally, it supports two AC inputs and automatically connects to the active input. Its many features include a pure sine wave inverter, variable load, hybrid PowerAssist technology, plus multiple features for integration into different systems, such as three-phase or split-phase systems.

Sigen Gateway HomeMax TP (Three-phase) for 12 inverters

• 3 circuit breaker positions reserved for SigenStor or other loads
• 0ms switch to backup mode, worry-free power usage
• Ready for generator, heat pump or other controllable loads
• Supports whole home backups and partial home backups
• 350 ms reverse power flow protection of grid and generator
• Uninterrupted power supply through PV+ESS/grid/generator

*SEPARATE POWER SUPPLY

The Solar-Log Base 100, for installations up to 100.99 kWp, provides us with various functions:

-Compatibility:

Compatible with the vast majority of inverters on the market

-Smart Energy: more self-sufficiency than ever

Registration and presentation of self-consumption control and visualization of individual devices for the optimization of self-consumption together with compatible devices for load management

-Universal 0 Injection – Ensures Compliance with Legal Requirements

Certified active power management for the Spanish market.

25kw single phase inverter (3MPPT)

Connection: Ethernet / WLAN
Max. input current: 24A
Max voltage input: 1000V
Max current input per string: 37.5A
IP65 protection
Maximum performance: 98%
Warranty: 5 years

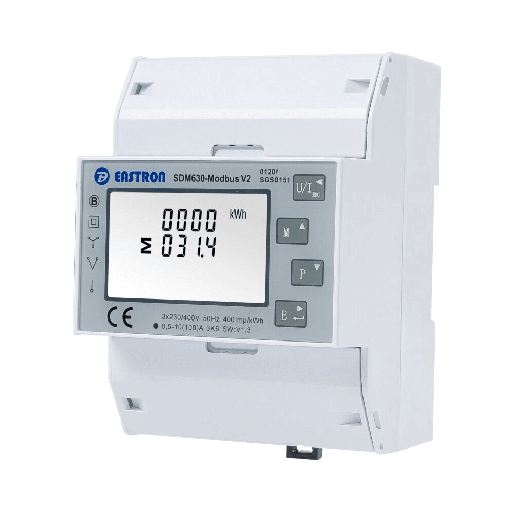

Bidirectional three-phase meter.
Rated voltage 230 V/400 V
Frequency 50 Hz/±5%
Rated current/limit per phase conductor 5 A/63 A (>63 A combined with external current transformers)
Starting current <25mA
Connection section 10 mm² to 16 mm² 1) (for 63 A protection)

Use the MK3-USB to connect the following products to a computer for configuration: Multi, MultiGrid, MultiPlus, MultiPlus-II, Quattro, Inverter (only models with VE.Bus communication port), ECOmulti, EasySolar, EasyPlus.

Victron 275A disconnector

• Wireless up to 200m: Long-range and stable HaLow WiFi communication
• Universal: Compatible with all Sigen sensors (single/three-phase)
• Dual RS485/Wireless: Flexible wired or wireless connection
• Easy installation: DIN rail mounting and mains power
