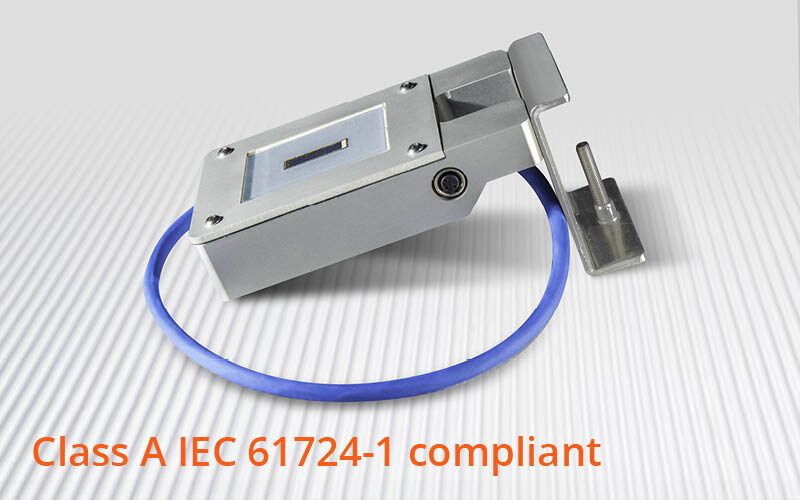

SM1-485PRO WIND - Sunmeter Pro
Soluzione solare P&P3009SUNMETER PRO WIND con celda solar LAMINADA con VIDRIO SOLAR y con los mismos elementos que en PV módulo. Clase A; Salida en Modbus RS485, Irradiancia Previo ± 2.1%, Previo Temp. ± 0,5°C, velocidad del viento. Casas en anodizado aluminio. Con soporte de montaje y Entrada de sonda de temperatura. Precisión 2.%. Servicio de recalibración después de 12/18 meses incluidos. Para comunicación con anemómetro de pulsos es necesario: - 2 x M12 Male 8 pin - 1 x Conector en Y M12 para anemómetro Soluzione - 1 x M12 Female 8 pin de salida a datalogger
| Marca: Soluzione solare |
Compatibility and configuration
Verified data for SM1-485PRO WIND - Sunmeter Pro.
System or family
Sunmeter PRO
Documentary scope
The sheet validates the base sensor; the WIND assembly must be confirmed
Application
Irradiance measurement in PV plants
Function
Digital and analogue PV pyranometer
Integration
RS485 Modbus RTU · 0-5/10 V · 0/4-20 mA
Installation
Same orientation as the PV generator
Documented data
0-1,500 W/m² · ±2.1% · IP65 · 114×70×22 mm
Pre-installation check
Wind sensor, connectors, supply, calibration and model
Structured weight
Omitted; the source does not identify this reference's weight
Technical frequently asked questions
What does the official source validate?
It validates only the displayed data and family context; any limitation is stated explicitly.
Have exact contents or compatibility been inferred?
No. When the source is family-level, exact contents, variant and compatibility must be confirmed.
What must be checked before installation?
Reference, version, bill of materials, topology, protection, loads and current documentation.
Official source consulted: official technical documentation. Specifications are subject to the conditions in the linked document.
Weather measurement solution for plants that need to correlate production with wind speed as well as irradiance and temperature.
Key features
- Class A with RS485 Modbus output.
- Irradiance ±2.1% and temperature ±0.5°C.
- Wind-speed measurement through a compatible anemometer.
- Anemometer connection requires the M12 connectors and Y adapter specified by the manufacturer.
When to use it
Suitable for performance monitoring, comparison of irradiance and production, loss detection and technical plant documentation. Before ordering, check the datalogger, protocol, supply, cabling and any required auxiliary sensors.
