For homes and small professional projects.

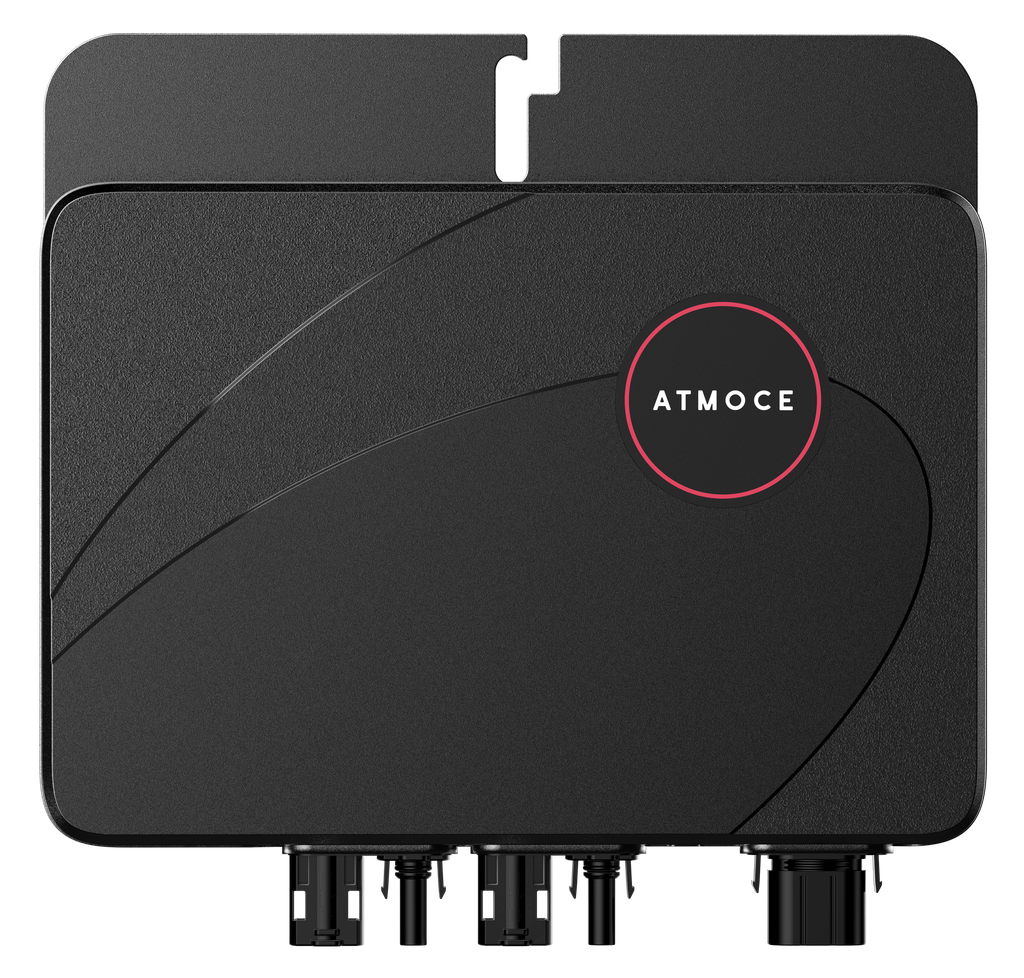

Atmoce MI-800 2 en 1 Microinversor (0.8kWn) (81012004)
Atmoce P&P4614MI-800,Single-phase Microinverter (MC4)-800W
| Power (Wn): 800 W |
| singlephase/threephase: Monofásica |
| Inverter / solar panel / Battery: Inversor |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Key data for the Atmoce MI-800-2M two-in-one microinverter for two PV modules.
AC output
800 W · 220/230/240 V
PV inputs
2 DC pairs · 20 A continuous and 25 A short circuit per input
PV voltage
16-60 V · MPPT 28-55 V · 22 V start-up
Compatible modules
54/60/66/72 cells or equivalent half-cell modules
Units per branch
4 on 20 A · 5 on 25 A · 7 on 32 A, three-phase branch
Efficiency
98.2% peak · 97.7% EU · 99.9% MPPT
Protection and environment
Outdoor IP67 · -40 to 65 °C · <25 dB
Communication and warranty
PLC · warranty up to 25 years
Weight
2.1 kg without bracket
Technical frequently asked questions
How many modules does it connect?
It is a two-in-one microinverter with two DC connector pairs and independent inputs for two modules.
What current does each input support?
Up to 20 A continuous and 25 A short-circuit current per PV input.
How is the AC branch sized?
The data sheet states 4 units on 20 A, 5 on 25 A or 7 on 32 A for a three-phase branch; local calculations and regulations prevail.
Official sources published on this product page: data sheet · installation manual. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
