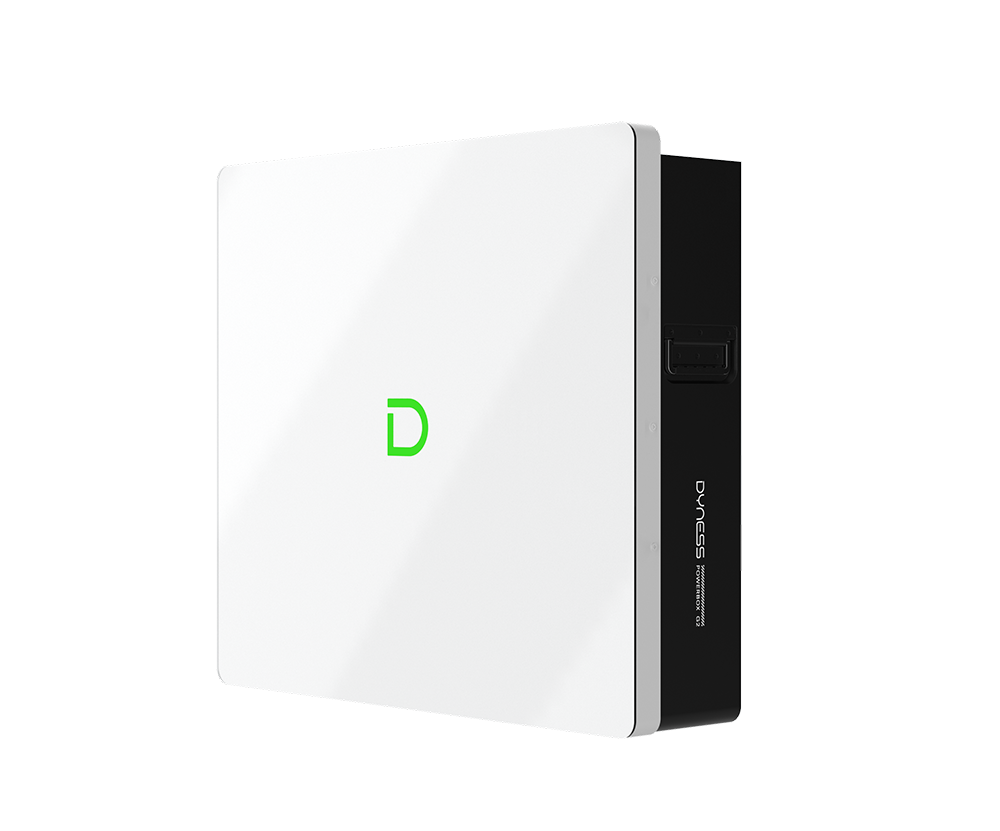

Dyness Powerbox G2 (10.24 kWh)

https://pnp.energy/web/image/product.template/6567/image_1920?unique=10b2801 Dyness P&P4455

Modelo de producto: Powerbox G2 (10,24 kWh) Tipo de batería: LiFePO4 Energía nominal de la batería: 10,24 kWh Grado de protección: IP65 Expansión: Hasta 50 unidades en paralelo Ciclo de vida: ≥8000 ciclos / 10 años Peso neto: 99,7 kg Inversores compatibles: Solis, Victron, Deye, SAJ, Voltronic, Growatt, APS, Goodwe.

Not Available For Sale

  • Power (Wn)
  • Batería
  • Inverter / solar panel / Battery
  • warranty

This combination does not exist.

Contact Us
Power (Wn): 10 kWh
Batería: Litio
Inverter / solar panel / Battery: Batería
warranty: 10 años
Technical guide

Compatibility and configuration

Official data for Dyness Powerbox G2: 10.24 kWh outdoor LiFePO4 battery

Energy
10.24 kWh nominal · 9.728 kWh usable
Voltage
44,8-57,6 V · 51,2 V nominal
Capacity
200 Ah
Power
5.12 kW nominal · 10.24 kW maximum
Current
100 A recommended · 200 A maximum
Cycles
≥8,000 cycles / 10 years
Protection
IP65 · built-in aerosol extinguisher
Scalability
Up to 50 units · 512 kWh
Weight
99.7 kg

Technical frequently asked questions

What is its function?

It stores residential energy with up to 1C discharge and Wi-Fi management.

Which system is it compatible with?

Use it with an inverter and protocol in the current Dyness list.

What must be checked before installation?

Check BMS, firmware, wiring, protection, optional heating and parallel count.

Official sources published on this product page: data sheet · compatibility list. Specifications are subject to the conditions in the linked documents.
