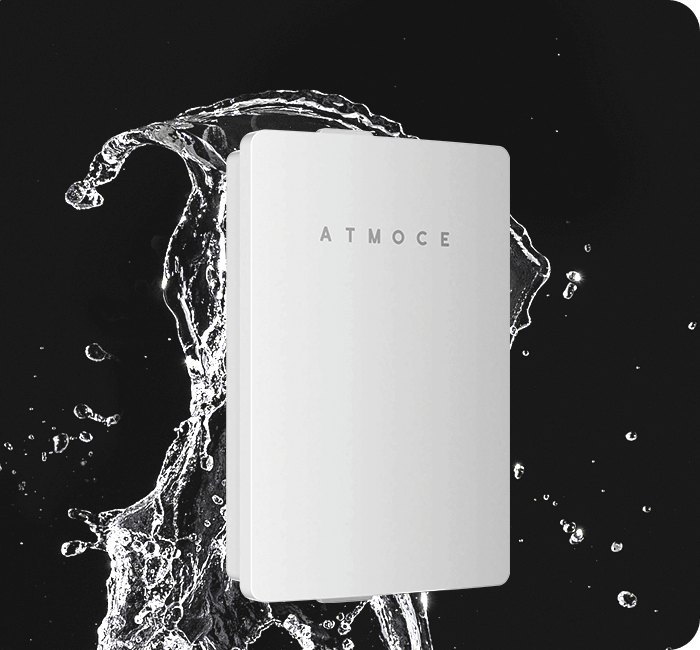

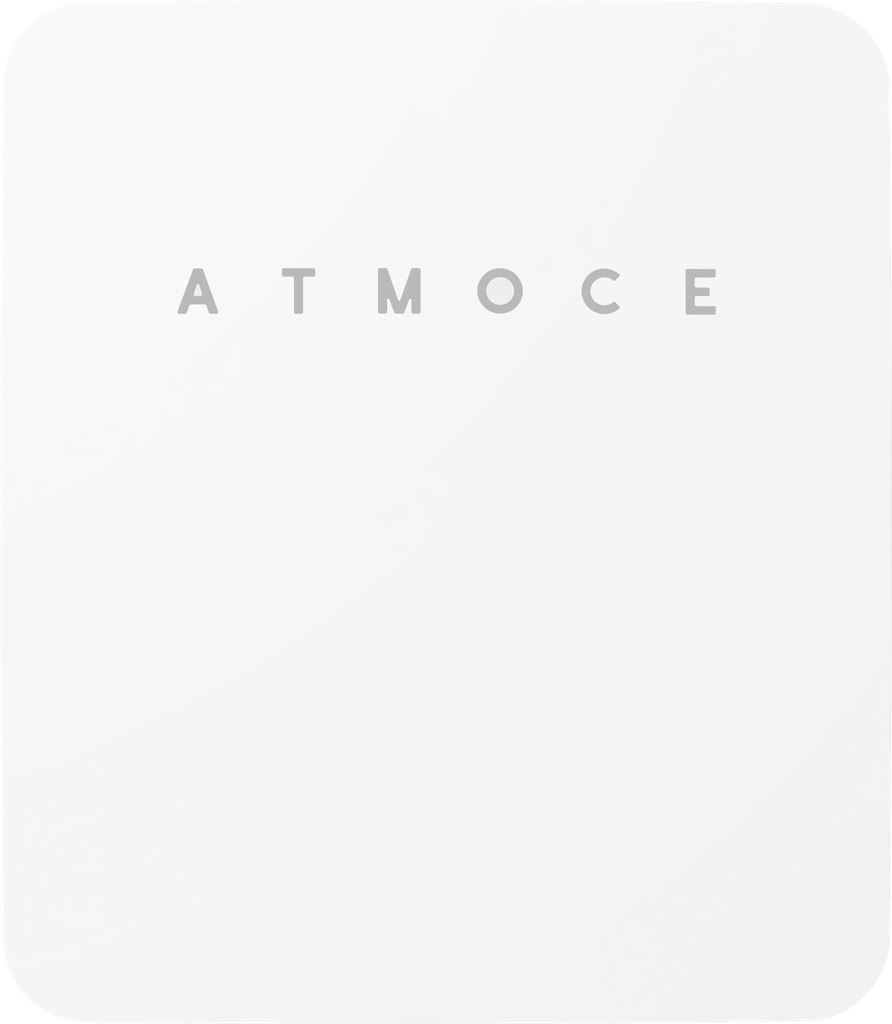

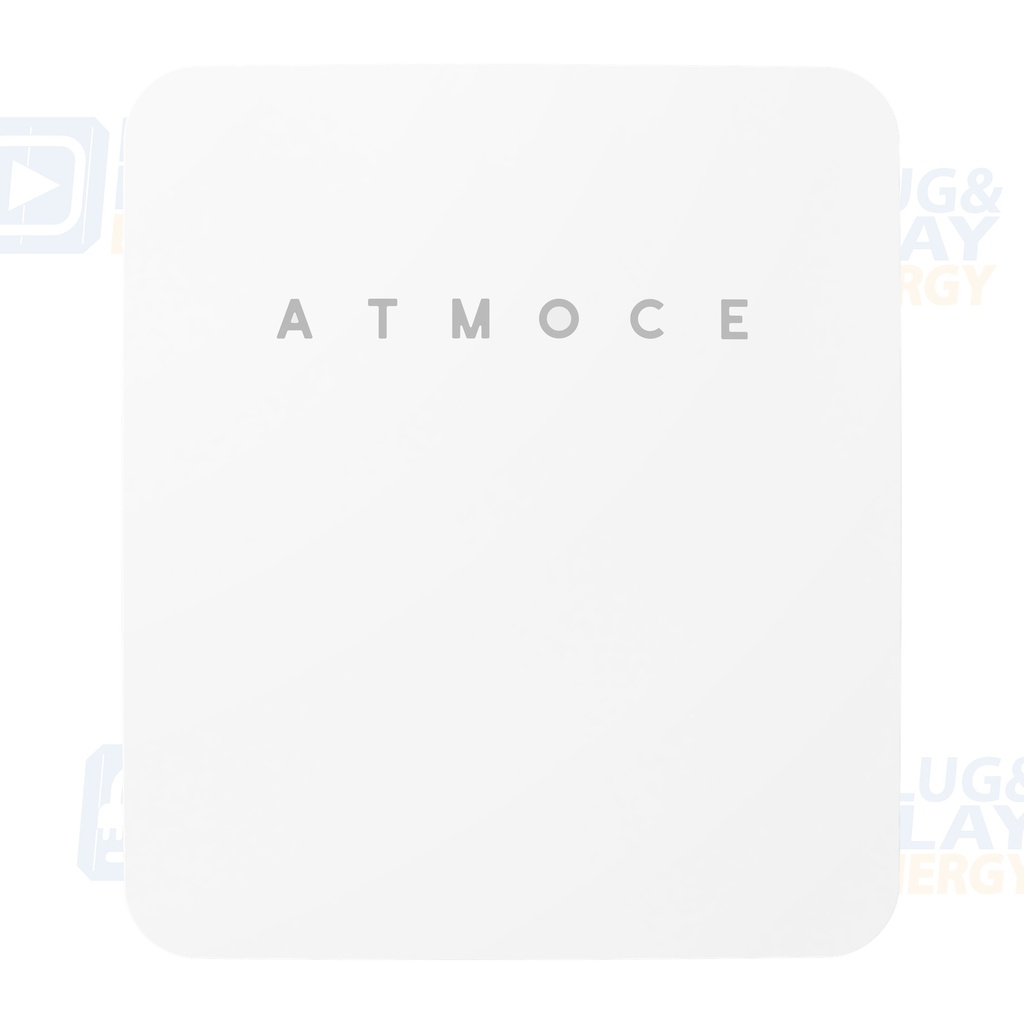

Atmoce MU100-T (Three-phase Backup) (81051001)
Atmoce P&P4364Backup - for 3 phases system
| singlephase/threephase: Trifásico |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Official data for Atmoce M-Backup trifásico: 80 A three-phase backup box
Grid
Three-phase 3/N
Voltage
220/380 o 230/400 Vca
Included breakers
Load, grid and bypass · 80 A · 4-pole
Current
80 A máximos
Range
184-276 V L-N · 45-65 Hz
Dimensions
447 × 389 × 124 mm
Protection
IP65 exterior · Clase II
Communication
CAN · DO
Weight
6 kg
Technical frequently asked questions
What is its function?
It switches and protects backup loads in a three-phase Atmoce system.
Which system is it compatible with?
Integrate it according to the Atmoce M-Backup diagram.
What must be checked before installation?
Check phases, neutral, protection, cable sizes, bypass and CAN/DO.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
