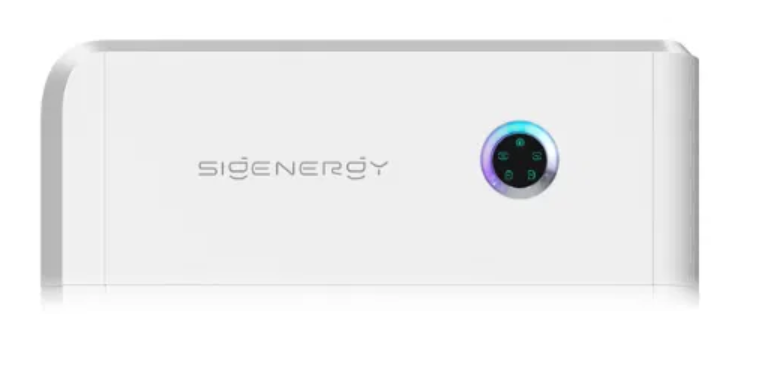

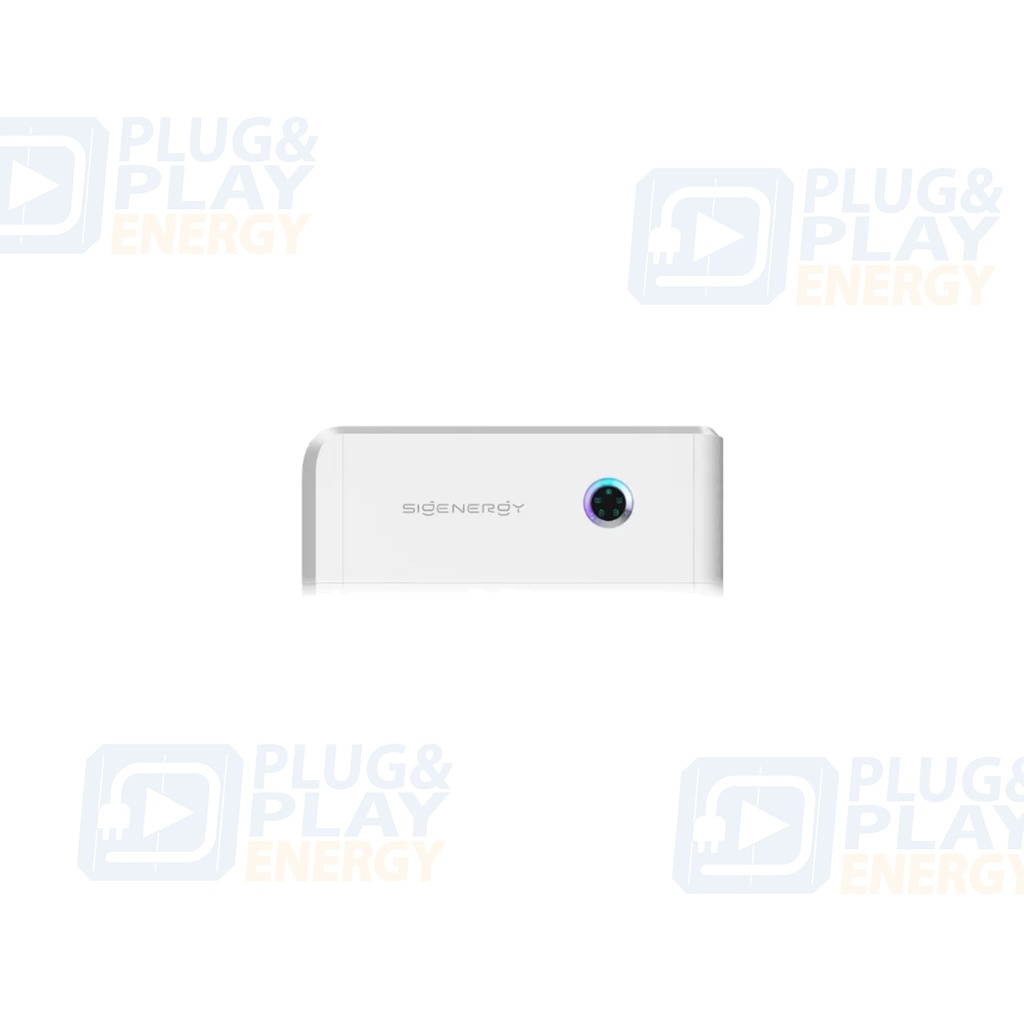

Sigenergy SigenStor EC 30 TP (30kWn) (11010067)

Sigenergy SigenStor EC 30 TP (30kWn) (11010067)

https://pnp.energy/web/image/product.template/6392/image_1920?unique=0166dd3 Sigenergy P&P4288

• 30 kW Trifásico: Potencia nominal y respaldo para comercios e industria. • 4 MPPTs: Hasta 48 kWp de solar con gestión optimizada. • Alta eficiencia 98,4 %: Máximo rendimiento energético. • IP66 y conectividad total: Robustez y control remoto integrado.

Not Available For Sale

  • Power (Wn)
  • Inverter / solar panel / Battery
  • Marca
  • Número de strings FV
  • singlephase/threephase

This combination does not exist.

Contact Us
Power (Wn): 30 K
Inverter / solar panel / Battery: Inversor
Marca: Sigenergy
Número de strings FV: 4
singlephase/threephase: Trifásico
Technical guide

Compatibility and configuration

Key data for the SigenStor EC 30 TP, a three-phase hybrid controller for SigenStor systems.

AC output
30 kW nominal · 33 kVA maximum
PV input
Up to 48 kW PV · 1,100 V · MPPT 160-1,000 V
MPPT trackers
4 MPPT · 1 string per MPPT · 16 A
Battery connection
SigenStor BAT 5.0/8.0 · 1-6 modules · 600-900 V
Backup output
36 kW peak for 10 s · 0 ms switchover
Efficiency
Up to 98.4%
Protection and temperature
IP66 · operation from -30 to 60 °C
Communication
WLAN, Ethernet, RS485 and Sigen CommMod
Weight
36 kg

Technical frequently asked questions

How is the PV input sized?

It supports up to 48 kW PV, 4 MPPT and 16 A per MPPT. Voc, Isc and the voltage range at extreme temperatures must also be checked.

Which batteries are supported?

The linked data sheet specifies SigenStor BAT 5.0 and 8.0, with 1 to 6 modules per controller.

What is required for 0 ms switchover?

It requires a Sigen Energy Gateway, SigenStor battery and controller power above the total load under the manufacturer test conditions.

Official sources published on this product page: data sheet · installation manual · warranty. Specifications are subject to the conditions in the linked documents.
