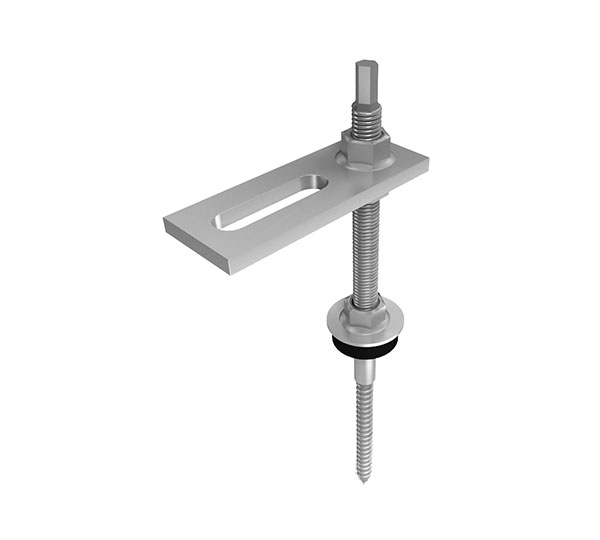

Varilla autorroscante M10x250 pre-ensamblada SolidRail (01V)
P&P1496Varilla autorroscante M10x250 pre-ensamblada SolidRail (01V)
Compatibility and configuration
Official data for K2 SolidRail: common data for the robust rail family
System
K2 SolidRail
Documentary scope
Stud family; M10×250 is not dimensioned in the sheet
Material
Aluminium EN AW-6063 T66
Documented profiles
UltraLight 32 · Light 37 · Medium 42 · Alpin 60
Documented lengths
2.10 · 2.25 · 3.30 · 4.40 · 5.50 m
Documented linear weight
0.70 · 0.85 · 1.30 · 1.70 kg/m
Roof applications
Fibre cement · corrugated or trapezoidal sheet · sandwich panel
Adapter connection
Adjustable for hanger bolts
Cross connection
SingleRail or SolidRail
Technical frequently asked questions
What is its function?
It forms or connects the load-bearing rail of a rooftop PV structure.
What does the official source validate?
The sheet validates the profiles, lengths, linear weights and fixing options in the SolidRail family.
What must be checked before installation?
Confirm profile, actual length, variant, fixing, joints, loads and structural calculation.
Official family source consulted: official data sheet. Specifications are subject to the conditions in the linked document. The source documents the family, not this kit's exact composition; Product.weight is omitted.
