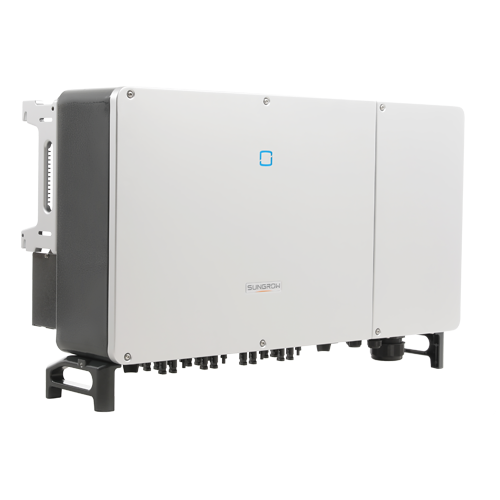

Sungrow SG250HX (250kWn)
Sungrow P&P1223P nominal: 250 kW; 12 entrada MPPT; U salida 800V; IP 66
| Power (Wn): 250 kW |
| singlephase/threephase: Trifásico |
| Function: No híbrido |
| MPPT voltage range (V): 600-1500 |
| MPPT maximal current (A): 30 |
| starting voltage(V): 600 |
| Marca: Sungrow |
| output voltage(v): 800V |
Technical guide
Compatibility and configuration
Official data for Sungrow SG250HX: 250 kVA, 1,500 V string inverter
PV input
1,500 V maximum
MPPT
12 · 600-1,500 V · 2 connectors/MPPT
PV current
30 A × 12 · Isc 50 A × 12
AC output
250 kVA a 30 °C · 800 V
Efficiency
99.0% maximum · 98.8% European
Protection
IP66 · Type II DC/AC SPD
Communication
RS485 · PLC
Dimensions
1.051 × 660 × 363 mm
Weight
99 kg
Technical frequently asked questions
What is its function?
It converts and manages energy according to the documented architecture.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, MPPT, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
