SPF 4/4-40/1000/15 (221) - CC 4in/4out frame. 1000Vdc

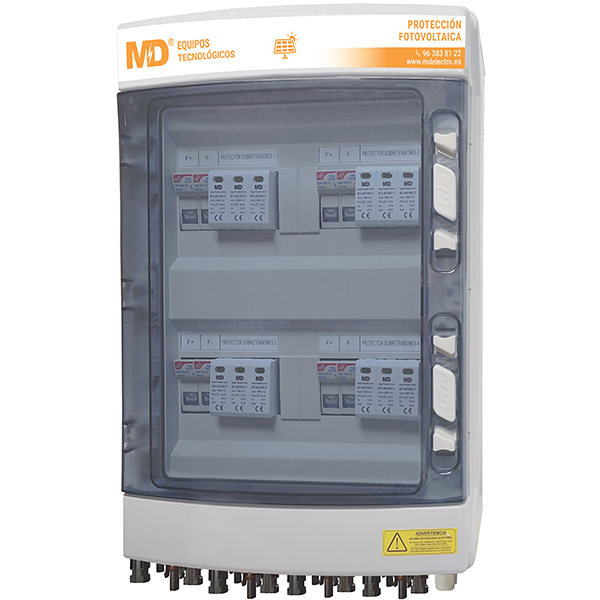

P&P1005Cuadro de protección fotovoltaico para 4 entradas + 4 salidas. 1000Vcc, 15A por entrada, con fusible y base de fusible. Envolvente de 2x12 módulos en ABS. Conectores MC4.
Compatibility and configuration
Official data for SPF 4/4-40/1000/15 (221): DC photovoltaic protection board
Inputs / outputs
4 / 4
Voltage
Ucpv 1,060 Vdc
Protection
Type 1+2 SPD
Maximum discharge
40 kA · 8/20 µs
Fuses
15 A · 10×38
Temperature
-25 a +40 °C
Enclosure
ABS · IP65
Dimensions
2 × 12 DIN · 436 × 310 × 148 mm
Weight
5 kg
Technical frequently asked questions
What is its function?
It protects the installation against the documented electrical risks.
Which system is it compatible with?
Size it to the grid, protected equipment and data-sheet topology.
What must be checked before installation?
Check voltage, current, poles, protection, conductor size and torque.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
