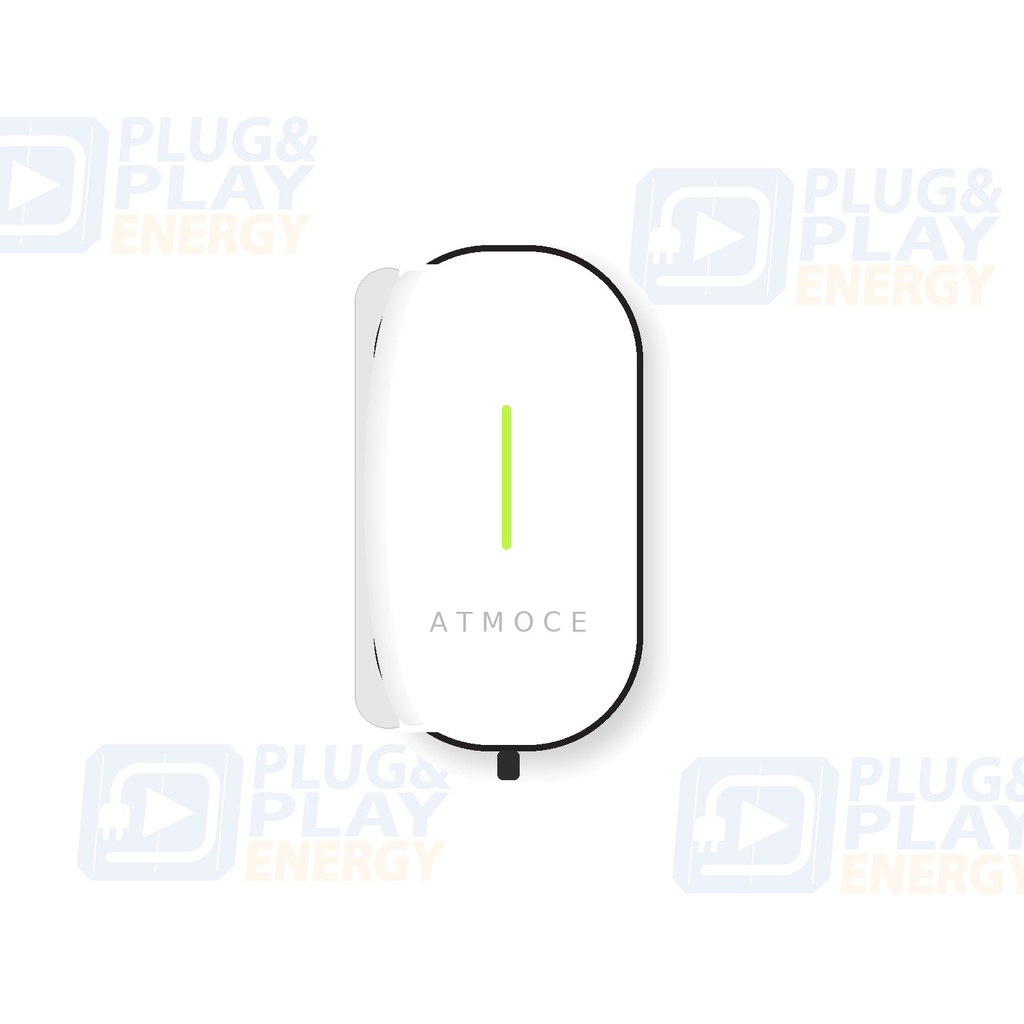

Atmoce MEV-11K-T 11kW three-phase AC VE charger (T2C) (MEV-11K-T)
Atmoce P&P12785Cargador VE AC trifásico de 11 kW (T2C). IP65, IK10, OCPP 1.6/2.0.1J, Wi‑Fi/ETH/Bluetooth.
| singlephase/threephase: Trifásico |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Official data for Atmoce MEV-11K-T: smart electric-vehicle charger
Power
11 kW
Grid
Three-phase 3P+N+PE
Current
16 A
Voltage
380/400/415 V
Connector
Type 2 cable
Protection
IP65 · IK10 · RCD Tipo A 30 mA + 6 mA CC
Communication
Wi-Fi · Ethernet · Bluetooth · OCPP
Installation
Wall or optional pole
Weight
5.8 kg
Technical frequently asked questions
What is its function?
It charges an electric vehicle through a Type 2 cable and configurable modes.
Which system is it compatible with?
It integrates with Atmoce management, the local grid and OCPP as configured.
What must be checked before installation?
Check grid, protection, cable size, contracted power, load balancing and vehicle connector.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
