• Wireless up to 200m: Long-range and stable HaLow WiFi communication
• Universal: Compatible with all Sigen sensors (single/three-phase)
• Dual RS485/Wireless: Flexible wired or wireless connection
• Easy installation: DIN rail mounting and mains power

• Rated AC output power: 125kW (400V, 50/60Hz)
• Number of MPPT: 8 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Rated AC output power: 6 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

• Rated AC output power: 50kW (400V, 50Hz)
• Number of MPPT: 4 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Rated AC output power: 60kW (400V, 50Hz)
• Number of MPPT: 5 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

• Bidirectional 12.5kW: V2X technology to charge the EV and power your home or the grid.
• Ultra-wide range: Full compatibility with VE (150-1000V) and CCS2 connector.
• Cooling: Intelligent air cooling.
• IP66 and zero maintenance: Robust design for outdoors and remote control via app.

• Rated AC output power: 8 kVA (380/400 V, 50/60 Hz)
• Number of MPPT: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

• Rated AC output power: 80 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 6 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

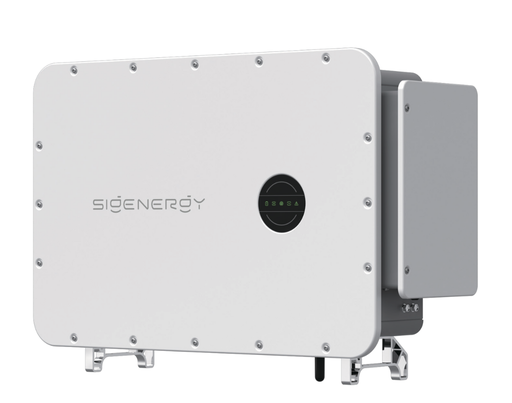

Sigen PV Inverter
Models: 50M1, 60M1, 80M1, 100M1, 110M1

DC input
Max photovoltaic energy CC: 90,000 - 198,000 Wp
Max voltage DC input: 1,100 V
MPPT number: 4 - 8 (depending on model)
Protection

Safety Protection Function: Includes arc fault circuit breaker, DC reverse polarity protection, residual current monitoring, DC/AC type II surge protection, islanding protection, insulation monitoring, and AC overcurrent/overvoltage/short circuit protection.
General data

Measurements (width × height × depth): 918 / 640 / 340 mm
Weight: 68 - 75kg
Operating temperature range: -30 ~ 60 °C
IP protection grade: IP66
Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

• High capacity: Supports up to 9 inverters.
• Storage Compatible: Works with SigenStor, generators and EVs.
• Security: Reverse flow 350 ms and backup 0 ms.
• Uninterrupted power: Continuous supply via PV + ESS / grid / generator.

• Rated AC output power: 80kW (400V, 50Hz)
• Number of MPPT: 6 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

Sigen Energy Gateway C&I 600 kW

Compatible with up to 30 SigenStor inverters connected in parallel
3 circuit breaker positions reserved for SigenStor or other loads
0 ms switch to backup mode for uninterrupted power use
Prepared for connection of generator, heat pump or other controllable loads
350 ms anti-reverse protection against mains and generator
Uninterrupted power supply via PV + ESS/grid/generator

• High capacity: Up to 50 kW and 50 inverters.
• Storage Compatible: Works with SigenStor, generators and EVs.
• Security: Reverse flow 350 ms and backup 0 ms.
• Uninterrupted Power: Supply through PV + ESS / grid / generator.

SigenStack Battery Controller M1 - 0.5C
This is the main controller for the battery modules in the SigenStack series. Its function is to regulate and optimize the performance of the energy storage system in each tower, allowing efficient management of the stored energy. The maximum capacity that can be installed on each tower controller is 252 kWh.

• Compact hybrid inverter: Nominal power of 2 kW, ideal for small homes or autonomous systems
• Flexible integration: Compatible with solar panels, batteries and external generators
• Automatic backup: Instant (0 ms) switch to backup mode for critical loads
• Robust design: Slim metal case, no fans, quiet operation (≤25 dB)

• 4 kW three-phase hybrid inverter: Ideal for medium-sized homes or autonomous systems
• Full integration: Compatible with solar panels, SigenStor batteries and generators
• Automatic backup: Instant (0 ms) switch to backup mode for critical loads
• Robust design: Metal casing, no fans, silent operation (≤25 dB)

• Compatible with multiple Sigen C&I inverter connections for microgrid systems.
• Seamless switching, ensuring 0 ms interruption on the load side.
• Integrated bypass circuit for greater system reliability.
• Compatible with the connection of diesel generators and intelligent control.
• Real-time current monitoring with 350 ms backflow protection.

• 3 kW three-phase hybrid inverter: Ideal for homes and small commercial facilities
• Full integration: Compatible with solar panels, SigenStor batteries and generators
• Automatic backup: Instant (0 ms) switch to backup mode for critical loads
• Robust design: Metal casing, no fans, silent operation (≤25 dB)

• Rated AC output power: 50 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 4 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

Sigen Gateway C600 for HYB
Supports multiple SigenStor connections for microgrid systems
Seamless backup, worry-free power usage for your business
Generator support, more abundant backup power
350ms standby power flow protection for grid and generator
Uninterrupted power supply through PV+ESS/grid/generator
