Atmoce MW-025023-A long horizontal cable

Three-phase, 2 PV Inputs
Includes M-Gateway, T-Relay, protections and toroidals

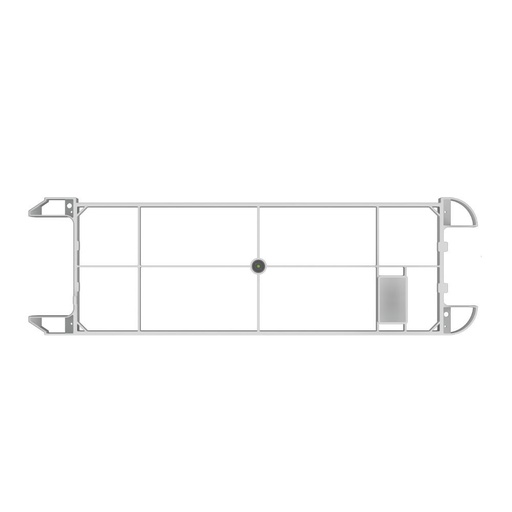

• Sigenergy base structure for Sigenenergy EC 5-in-1 equipment
• Compatible with SigenStor EC SP/TP

S5-GR3P20K
S5 20kW 3Ph Inverter, 2 MPPT, DC SW
Brand: Solis
Manufacturer code: 021903230025
Inverter power: 20kWn

Atmoce MI-800 2-in-1 microinverter, with output power up to 800 W and independent MPPT per input.

Designed for single-phase or three-phase installations, compatible with current photovoltaic modules and plug-and-play integration in the Atmoce ecosystem.

Main features:
- High efficiency up to 98.2%
- Stable PLC communication
- IP67 protection for outdoor installation
- DC voltage less than 60 V
- 25 year warranty
- Quick start-up via app

• Capacity: 5kWh.
• Modular and stackable: Up to 6 modules per stack, scalable up to 30kWh.
• Quick installation: Self-pluggable connectors, commissioning in minutes.
• Smart integration: Compatible with SigenStor EC inverters and mySigen app.

• Rated AC output power: 100 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

Sigen Gateway C60-2
Compatible with multiple SigenStor connections for microgrid systems.
Automatic switching without interruption (0 ms on the load side).
Integrated bypass circuit for greater system reliability.
Supports connection to diesel generator with intelligent control.
Real-time current monitoring with 350 ms anti-reverse protection.

• 3 circuit breaker positions reserved for SigenStor or other loads
• 0ms switch to backup mode, worry-free power usage
• 350 ms reverse power flow protection of grid and generator
• Uninterrupted power supply through PV+ESS/grid/generator

• Rated AC output power: 100 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 8 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

• 5 kW single-phase hybrid inverter: Ideal for medium-sized homes or autonomous systems
• Full integration: Compatible with solar panels, SigenStor batteries and generators
• Automatic backup: Instant (0 ms) switch to backup mode for critical loads
• Robust design: Metal casing, no fans, silent operation (≤25 dB)

FR Intermediate presser 26-46 mm (IC-M28-46/L50)

FR Final presser 28-46 mm (EC-M28-46/L50)

Maximum Voltage: 1500 V
Cable diameter: 5.5 - 9mm
Cable Section: 4 -6 mm2

Maximum Voltage: 1500 V
Cable diameter: 5.5 - 9mm
Cable Section: 4 -6 mm2

Intermediate plate

T Screw

Atmoce MW-025020-B0 extension cable (2m)

- Temperature range: -40°C to +85°C (-40°F to +158°F)
- Protection class: IP68, NEMA 3R
- Output cable length: 1.2 m
- Connector: MC4 / MC4 pluggable
- Maximum system voltage: 1000 V.
- Voltage range: 16-90V
- Maximum input current (IMax.): 15A
- Communication type: radio connection
Cloud Connect with Tigo TAP is required for monitoring.

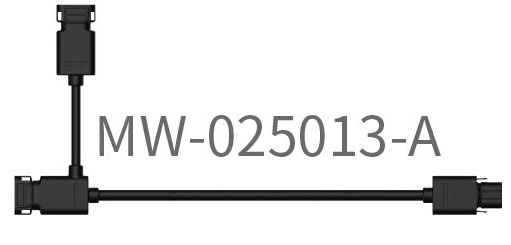

Atmoce MW-025013-A vertical short cable
