• Rated AC output power: 8 kVA (380/400 V, 50/60 Hz)
• Number of MPPT: 2 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.6%

Double crystal module with TOPCon N-Type technology and 500W power.
MC4-EVO2 connectors and 1400mm cable for vertical and horizontal installation.
Black frame and 25-year product warranty.
Measurements 1961 x 1134 x 30 mm.
Pallet: 36 panels
Container: 864 panels

• Rated AC output power: 80 kW (380/400 V, 50/60 Hz)
• Number of MPPT: 6 independent inputs
• MPPT input voltage range: 160–1000 V
• Maximum efficiency: 98.3%

3000VA 48V 230V IP22 (Includes 35A charger)

Rango de temperatura de -40 ° C a + 90 ° C
Máx. Temperatura en el conductor + 120 ° C (20.000 h)
Nominal voltage U0 / U AC1.0 / 1.0 kV DC 1.5 / 1.5 kV
Weather and UV resistance

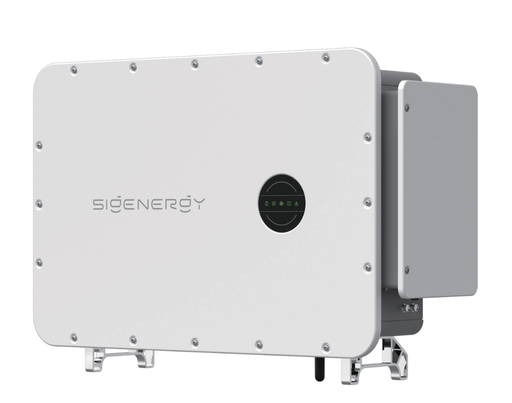

Sigen PV Inverter
Models: 50M1, 60M1, 80M1, 100M1, 110M1

DC input
Max photovoltaic energy CC: 90,000 - 198,000 Wp
Max voltage DC input: 1,100 V
MPPT number: 4 - 8 (depending on model)
Protection

Safety Protection Function: Includes arc fault circuit breaker, DC reverse polarity protection, residual current monitoring, DC/AC type II surge protection, islanding protection, insulation monitoring, and AC overcurrent/overvoltage/short circuit protection.
General data

Measurements (width × height × depth): 918 / 640 / 340 mm
Weight: 68 - 75kg
Operating temperature range: -30 ~ 60 °C
IP protection grade: IP66
Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)

• High capacity: Supports up to 9 inverters.
• Storage Compatible: Works with SigenStor, generators and EVs.
• Security: Reverse flow 350 ms and backup 0 ms.
• Uninterrupted power: Continuous supply via PV + ESS / grid / generator.

Interface expansion module for SolarLog Base

Dynamic power controller with ZERO injection for small installations: Possibility of controlling 1 generator of up to 50 kW. For its function exclusively as a counter it has no power limitation. It does not have a screen. Compliance with the criteria of UNE 217001-IN AND RD244/2019. It integrates a regulator and a counter into the same device, eliminating the need for other external components in power regulation. It allows regulating the power obtained from renewable sources using real power (power without harmonics) and providing physical and logical guarantees to decide what power we should or want to consume from the network. The ultimate objective is to limit or eliminate the export of energy, in the most efficient way, maximizing production while complying with regulatory and technical restrictions. Applicable to single-phase and three-phase installations.

The TCC-CAN control module for the eBick Ultra 175 modular battery from Cegasa.
The BMS, through CAN communication, allows you to send the most relevant battery data such as SOC, temperature, alarms, current and voltage during charging and discharging, among others. In addition, with the eViewer App, through a Bluetooth connection, it allows you to view the module parameters such as battery SOC, cycles and bus voltage, among others.

SSR-2 Celsa Adder

• Rated AC output power: 80kW (400V, 50Hz)
• Number of MPPT: 6 independent inputs (2 chains per MPPT)
• MPPT input voltage range: 160–1000V
• Maximum efficiency: 98.6%

Product model: BF100 (100 kWh)
System Type: Outdoor DC Battery Cabinet
Cabinet capacity: 100 kWh
Cooling: Smart Air
Installation: Outdoor
Application: C&I energy storage (according to project design).

85A MPPT solar charge regulator for 12, 24, 36 or 48 volt battery systems and up to 250V photovoltaic field, from the Victron Energy brand, model SmartSolar MPPT 250/85-Tr VE.Can (with connection for solar input with screw)

Control center and energy manager via Ethernet, includes Energy Meter.

MEGA-fuse 300A/58V for 48V.

SmartSolar MPPT 150/70-TR VE.CAN

Smart Meter TS 65A-3; for recording energy consumption, three-phase, direct measurement

Regulation and monitoring of PV systems. For installations up to 15.99 kWp

Modular electric energy meter that displays power (kWh, kVArh and kVA) and other measurements directly on its backlit LCD screen.
It has been designed for three-phase load measurement with connection via CT and is suitable for applications up to 12000 A.
