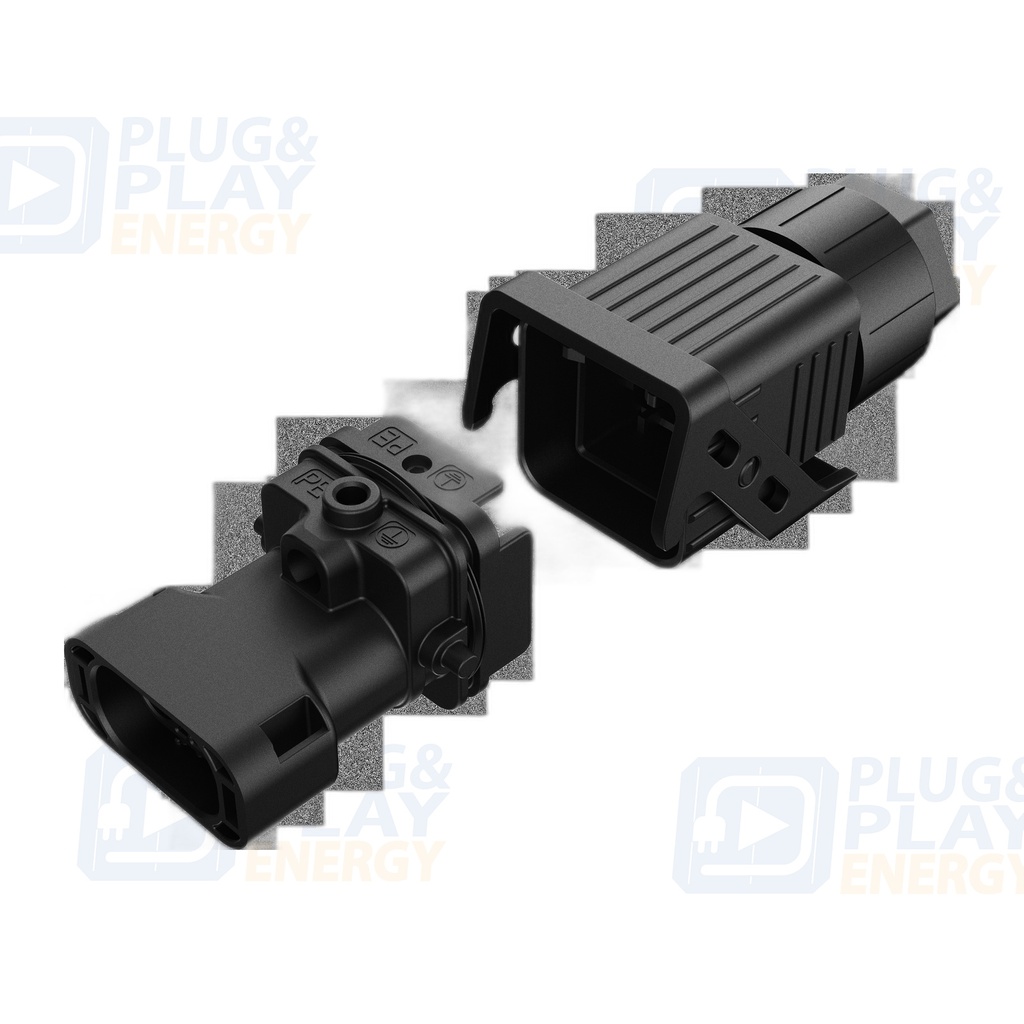

MT-03505-A Three-phase connector (male and female) (22010111)
P&P4626Three-phase cable connector, 35A-5cores
Technical guide
Compatibility and configuration
Official data for MT-03505-A: connector for joining M-CableX AC cables
Documented model
MT-03505-A
Function
Connect AC cables
System
Atmoce M-CableX
Compatibility
MWX-040030-B · MWX-025030-B
Cable
Three-phase · four-core
Spacing
3,0 m
Temperature
90 °C
Voltage
600 V · connector 300 V
Application
Portrait PV installation
Technical frequently asked questions
What is its function?
It joins two AC-cable sections in the M-CableX system.
Which system is it compatible with?
It is documented for MWX-040030-B and MWX-025030-B three-phase cables.
What must be checked before installation?
Check cable model, voltage, conductors, unused terminals and sealing.
Official source published on this product page: data sheet. Specifications are subject to the conditions in the linked document. The source does not publish an unambiguous weight; Product.weight is omitted.
