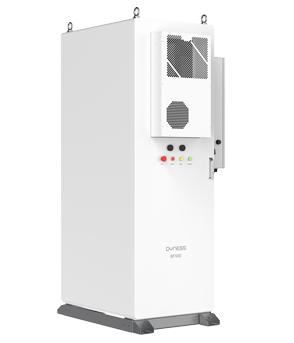

Dulap pentru baterii DC Dyness BF100 (100 kWh).
Dyness P&P4514Modelo de producto: BF100 (100 kWh) Tipo de sistema: Armario de baterías DC para exterior Capacidad por armario: 100 kWh Refrigeración: Aire inteligente Instalación: Exterior Aplicación: Almacenamiento energético C&I (según diseño del proyecto).
| Power (Wn): 100 kWh |
| Batería: Litio |
| Inverter / solar panel / Battery: Batería |
| warranty: 5 años |
Compatibility and configuration
Official data for Dyness BF100-C100: 100 kWh air-cooled DC battery cabinet
Energy
100 kWh nominal
Voltage
324,8-403,2 Vcc
Current
140 A nominal · 160 A maximum
Packs
7 × 14,33 kWh
Dimensions
725 × 1.224 × 2.258 mm
Protection
IP55 · aerosol/perfluorohexanona
Communication
Ethernet · 4G · RS485
Temperature
-20 a +50 °C
Weight
1,300 ±100 kg
Technical frequently asked questions
What is its function?
It stores energy in an integrated DC cabinet with BMS, EMS and fire protection.
Which system is it compatible with?
Combine it with a PCS/inverter and protection compatible with BF100-C100.
What must be checked before installation?
Check C100 model, voltage, current, cooling, communications and civil works.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
