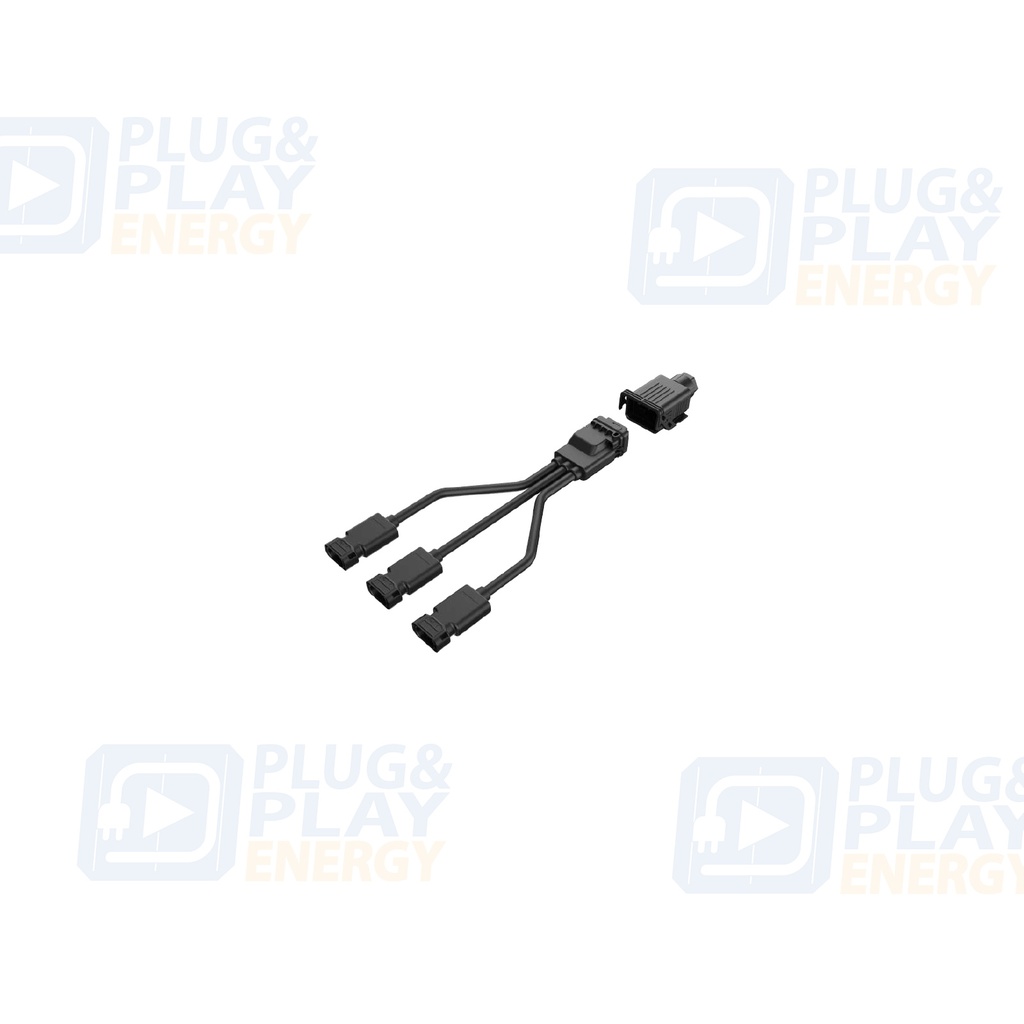

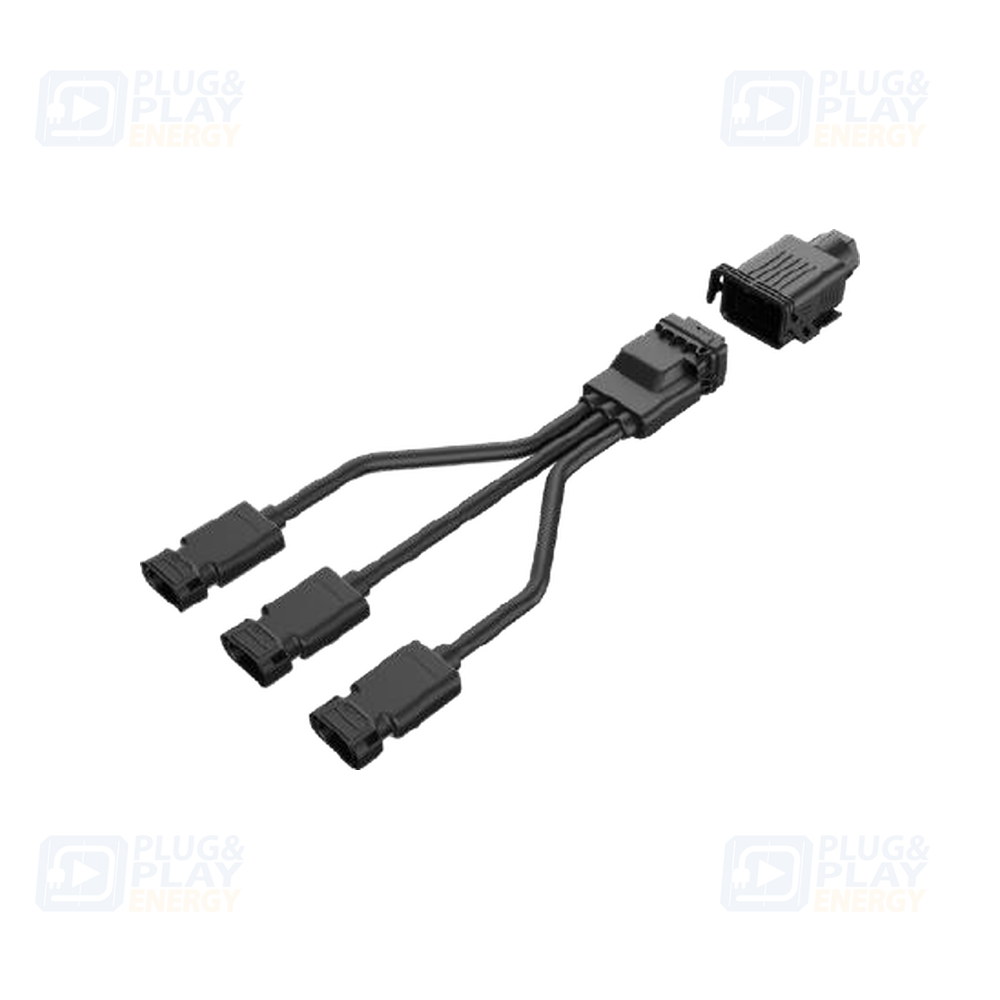

Atmoce MT-03205-A 3-Phase connector (22010079)
Atmoce P&P4367Adaptador de unión trifásico
| singlephase/threephase: Trifásico |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Official data for Atmoce MT-03205-A: three-phase quick adaptor for rooftop connections
Reference
MT-03205-A
Type
Three-phase junction adaptor
Dimensions
323 × 62 × 52 mm
Temperature
-40 a +90 °C
Voltage
500 Vca máximos
Current
32 A por rama · 5 núcleos
Conductor size
2,5-6 mm²
Internal wire diameter
4 mm
System
Atmoce M-Cable
Technical frequently asked questions
What is its function?
It replaces a junction box in the Atmoce three-phase architecture.
Which system is it compatible with?
Use it with compatible Atmoce M-Cable and equipment.
What must be checked before installation?
Check phases, cable size, current, voltage and diagram.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The source does not publish an unambiguous total weight for this item, so structured weight is omitted.
