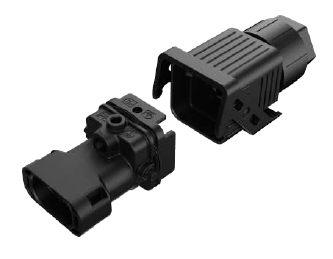

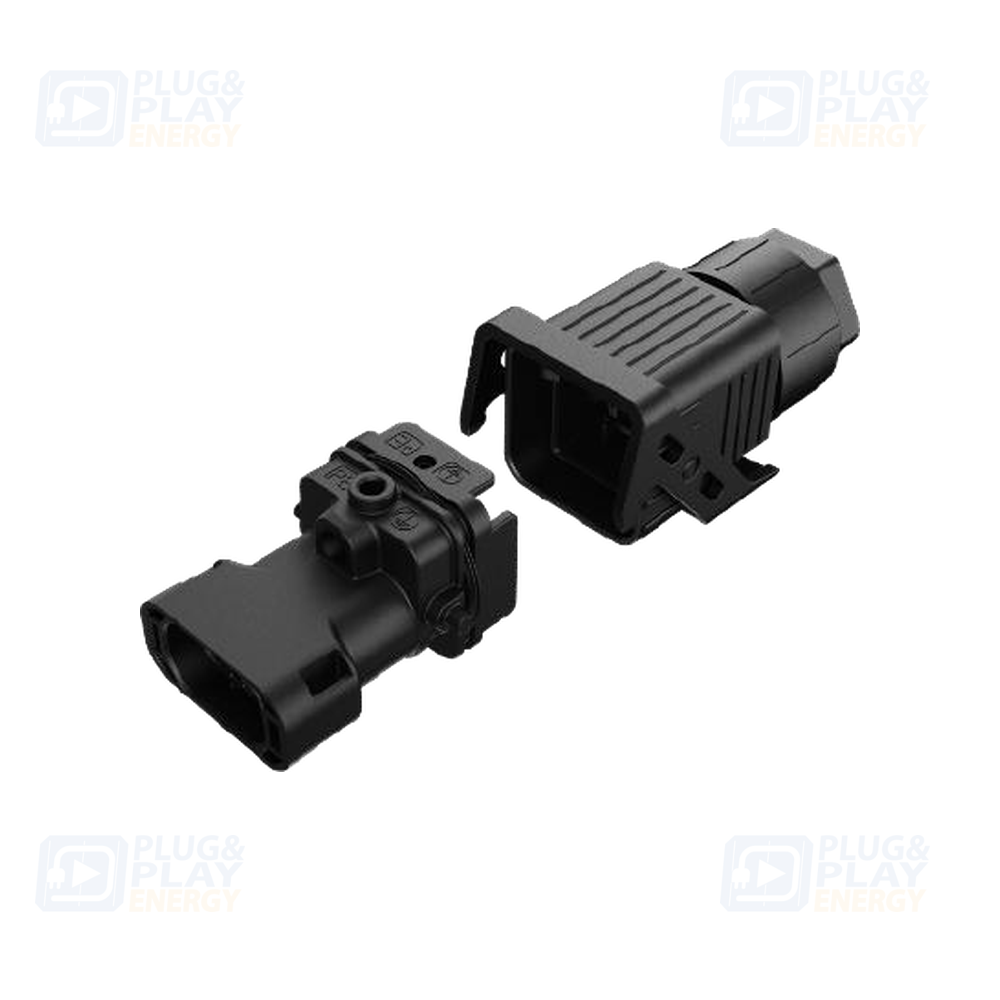

Atmoce MT-04003-A 1-Phase connector (22010078)
Atmoce P&P4366Single-phase junction adaptor
| singlephase/threephase: Monofásica |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Official data for Atmoce MT-04003-A: single-phase quick adaptor replacing junction boxes
Reference
MT-04003-A
Type
Single-phase junction adaptor
Dimensions
117 × 43 × 48 mm
Temperature
-40 a +90 °C
Voltage
300 Vac maximum
Current
40 A · 3 cores
Conductor size
2,5-6 mm²
System
Atmoce M-Cable architecture
Installation
Quick connector; cable tolerance ±50 mm
Technical frequently asked questions
What is its function?
It replaces a traditional junction box in the Atmoce single-phase architecture.
Which system is it compatible with?
It is used with compatible Atmoce M-Cable and equipment.
What must be checked before installation?
Confirm single-phase grid, conductor size, current, voltage and wiring diagram.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The linked source does not publish a specific weight for this item, so structured weight is omitted.
