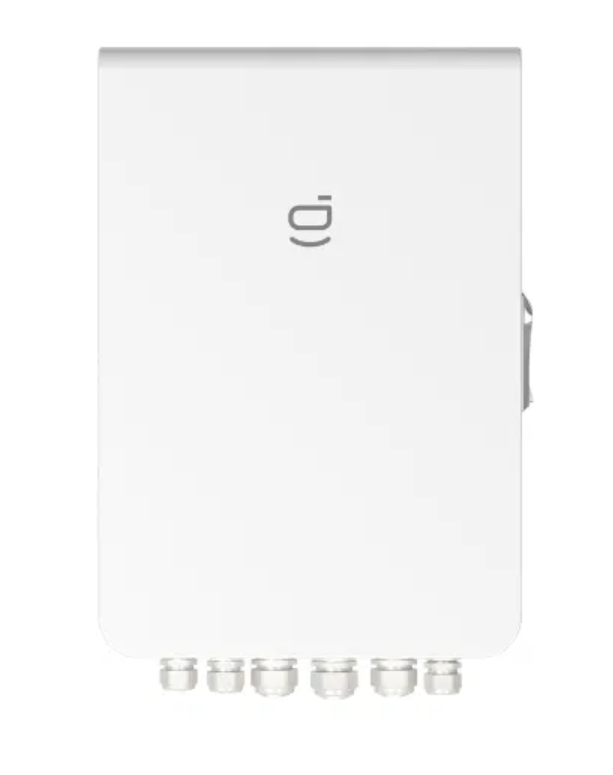

Sigenergy Sigen Gateway HomePro TP 30kW (11110031)

https://pnp.energy/web/image/product.template/6366/image_1920?unique=1fb1175 Sigenergy P&P4261

• Respaldo inmediato: Cambio 0 ms y suministro continuo vía PV + ESS / red / generador • Compatible con cargas y SigenStor: Hasta 30 kW y dispositivos controlables (generador, bomba de calor) • Protección avanzada: Flujo inverso 350 ms para red y generador • Conexiones de potencia: Soporta hasta 100 A entrada CA, inversor 32 A y generador/carga opcional 14,5 kW

Not Available For Sale

  • singlephase/threephase
  • Marca
  • warranty

This combination does not exist.

Contact Us
singlephase/threephase: Trifásico
Marca: Sigenergy
warranty: 10 años
Technical guide

Compatibility and configuration

Key data for the Sigen Gateway HomePro TP for three-phase backup in a SigenStor system.

Grid connection
three-phase · 380/400/415 V
Nominal power
30 kW · 45.6 A
Backup switchover
0 ms under the stated test conditions
Inverter connection
1 inverter · up to 30 kW
Smart port
Generator with two-wire start
Protection
IP54 · overvoltage category III
Communication
Ethernet, RS485 and dry contact
Installation and temperature
Wall-mounted · operation from -30 to 55 °C
Weight
20 kg according to the data sheet

Technical frequently asked questions

Which equipment is required for backup?

Seamless switchover requires the Gateway to be used with Sigen Energy Controller and Sigen Battery, together with the Sigenergy load conditions.

Does it support a generator?

Yes. The smart port supports a generator and two-wire start when wired according to the manufacturer diagram.

Can it back up the whole home?

It can be configured for whole-home or priority-load backup, subject to the 30 kW nominal limit and system design.

Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. Manufacturer documents may reflect different revisions; the values from the linked data sheet are shown.
