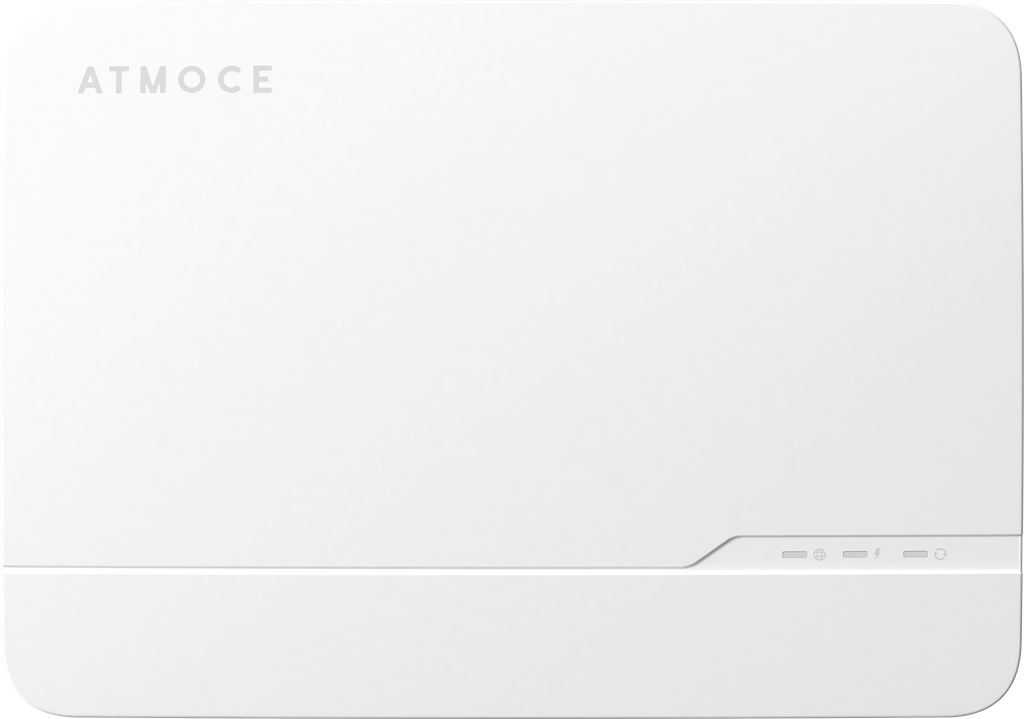

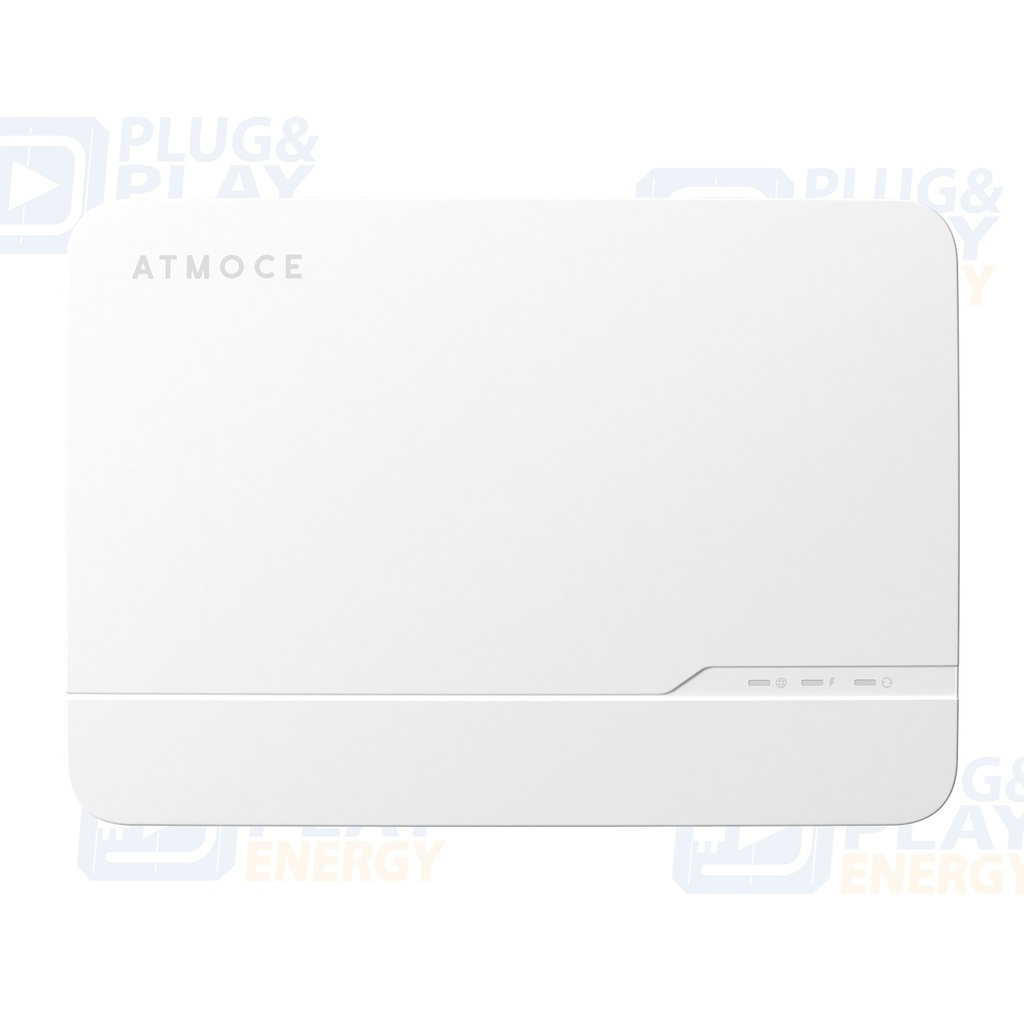

Atmoce MC100L, 1-Phase (1 PV input) (81031006)
Atmoce P&P4243AC box with Light Gateway, Relay Mono, CTs, breakers, RCDs, for 1-phase system
| singlephase/threephase: Monofásica |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Key data for the Atmoce MC100L, a single-phase combiner for PV, battery and monitoring integration.
Grid
Single-phase · 220/230/240 V · 50/60 Hz
PV branches
1 · up to 5 kW PV
Battery
Up to 7 kWh · 32 A maximum
Integrated protection
Circuit breakers, RCD and surge protection
Metering
PV, battery and consumption CTs depending on configuration
Communication
PLC, Wi-Fi, BLE, Ethernet and CAN
Environmental protection
Outdoor IP65 · -30 to 50 °C
Commissioning
Atmoce Cloud and ATMOZEN app
Weight
2.4 kg according to the data sheet
Technical frequently asked questions
What does the combiner integrate?
It integrates a gateway, protection devices, current sensors and interfaces to coordinate microinverters, battery, grid and loads.
What are the PV and battery limits?
It supports 1 PV branch, up to 5 kW PV and up to 7 kWh of battery according to the data sheet.
Is it suitable for outdoor use?
The enclosure is rated IP65 for indoor or outdoor use, subject to the location, wiring and temperature requirements in the manual.
Official sources published on this product page: data sheet · installation manual. Specifications are subject to the conditions in the linked documents.
