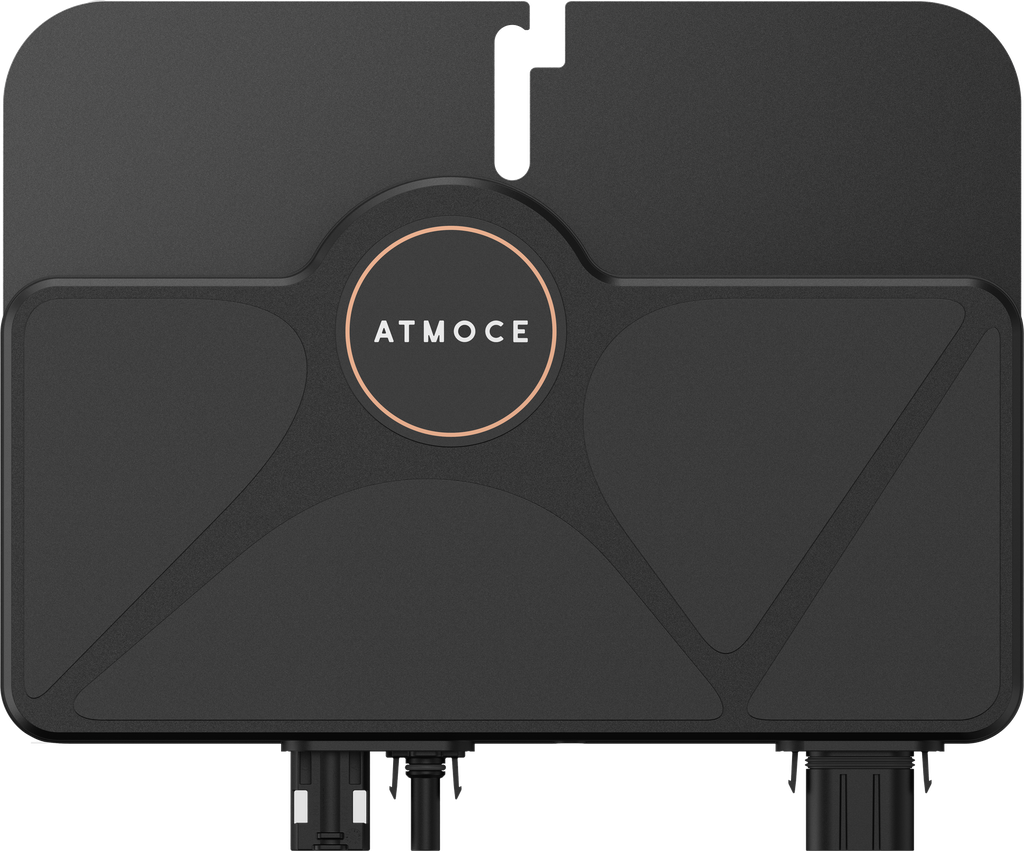

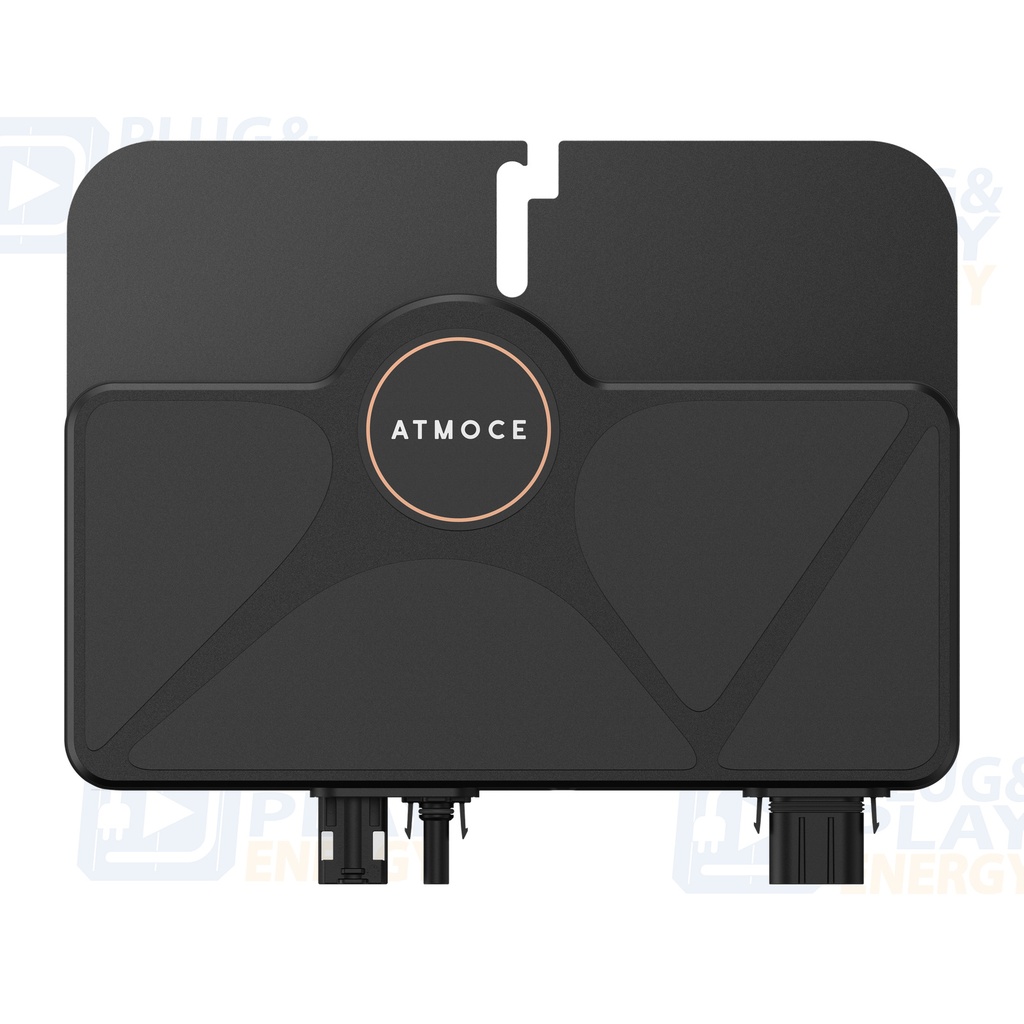

Atmoce MI-500 Microinversor (0.5kWn) (81011008)
Atmoce P&P4242Micro-inverter 500 VA max power
| Power (Wn): 500 W |
| singlephase/threephase: Monofásica |
| Inverter / solar panel / Battery: Inversor |
| Marca: Atmoce |
Technical guide
Compatibility and configuration
Key data for the Atmoce MI-500 microinverter for PV module and AC branch selection.
Output power
500 W nominal
PV module
Compatible power up to 700 W
Input window
16-60 V · maximum power tracking 33-55 V
Input current
16 A continuous · 20 A short circuit
Units per branch circuit
7 on 20 A · 9 on 25 A
Efficiency
97.4% peak · 97.0% EU · 99.9% MPPT
Protection
Outdoor IP67 · -40 to 65 °C · below 25 dB
Communication and warranty
PLC · 25 years
Weight
1.3 kg without bracket
Technical frequently asked questions
Which PV module can be connected?
It supports modules up to 700 W when voltage is 16 to 60 V, maximum power voltage is 33 to 55 V, and 16 A continuous or 20 A short-circuit current are not exceeded.
How many microinverters are supported per circuit?
The data sheet states up to 7 units on a 20 A circuit and 9 on a 25 A circuit. Project electrical calculations and local regulations take precedence.
How is it monitored?
It uses PLC communication and module-level management within the Atmoce architecture.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
