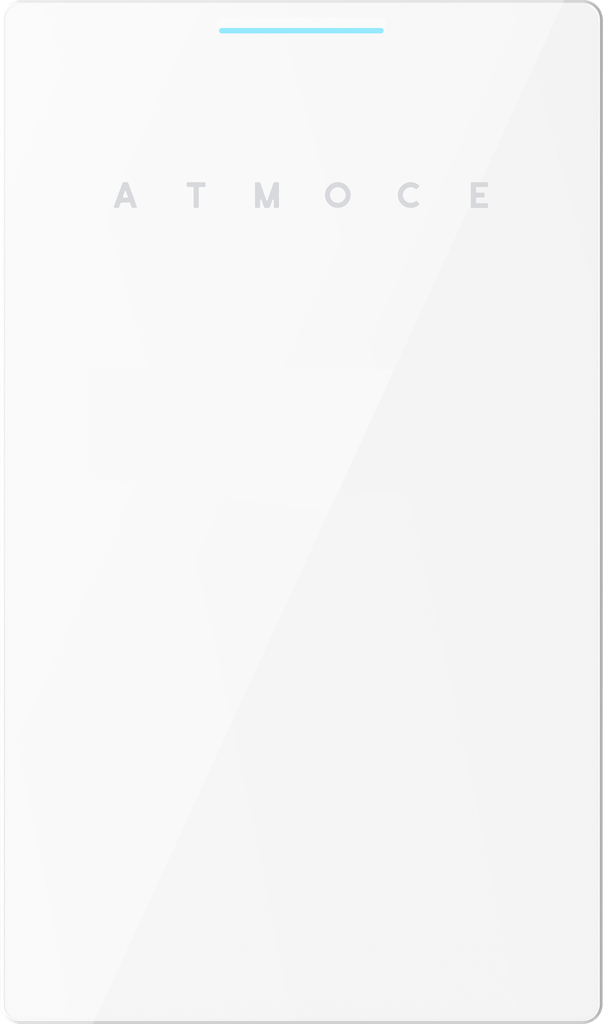

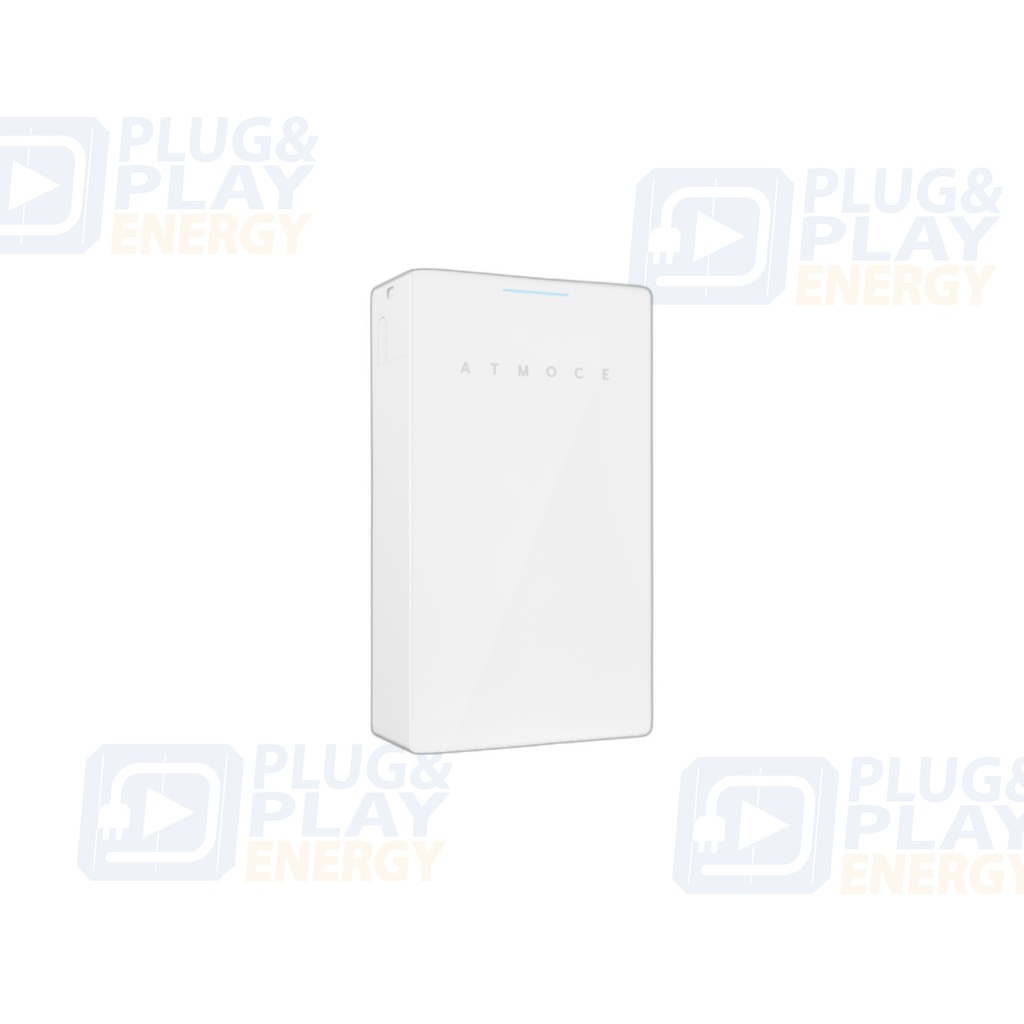

Atmoce MS-7K-U battery (7kWh) (81041001)
Atmoce P&P4240AC-coupled System 7kWh/5kVA
| Power (Wn): 7 kWh |
| Batería: Litio |
| Inverter / solar panel / Battery: Batería |
| Marca: Atmoce |
| warranty: 15 años |
| protection level: IP66 |
Technical guide
Compatibility and configuration
Key data for the AC-coupled Atmoce MS-7K-U battery in new or existing systems.
Usable capacity
7.0 kWh
AC power
4.5 kVA continuous · 5 kVA maximum · 3.75 kVA input
Scalability
Up to 126 kWh with one M-Gateway
Integration
AC coupling · single or three phase · third-party PV and EMS
Efficiency
90% AC round trip · 96% DC
Technology and cycles
LFP · 10,000 cycles
Protection and installation
IP66 · floor or wall · operation from -20 to 55 °C
Monitoring and warranty
Atmoce Cloud and ATMOZEN app · 15 years
Weight
73.5 kg without bracket · 75 kg with mounting plate
Technical frequently asked questions
Can it integrate into an existing PV installation?
Yes. As an AC-coupled battery, the data sheet states compatibility with third-party PV systems and EMS through the Atmoce architecture.
Does it work in single-phase and three-phase systems?
Yes. The same model supports single-phase or three-phase grid connection within the manufacturer ranges.
What is the maximum scalable capacity?
The stated maximum scalable capacity is 126 kWh with one M-Gateway. The final design must be checked against the installation documentation.
Official sources published on this product page: data sheet · installation manual · warranty manual. Specifications are subject to the conditions in the linked documents.
