For homes and small professional projects.

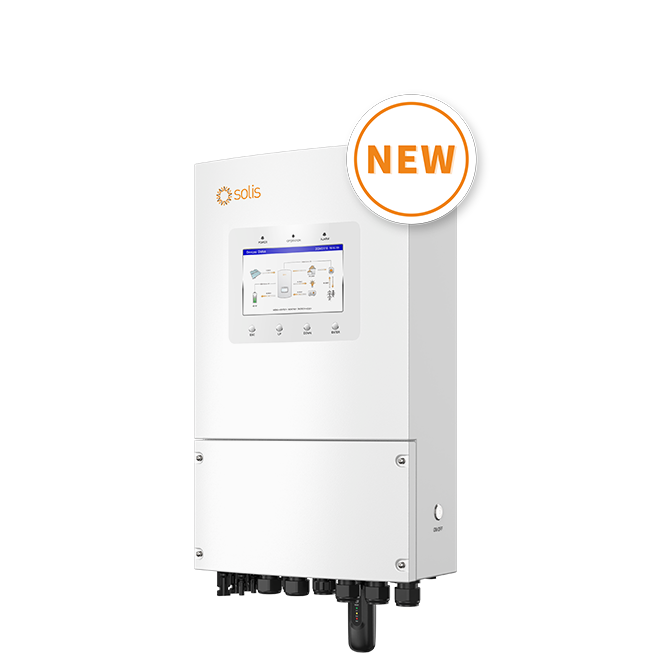

Solis S6-EH1P8K-L-PLUS (8 kW, single-phase hybrid, single-phase meter included)
Solis P&P4051Potencia inversor: 8kWn
| Power (Wn): 8 K |
| singlephase/threephase: Monofásica |
| Function: Híbrido con backup |
| Inverter / solar panel / Battery: Inversor |
| Marca: Solis |
| warranty: 10 años |
| Número de strings FV: 4 |
Technical guide
Compatibility and configuration
Key data for the Solis S6-EH1P8K-L-PLUS, a low-voltage single-phase hybrid inverter.
AC output
8 kW nominal · 220/230 V
PV input
16 kW recommended · 12.8 kW usable · 500 V maximum
MPPT and strings
2 MPPT / 4 strings · 32/32 A · Isc 40/40 A
Battery
Li-ion or lead-acid · 40-60 V · 8 kW · 190 A
Backup
8 kW nominal · 200% for 10 s · <4 ms switchover
Efficiency
96.2% maximum · 96.1% EU
Protection and temperature
IP66 · -40 to 60 °C · optional AFCI 2.0
Control and communication
7-inch LCD and Bluetooth · RS485/CAN · optional Wi-Fi, GPRS and LAN
Weight
23.5 kg
Technical frequently asked questions
Which battery does it support?
It supports 40-60 V Li-ion or lead-acid batteries. Exact BMS compatibility must be checked against the current Solis list.
How much PV power can be installed?
The data sheet recommends up to 16 kW of PV array and limits usable PV input power to 12.8 kW.
Does it support backup and a generator?
Yes. It states a backup output, 200% overload for 10 seconds, <4 ms switchover and a generator input.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
