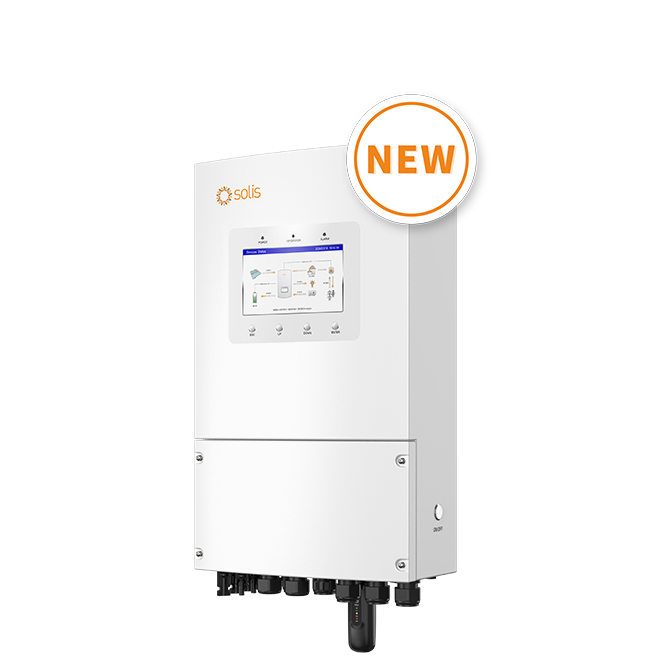

Solis S6-EH1P6K-L-PLUS (6 kW, single-phase hybrid)

Potencia inversor: 6kWn

Power (Wn)
singlephase/threephase
Function
Inverter / solar panel / Battery
Marca
warranty
Número de strings FV

This combination does not exist.

Power (Wn): 6 K

singlephase/threephase: Monofásica

Function: Híbrido con backup

Inverter / solar panel / Battery: Inversor

Marca: Solis

warranty: 10 años

Número de strings FV: 2

Documents

Solis_datasheet_S6-EH1P(3-10)K-L-PLUS_GLOBAL_V2,4_202506.pdf

Technical guide

Compatibility and configuration

Key data for the Solis S6-EH1P6K-L-PLUS, a low-voltage single-phase hybrid inverter.

AC output

6 kW nominal · 220/230 V

PV input

12 kW recommended · 9.6 kW usable · 500 V maximum

MPPT and strings

2 MPPT / 2 strings · 16/16 A · Isc 20/20 A

Battery

Li-ion or lead-acid · 40-60 V · 6 kW · 135 A

Backup

6 kW nominal · 200% for 10 s · <10 ms switchover

Efficiency

96.2% maximum · 96.1% EU

Protection and temperature

IP66 · -40 to 60 °C · optional AFCI 2.0

Control and communication

7-inch LCD and Bluetooth · RS485/CAN · optional Wi-Fi, GPRS and LAN

Weight

23 kg

Technical frequently asked questions

Which battery does it support?

It supports 40-60 V Li-ion or lead-acid batteries. Exact BMS compatibility must be checked against the current Solis list.

How much PV power can be installed?

The data sheet recommends up to 12 kW of PV array and limits usable PV input power to 9.6 kW.

Does it support backup and a generator?

Yes. It states a backup output, 200% overload for 10 seconds, <10 ms switchover and a generator input.

Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.

AC-side storage option

Add Atmoce storage without replacing this inverter

In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.

ResidentialAtmoce MS-7K-U · 7 kWh

For homes and small professional projects.

Commercial and industrialAtmoce MS-16K-U · 16 kWh

For C&I projects that require a higher-capacity solution.

Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.

Check compatibility with Atmoce See how AC retrofit works
