For homes and small professional projects.

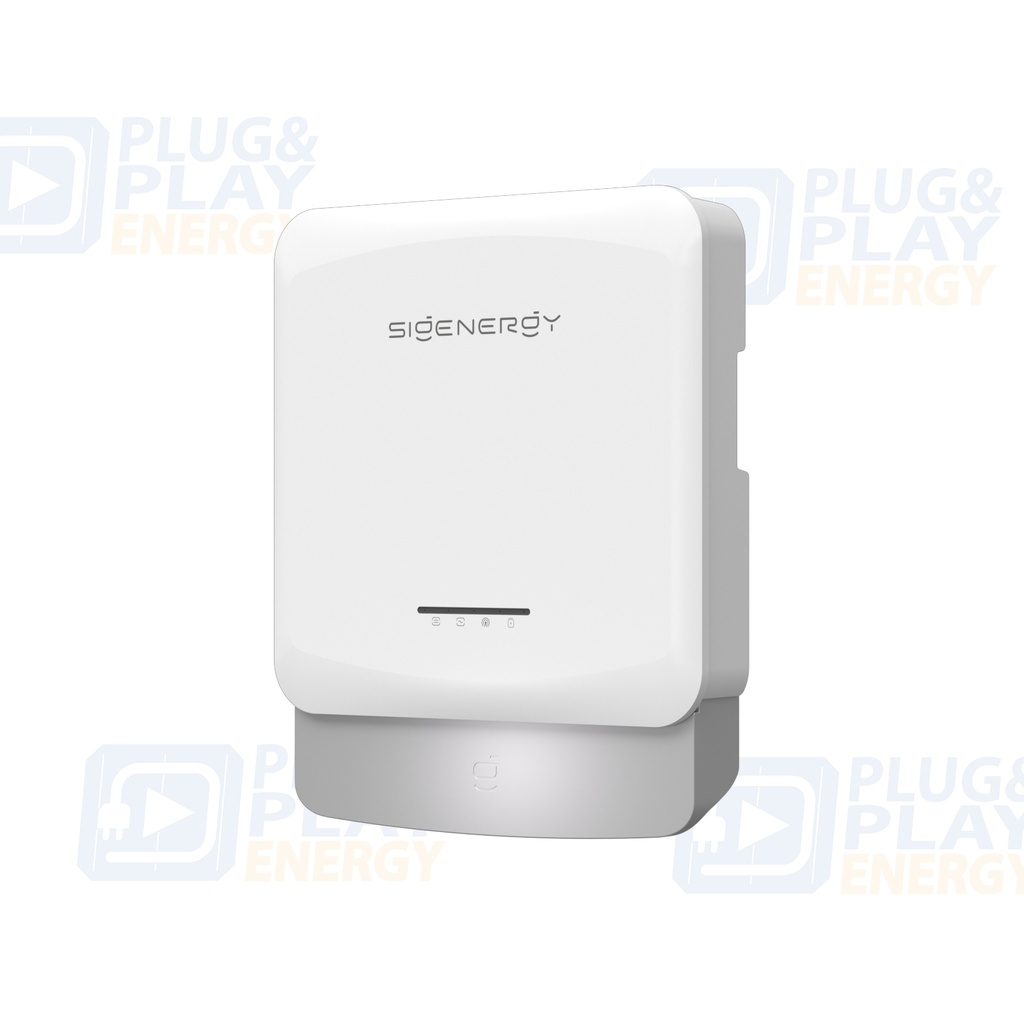

Sigenergy Sigen Hybrid 12.0 TP2 (12kWn) (11010186)
Sigenergy P&P4024• Potencia trifásica: Inversor híbrido de 12 kW para uso residencial y comercial • Integración completa: Combina energía solar, baterías, red y generador en un solo equipo • Respaldo inmediato: Cambio instantáneo 0 ms para cargas críticas • Diseño robusto: Compacto, silencioso y resistente con protección IP66 para exteriores
| Power (Wn): 12 K |
| singlephase/threephase: Trifásico |
| Inverter / solar panel / Battery: Inversor |
| Marca: Sigenergy |
| warranty: 10 años |
Documents
Technical guide
Compatibility and configuration
Official data for Sigen Hybrid 12.0 TP2: battery-ready three-phase hybrid inverter
AC output
12 kW · 13.2 kVA máx. · 20.1 A máx.
PV input
24 kWp · 1.100 V máximos
MPPT
2 · 160-1.000 V
Battery
SigenStor BC + BAT · 1-6 módulos · 600-900 V
Backup
24 kW pico / 10 s
Efficiency
99,0% máxima
Protection
IP66 · SPD CC/CA Tipo II · AFCI
Communication
WLAN · Fast Ethernet · RS485 · CommMod
Weight
19.5 kg
Technical frequently asked questions
What is its function?
It converts and manages energy as a documented inversor híbrido.
Which system is it compatible with?
Combine it only with expressly compatible grid, battery and accessories.
What must be checked before installation?
Check voltages, currents, MPPT, protection, wiring and firmware.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
AC-side storage option
Add Atmoce storage without replacing this inverter
In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.
Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.
