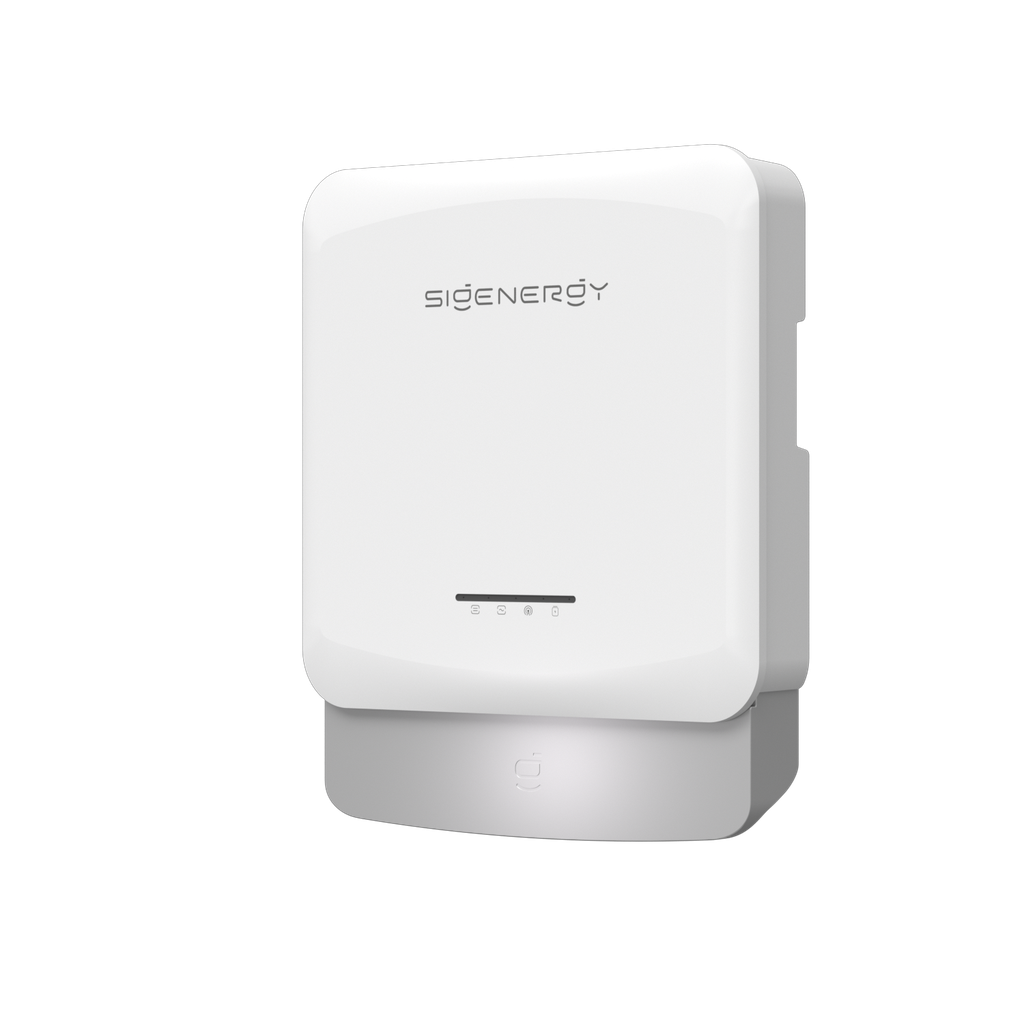

Sigenergy Sigen Hybrid 6.0 SP2 (6kWn) (11020010)

Sigenergy Sigen Hybrid 6.0 SP2 (6kWn) (11020010)

https://pnp.energy/web/image/product.template/6107/image_1920?unique=5681257 Sigenergy P&P4017

• Potencia nominal de salida en CA: 6 kW (220/230/240 V, 50/60 Hz) • Número de MPPT: 2 entradas independientes • Rango de voltaje de entrada en MPPT: 160–1000 V • Eficiencia máxima: 98.6%

Not Available For Sale

  • Power (Wn)
  • singlephase/threephase
  • Inverter / solar panel / Battery
  • Marca
  • warranty
  • Número de strings FV

This combination does not exist.

Contact Us
Power (Wn): 6 K
singlephase/threephase: Monofásica
Inverter / solar panel / Battery: Inversor
Marca: Sigenergy
warranty: 10 años
Número de strings FV: 2
Technical guide

Compatibility and configuration

Key data for the Sigen Hybrid 6.0 SP2, a battery-ready single-phase inverter.

AC output
6 kW nominal · 6.6 kVA maximum
PV input
Up to 12 kW PV · 600 V maximum · MPPT 50-550 V
MPPT trackers
2 MPPT · 16 A maximum per MPPT
Battery connection
SigenStor BC + SigenStor BAT · 1-6 modules
Backup
9 kW peak for 10 s · 0 ms switchover
Efficiency
Up to 98.6%
Protection and installation
IP66 · wall-mounted · -30 to 60 °C · below 25 dB
Communication
WLAN, Ethernet, RS485 and Sigen CommMod
Weight
11.5 kg according to the data sheet

Technical frequently asked questions

Which battery does it use?

It uses SigenStor BAT batteries through the SigenStor BC controller, with 1 to 6 modules.

How much PV power does it support?

It supports up to 12 kW PV, with two MPPT, 600 V maximum and 16 A per MPPT.

Does it provide backup output?

Yes. The data sheet states a 9 kW peak for 10 seconds and 0 ms switchover under the manufacturer conditions.

Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The manufacturer marks the data sheet as preliminary.

AC-side storage option

Add Atmoce storage without replacing this inverter

In grid-connected installations with a compatible architecture, Atmoce storage can be added on the AC side.

ResidentialAtmoce MS-7K-U · 7 kWh

For homes and small professional projects.

Commercial and industrialAtmoce MS-16K-U · 16 kWh

For C&I projects that require a higher-capacity solution.

Important: The integration is AC-coupled: it does not imply connection to the battery port or direct DC compatibility. Phases, metering/EMS, backup, protection and system topology must be validated before quoting.

Check compatibility with AtmoceSee how AC retrofit works
