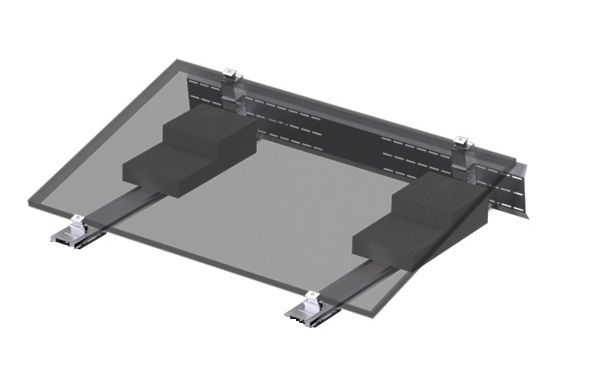

FR kit Ascent 1.1-N/S (+1 module)
P&P3946FR kit Ascent 1.1-N/S (+1 módulo)
Documents
Compatibility and configuration
Official data for PV-ezRack Ascent 1.1: rail-free low-ballast system for flat roofs
System
PV-ezRack Ascent 1.1
Application
Flat roof up to 5°
Tilt
10° / 15°
Module orientation
North-South · East-West · landscape
Roof
Concrete · membrane · bitumen
Module size
1,700-2,400 × 990-1,150 mm · 28-40 mm frame
Material
AL6005-T5 · MAC Steel · SUS304 · PP/EPDM
Certification
TÜV · CE · wind tunnel
System warranty
12 years
Technical frequently asked questions
What is its function?
It supports landscape modules on flat roofs with a low-ballast structure.
Which system is it compatible with?
The sheet documents the Ascent 1.1 family; the exact contents of the commercial extension are not inferred.
What must be checked before installation?
Check orientation, angle, module, roof, ballast, wind and snow loads and bill of materials.
Official source published on this product page: data sheet. Specifications are subject to the conditions in the linked document. The source documents the family, not the exact kit contents; Product.weight is omitted.
