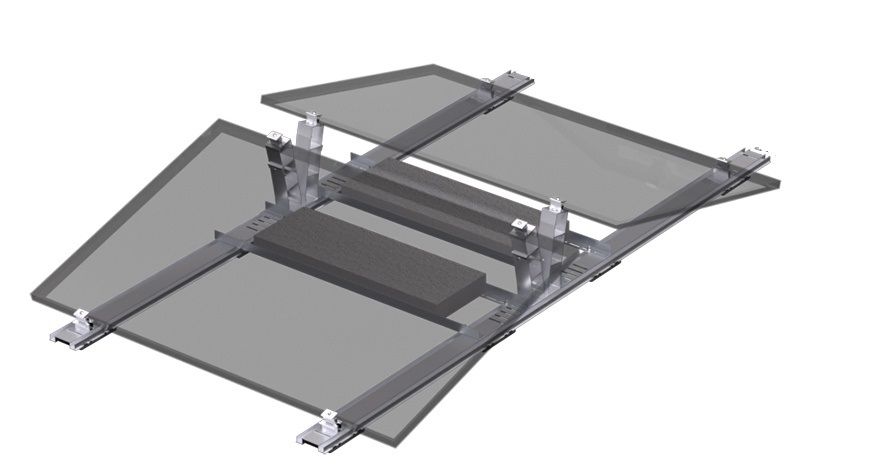

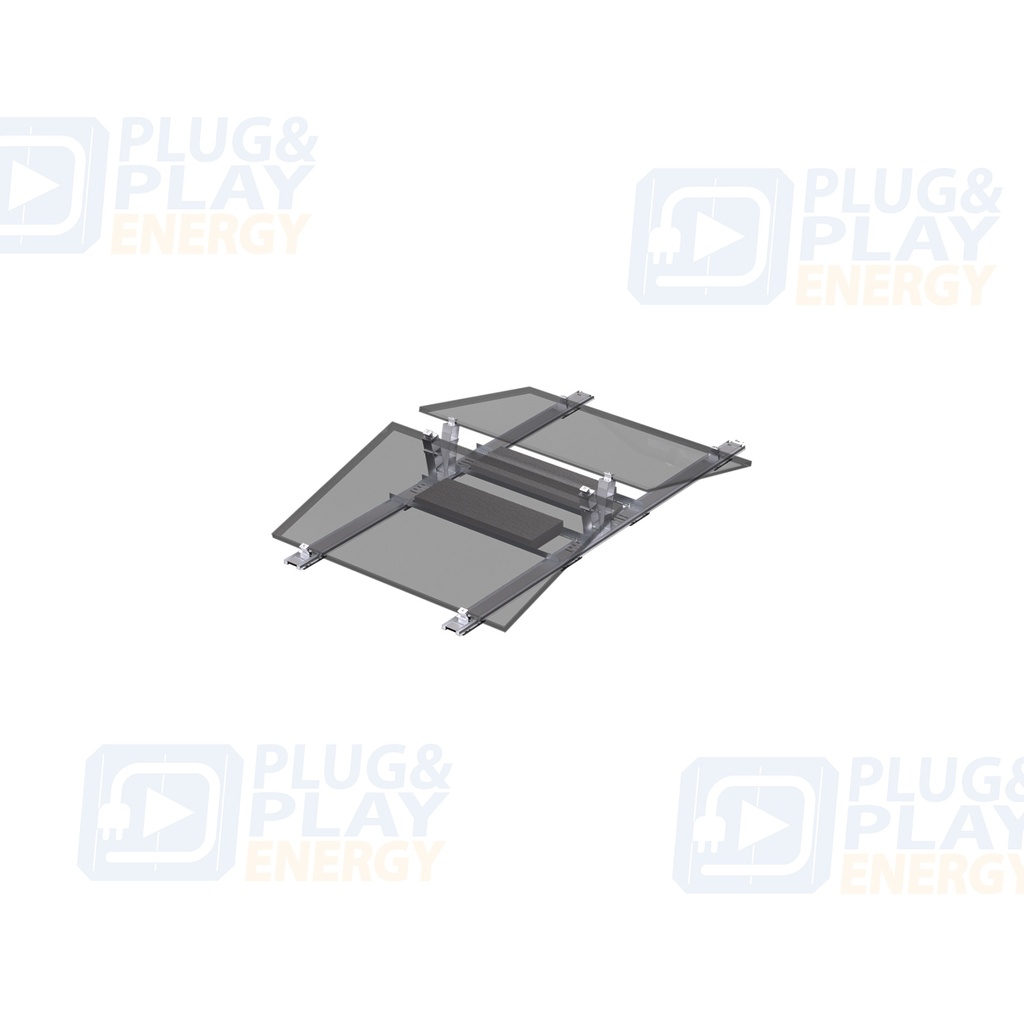

FR kit Ascent Wings 1.1 (+2 east-west modules)
P&P3944FR kit Ascent Wings 1.1 (+2 módulos este-oeste)
Compatibility and configuration
Official data for Ascent Wings 1.1 Extension: east-west two-module extension for a flat roof
System
PV-ezRack Ascent 1.1
Application
Flat roof up to 5°
System angle
10° / 15°
Orientation
North-south or east-west · landscape
Module format
1.700-2.400 × 990-1.150 × 28-40 mm
Material
AL6005-T5 · MAC steel · SUS304 · PP/EPDM
Standards
Eurocode 0-9 · BRE489 · AS/NZS1170.2 · JISC8955 · ASCE 7-10
Certification
TÜV · CE · wind tunnel
Warranty
25 years
Technical frequently asked questions
What is its function?
It performs the specified structural function within the Ascent 1.1 system.
Which system is it compatible with?
Combine it only with compatible Ascent 1.1 components.
What must be checked before installation?
Check orientation, angle, module, ballast, wind and design.
Official sources published on this product page: system documentation. Specifications are subject to the conditions in the linked documents. The source does not publish an unambiguous total weight for this item, so structured weight is omitted.
