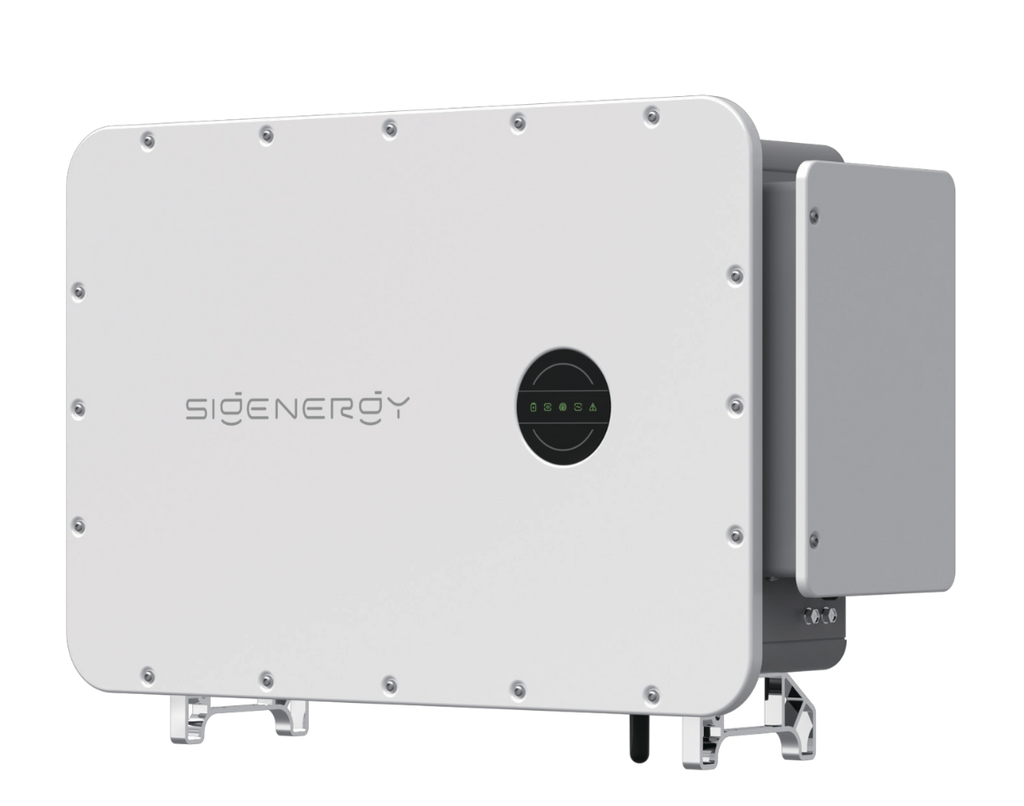

Sigenergy Sigen PV Inverter 100M1-HYA (100kWn) (11010134)

https://pnp.energy/web/image/product.template/5959/image_1920?unique=bf3e44c Sigenergy P&P3870

• Potencia nominal de salida en CA: 100 kW (380/400 V, 50/60 Hz) • Número de MPPT: 8 entradas independientes • Rango de voltaje de entrada en MPPT: 160–1000 V • Eficiencia máxima: 98,3%

Not Available For Sale

  • Power (Wn)
  • singlephase/threephase
  • Function
  • Inverter / solar panel / Battery
  • Marca

This combination does not exist.

Contact Us
Power (Wn): 100 K
singlephase/threephase: Trifásico
Function: Híbrido
Inverter / solar panel / Battery: Inversor
Marca: Sigenergy
Technical guide

Compatibility and configuration

Key data for the Sigen PV 100M1-HYA, a high-power three-phase hybrid inverter.

PV input
Up to 200 kWp · 1,100 V · MPPT 160-1,000 V
MPPT and strings
8 MPPT · 2 strings per MPPT
PV current
40 A maximum and 60 A short circuit per MPPT
Storage
SigenStack BAT 12.0 · 4-21 modules
Charge and discharge
Up to 110 kW · 180 A
AC output
100 kW nominal · 110 kVA maximum
Battery ready
Future PV + BESS upgrade using SigenStack
Protection and communication
IP66 · -30 to 60 °C · WLAN, Ethernet, RS485 and CommMod
Weight
78 kg

Technical frequently asked questions

Which battery configuration is supported?

The data sheet specifies SigenStack BAT 12.0, 4 to 21 modules and up to 180 A. The BC controller specified by Sigenergy must be selected.

How are PV inputs sized?

It has 8 MPPT with two strings per MPPT, 40 A maximum and 60 A short-circuit current per MPPT.

What must be checked before installation?

Check the data-sheet revision, Gateway, grid voltage, battery/BC version, protection devices, conductor sizes and mounting conditions.

Official sources published on this product page: data sheet · installation manual. Specifications are subject to the conditions in the linked documents. The linked data sheet is marked preliminary where stated by the manufacturer.
