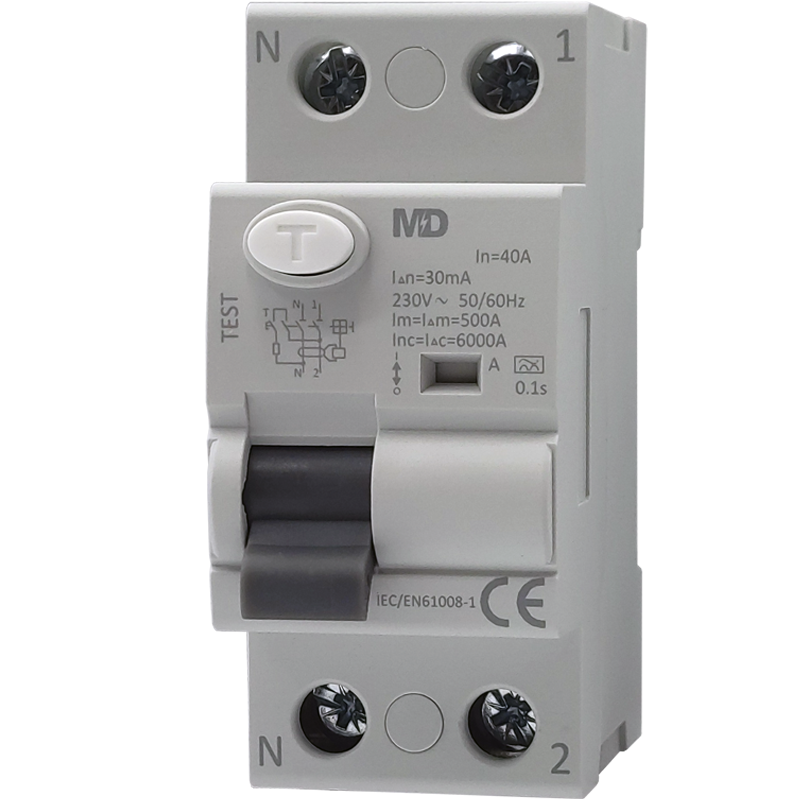

Differential Switch. RCCB 2P 40A 30mA type A (VE Charger suggestion)
P&P3842Interruptor Diferencial. RCCB 2P 40A 30mA type A (sugerencia Cargador VE)
Technical guide
Compatibility and configuration
Official data for RCCB 2P 40A 30mA Type A: two-pole Type A residual-current circuit breaker
Poles
2
Voltage
230 Vca · 50/60 Hz
Current
40 A
Residual current
30 mA
Type
Type A
Uimp
4 kV
Maximum cable
25 mm²
Dimensions
2 DIN · 82 × 36 × 73 mm · IP20
Weight
0.2 kg
Technical frequently asked questions
What is its function?
It protects the installation against the documented electrical risks.
Which system is it compatible with?
Size it to the grid, protected equipment and data-sheet topology.
What must be checked before installation?
Check voltage, current, poles, protection, conductor size and torque.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
