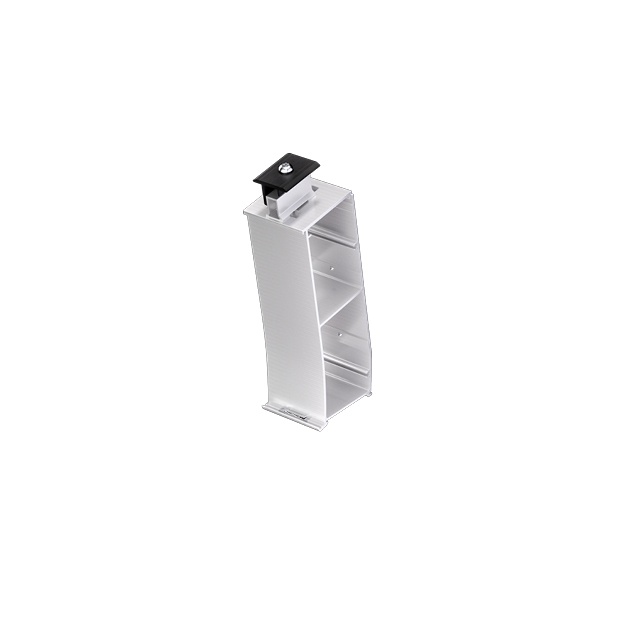

FR Ascent pata trasera 10º (RL-ACV11/G/10)
Clenergy P&P3806FR Ascent pata trasera 10º (RL-ACV11/G/10)
Technical guide
Compatibility and configuration
Official data for Ascent RL-ACV11/G/10: component for the Ascent 1.1 ballasted system
Reference
RL-ACV11/G/10
Type
Rear leg
System
PV-ezRack Ascent 1.1
Orientation
North-south or east-west
Nominal length
According to configuration
System angle
10°
Application
Ballasted flat roof
Material
Aluminium and system components
Installation
Click-in assembly according to the guide
Technical frequently asked questions
What is its function?
It performs the structural function indicated by its reference within Ascent 1.1.
Which system is it compatible with?
Use it only within the engineered Ascent configuration.
What must be checked before installation?
Check orientation, angle, wind/snow loads, ballast, module and torques.
Official sources published on this product page: system documentation · installation manual. Specifications are subject to the conditions in the linked documents. The linked source does not publish a specific weight for this item, so structured weight is omitted.
