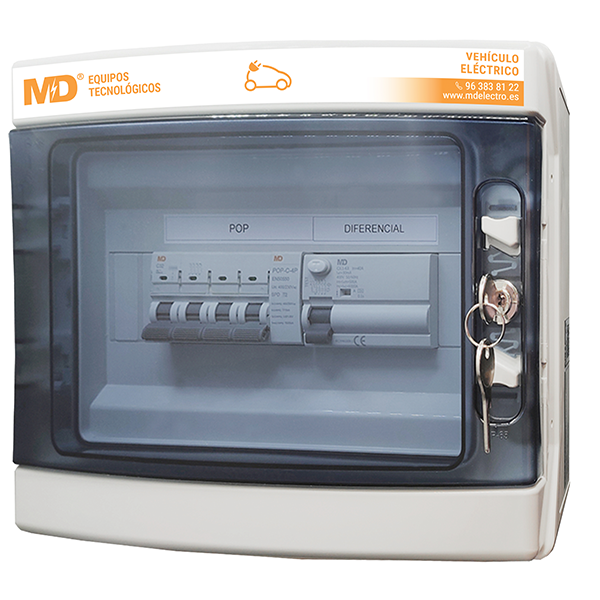

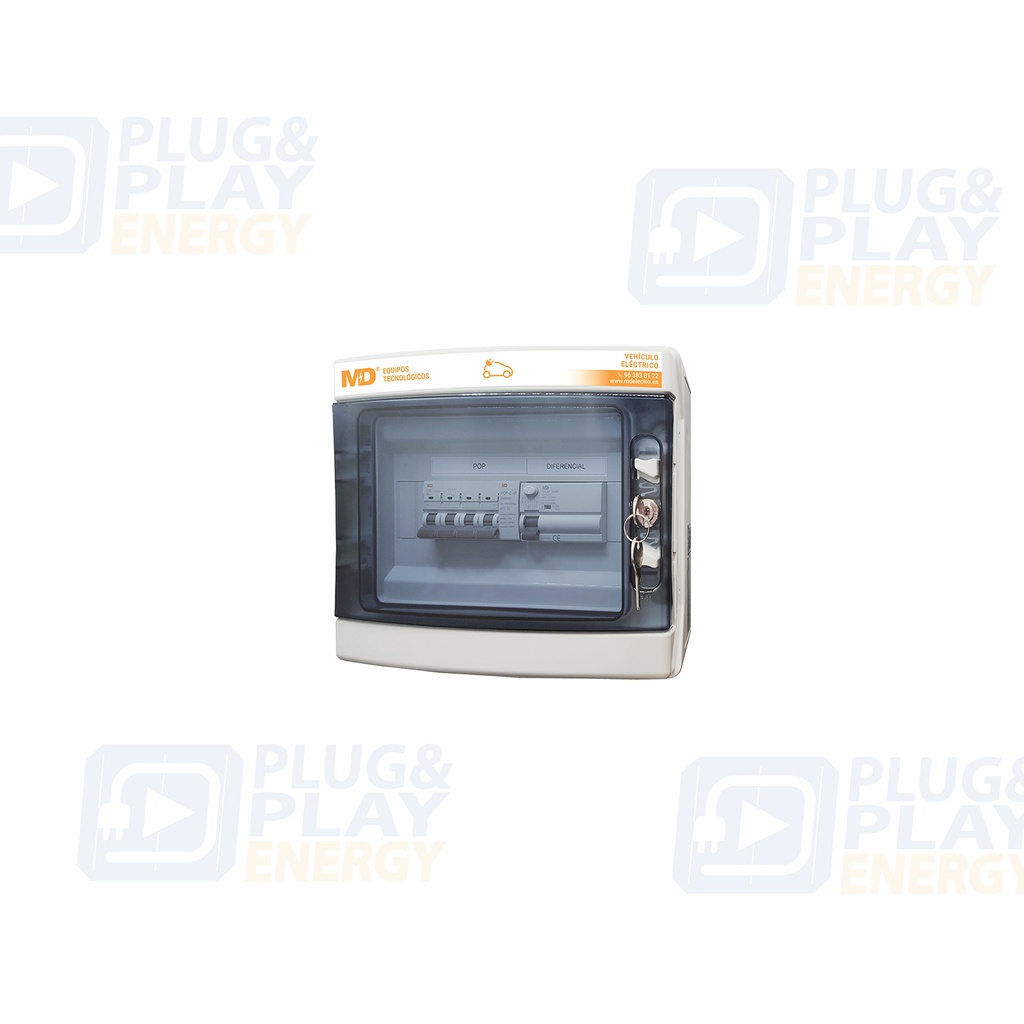

SPVE 4-32/L (for VE chargers up to 11kW)

Cuadro de Protección recarga de vehículos eléctricos acorde ITC-BT-52. 4 Polos. 32A, protección sobretensiones permanentes POP 50:550 y transitorias.

This combination does not exist.

Technical guide

Compatibility and configuration

Official data for SPVE 4-32/L: protection board for an electric-vehicle charging station

Grid

Three-phase

Power

22.1 kVA

Current

32 A · 230/400 Vca

Circuit breaker

4 poles · C curve · 10 kA

RCD

4 poles · 40 A · 30 mA Type A

Surge protection

Type 2 · 15 kA

Protection

ABS · IP65

Dimensions

12 DIN · 246 × 310 × 148 mm

Weight

3 kg

What is its function?

It protects the installation against the documented electrical risks.

Which system is it compatible with?

Size it to the grid, protected equipment and data-sheet topology.

What must be checked before installation?

Check voltage, current, poles, protection, conductor size and torque.

Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
