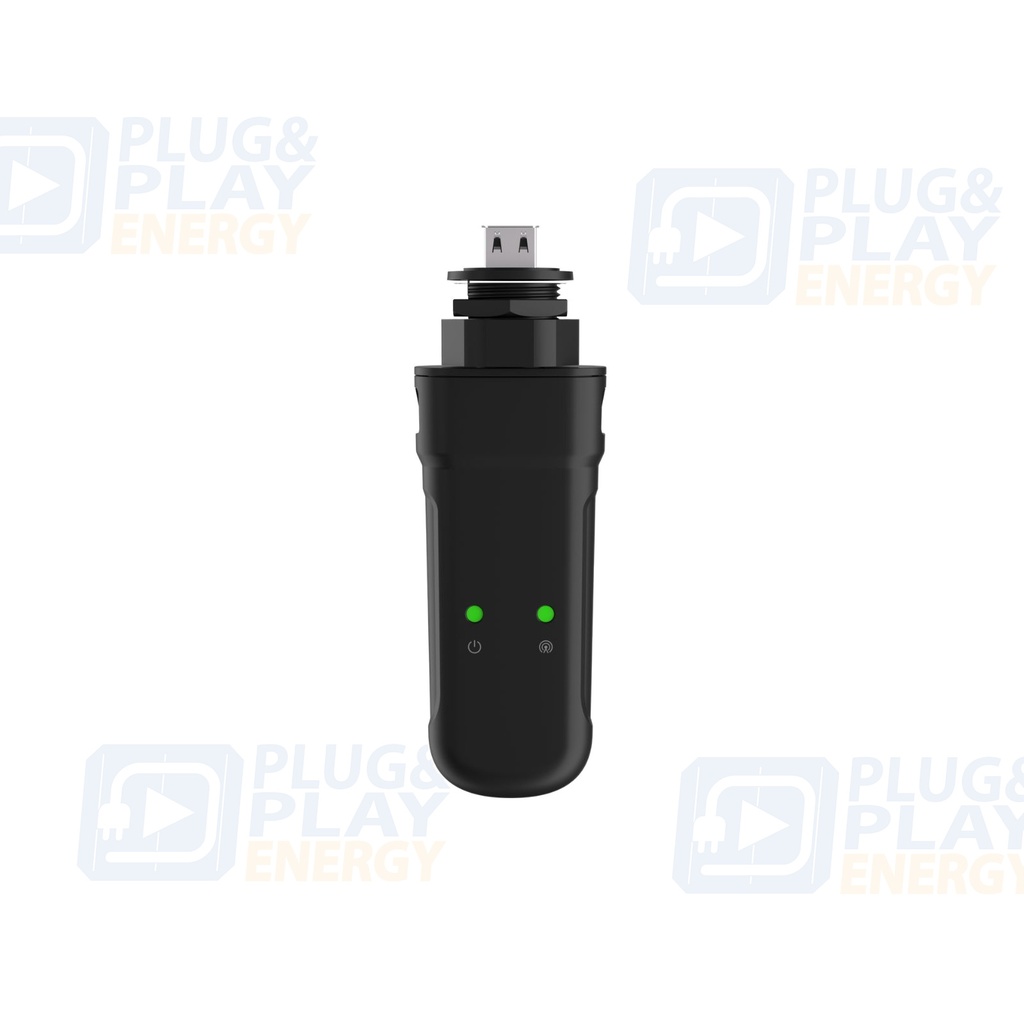

Sigenergy Sigen ComMod 4G (11170009)
Sigenergy P&P3455● Clasificación de protección IP66, más fiable ● Plug & play, fácil de usar ● Compatible con comunicación 2G / 3G / 4G
| Marca: Sigenergy |
Technical guide
Compatibility and configuration
Official data for Sigen CommMod 4G: plug-in cellular module for Sigenergy controllers and inverters
Communication
2G / 3G / 4G
Interface
USB · plug-and-play
SIM
Micro-SIM 12 × 15 mm
LTE bands
FDD B1/3/7/8/20/28A · TDD B38/40/41
Protection
IP66
Dimensions
52 × 112 × 33 mm
Power
<4 W típico
Temperature
-30 a +60 °C
Weight
0.09 kg
Technical frequently asked questions
What is its function?
It provides mobile communication to compatible Sigenergy equipment.
Which system is it compatible with?
Compatible with Sigen Energy Controller and Sigen Hybrid Inverter.
What must be checked before installation?
Check coverage, bands, Micro-SIM, orientation and firmware compatibility.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
