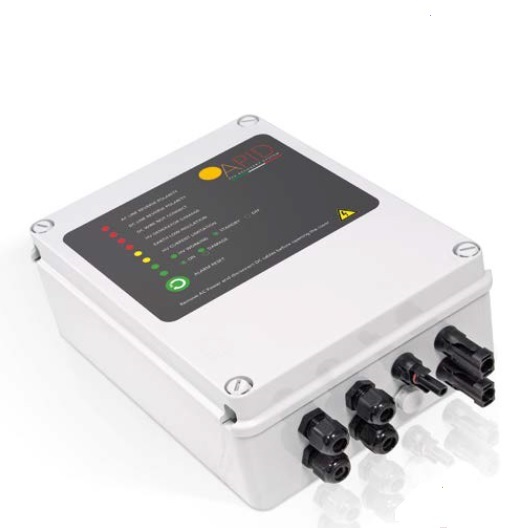

APID AntiPID Box 3 MPPT (P-Type modules with negative ground)
P&P2987Detiene las pérdidas de potencia Previene el efecto PID Mide la resistencia de aislamiento. IP56 Conexión MC4 Salida para 3 MPPT, cadenas de hasta 1000V con negativo común 3 salida de relé
Documents
Compatibility and configuration
Verified data for APID Caja AntiPID 3 MPPT (módulos P-Type con negativo a tierra).
System or family
APID
Documentary scope
APID unit for P-Type modules; 3-MPPT commercial configuration
Application
PID degradation prevention and recovery
Function
Generates night-time recovery voltage and measures insulation
Integration
RS232/485 · Modbus · APID Monitor software
Installation
In parallel with PV strings; per diagram and grounding
Documented data
90-275 VAC · 400 VDC output · ≤8 mA · IP56 · 240×190×90 mm
Pre-installation check
Module type, ground polarity, MPPT, insulation and topology
Structured weight
0,95 kg
Technical frequently asked questions
What does the official source validate?
It validates only the displayed data and family context; any limitation is stated explicitly.
Have exact contents or compatibility been inferred?
No. When the source is family-level, exact contents, variant and compatibility must be confirmed.
What must be checked before installation?
Reference, version, bill of materials, topology, protection, loads and current documentation.
Official source consulted: official technical documentation. Specifications are subject to the conditions in the linked document.
