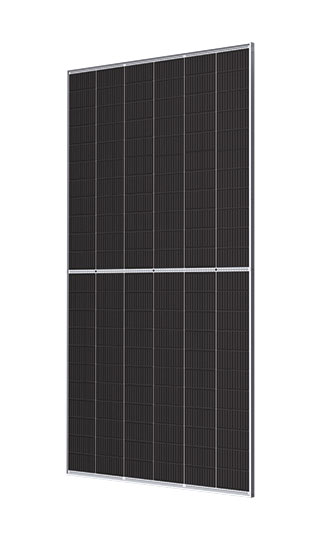

Trina 550W TSM-DE19
Trina P&P2859Maximum Power Current-IMPP (A) 17,4 A Maximum Power Voltage-VMPP (V) 31,6 V Posibilidad de series hasta 27 módulos (14.850Wp, entrada máxima 1100V), menor cableado, Reducido BOS 21% de eficiencia
| Power (Wn): 550 W |
| Inverter / solar panel / Battery: Módulo |
Technical guide
Compatibility and configuration
Official data for Trina Vertex TSM-DE19 550 W: PV module with electrical ratings at STC
Power
550 Wp · 0/+5 W
Efficiency
21,0%
Vmp / Imp
31,6 V / 17,40 A
Voc / Isc
37,9 V / 18,52 A
Dimensions
2.384 × 1.096 × 35 mm
Maximum system
1.500 V CC
Protection
Caja de conexiones IP68
Warranty
Warranty under manufacturer terms
Weight
28.6 kg
Technical frequently asked questions
What is its function?
It generates PV energy at the published ratings.
Which system is it compatible with?
It requires compatible mounting, inverter and connectors.
What must be checked before installation?
Check cold Voc, Isc, MPPT, loads, clamps and connectors.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
