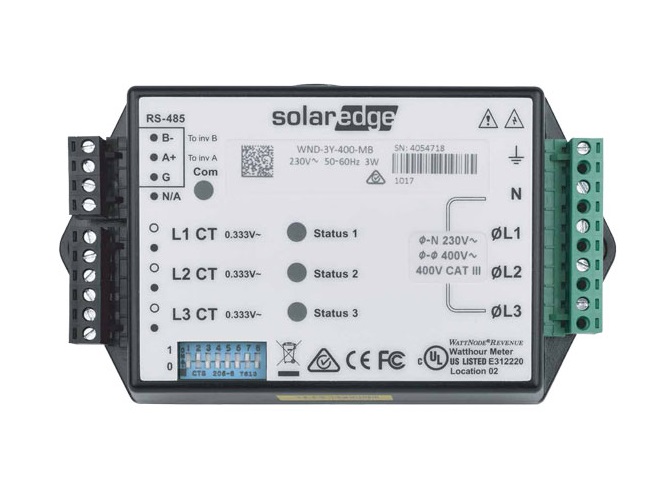

ELECTRICITY METER SE-WND-3Y-400-MB-K DIN-RAIL
P&P1724ELECTRICITY METER SE-WND-3Y-400-MB-K DIN-RAIL
Compatibility and configuration
Official data for SolarEdge SE-WND-3Y400-MB-K1: three-phase Modbus meter for current-transformer metering
Grid
184-264,5 V L-N · 320-460 V L-L
Frequency
50/60 Hz
Communication
RS485 Modbus · 120 Ω termination
Accuracy
±1%
Application
Production, consumption and export limitation
Current transformers
70 / 50 / 100 / 250 / 1.000 A
Mounting
DIN rail or wall
Dimensions
85 × 153 × 38 mm
Weight
0.31 kg
Technical frequently asked questions
What is its function?
It provides the interface or accessory function described by the manufacturer.
Which system is it compatible with?
Use it with expressly compatible equipment and connections.
What must be checked before installation?
Confirm model, connections, configuration and mounting conditions.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents.
