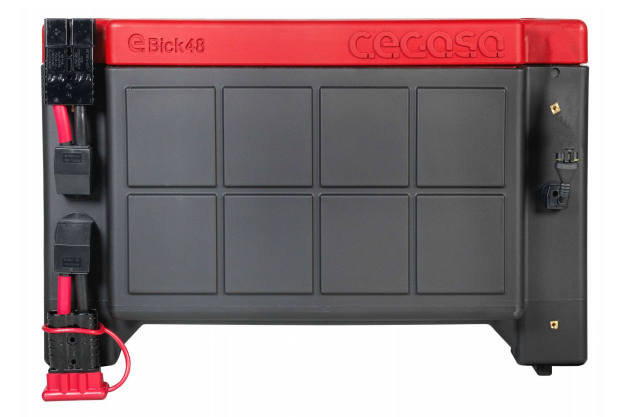

Cegasa eBick Ultra 175 -48280M (13.4kWh)
Cegasa P&P1491La batería eBick Ultra 175 es la respuesta de Cegasa a los instaladores que buscan una batería preinstalada y autogestionable, “enchufar y listo”. Es ideal para sustituir las baterías de plomo en instalaciones existentes, así como para nuevas instalaciones de autoconsumo y off-grid con necesidades entre 13 y 54 KWh. La eBick Ultra 175, ofrecer un grado de protección IP30, es apilable hasta 2 alturas y hasta 8 conexiones en paralelo en condiciones controladas para la comunicación.
| Batería: Litio |
| Inverter / solar panel / Battery: Batería |
Compatibility and configuration
Official data for Cegasa eBick Ultra 175 48 V 280 Ah: 13.5 kWh LFP module for low-voltage storage
Energy
13,5 kWh
Capacity
280 Ah
Voltage
48 V nominal · 43-52.2 V
Current
175 A maximum continuous charge
Communication
CAN Bus
Protection
IP30 · integrated BMS
Dimensions
765 × 600 × 405 mm
Compatibility
Documented Victron, SMA, Studer, GoodWe, Solis and Ingeteam
Weight
105 kg
Technical frequently asked questions
What is its function?
It stores energy and protects cells through its BMS.
Which system is it compatible with?
Configure it only with approved inverters and controllers.
What must be checked before installation?
Check voltage, current, CAN, mounting and handling equipment.
Official sources published on this product page: official manual. Specifications are subject to the conditions in the linked documents.
