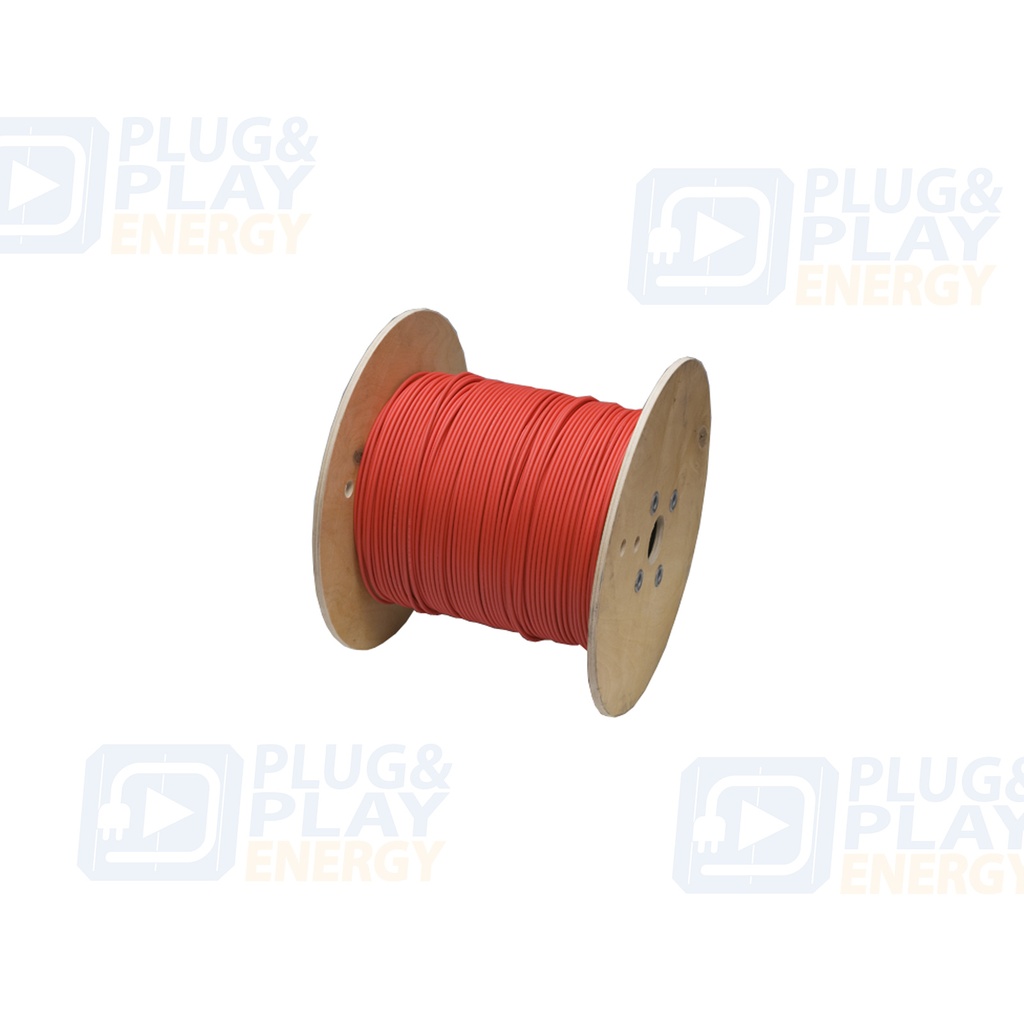

Red solar cable 4 mm (500m)
P&P1332Rango de temperatura de -40 ° C a + 90 ° C Máx. Temperatura en el conductor + 120 ° C (20.000 h) Tensión nominal U0 / UAC1,0 / 1,0 kVDC 1,5 / 1,5 kV Resistencia a la intemperie y a los rayos UV
Documents
Technical guide
Compatibility and configuration
Official data for KBE Solar DB+ 4 mm² rojo: 500 m roll of H1Z2Z2-K solar cable
Type
H1Z2Z2-K · EN 50618
Conductor size
4,00 mm²
Conductor
Class 5 tinned copper · 56 × 0.31 mm
Outer diameter
5,50 ±0,2 mm
Resistance
≤5,09 mΩ/m
Linear mass
aprox. 56 g/m
Commercial length
500 m
Temperature
-40 a +120 °C según condición
Colour
Red
Technical frequently asked questions
What is its function?
It carries direct current in PV installations.
Which system is it compatible with?
Use it with compatible connectors, conductor size and voltage.
What must be checked before installation?
Check voltage drop, bend radius, temperature, connectors and polarity.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The source publishes about 56 g/m of cable but not the packed roll weight; Product.weight is omitted.
