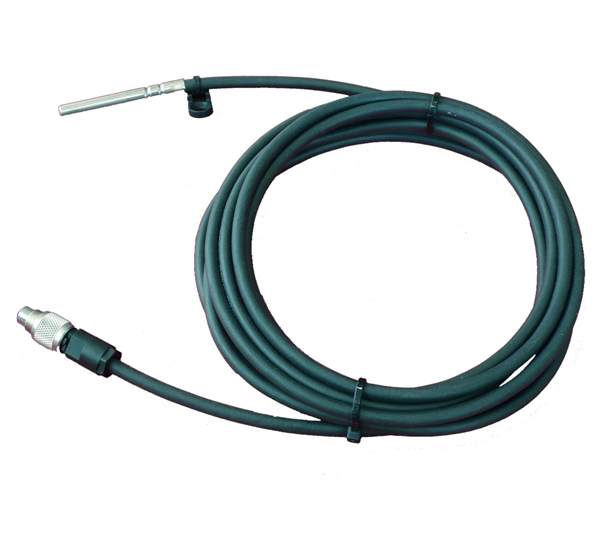

Tamb-Si for Si-RS485TC-2T-V (IMT)
P&P1019Sensor de temperatura ambiente para conectar a Si-RS485TC-2T-v, Pt1000 clase A, incl. Cable de 3 my conector enchufable (IP67)
Compatibility and configuration
Official data for M&T Tamb-Si: external ambient-temperature sensor for Si-RS485TC-2T-v
Type
Pt1000 · 1/3 class B
Temperature
-40 a +85 °C
Housing
Tubo INOX Ø6 × 50 mm
Cable
3 m · LiYC11Y · 4 × AWG 26
Connector
Binder serie 712
Protection
IP67
Compatibility
Si-RS485TC-2T-v
Installation
Avoid direct sun and rain
Pinout
Pin 1/2 Pt1000 · pin 3 shield
Technical frequently asked questions
What is its function?
It provides the interface or accessory function described by the manufacturer.
Which system is it compatible with?
Use it with expressly compatible equipment and connections.
What must be checked before installation?
Confirm model, connections, power, configuration and mounting conditions.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The source does not publish an unambiguous total weight for this item, so structured weight is omitted.
