KIT 15V3 (3 modules)
P&P0630Soporte inclinado abierto 30º35º para fachada
Documents
Compatibility and configuration

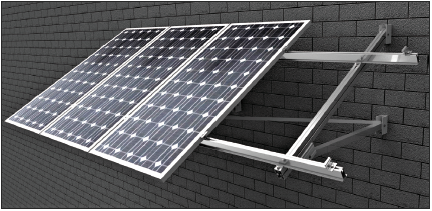

Official data for Kit 15V3: tilted mounting structure for three modules in portrait orientation
Type
Open tilted support for façade
Modules
3 · portrait orientation
Standard angles
30° / 35°
Module format
60/72 cells · 1,650/2,000 × 1,000 mm
Material
EN AW 6005A T6 aluminium · A2-70 stainless steel
Installation
Wall anchoring with M10 · screws not included
Support spacing
Maximum 2,500 mm
Design wind
26 m/s · Eurocode
Warranty
25 years
Technical frequently asked questions
What is its function?
It supports three tilted modules on a vertical façade.
Which system is it compatible with?
It is sized with G2 rails and modules in the documented format.
What must be checked before installation?
Check wall, anchors, wind, spacing and module dimensions.
Official sources published on this product page: data sheet. Specifications are subject to the conditions in the linked documents. The source does not publish an unambiguous total weight for this item, so structured weight is omitted.
